WGI-D22-INST-10-06
INSTALL INSTRUCTIONS WGI-D22
INTERIOR WINDOW GUARDS
2005-2006 DODGE MAGNUM
TOOLS REQUIRED:
Power drill
Drill bits – 1/8”, 5/32”
T-25 tamperproof torx bit
Phillips screwdriver
HARDWARE:
QTY DESCRIPTION
PART
#
1 Driver
Side
Window Guard
WGI-D22-1
1
Passenger Side Window Guard
WGI-D22-6
2
Upper mounting bracket
WGI-MB-12-90
8
#10 x ¾” Sheet metal screw
GSM33195
8
#10 x ½” Sheet metal screw
GSM33194
4
¼” x ½” T-25 Tamperproof bolts
GSM34190
4
¼” Flat Washers
GSM31005
Always
!
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
SUBASSEMBLY:

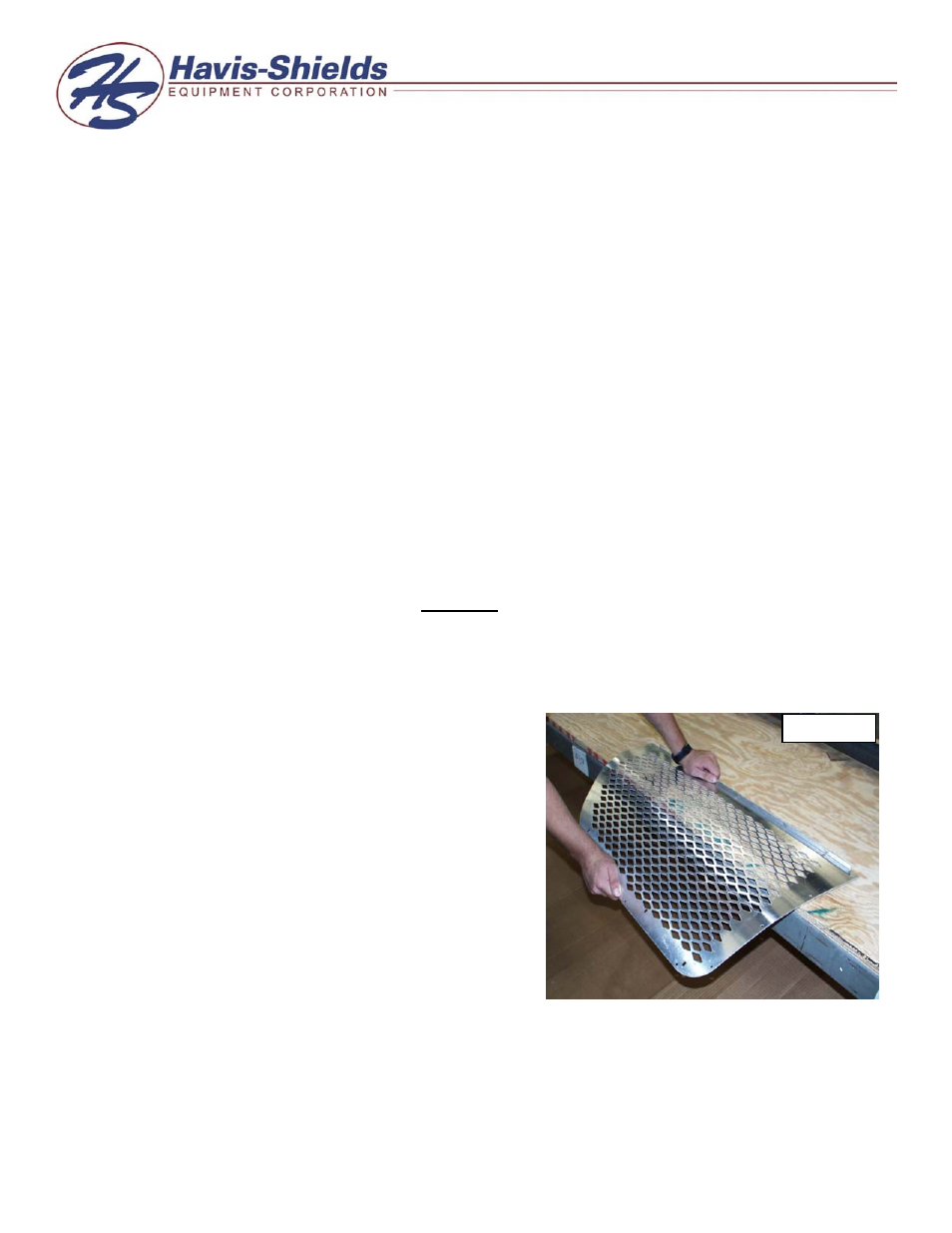

1. Bend window guard so it contours the door as
shown in photo #1.
2. Determine the proper window guard for each
window.
3. If installing aluminum door panels refer to those
instructions at this time. They will need to be
installed first.
Photo 1
