Use a small amount of pipe compound or teflon tape on the connection
threads to prevent leaks. Tighten using a wrench (not supplied).
Caution: Make sure all connections are tight to avoid fuel leaks.
3.
Start the engine and immediately check for fuel leaks. If fuel leaks are found,
turn engine off and fix leaks.
4.
Read the pressure off the Pressure Gauge (1).
5.
Turn off the engine and remove the keys from the ignition.
6.
Wrap a cloth around the hose connection point before relieving the pressure
from the fuel line, and remove testing components.
7.
Reconnect vehicle’s fuel injection line.
8.
Wipe up any spilled fuel. Dispose of fuel-soaked rags in a fireproof container.
9.
Start the engine and check for leaks. Fix leaks if found.
10. Clean and store Fuel Injection Test Kit components and place in the plastic kit
bag.

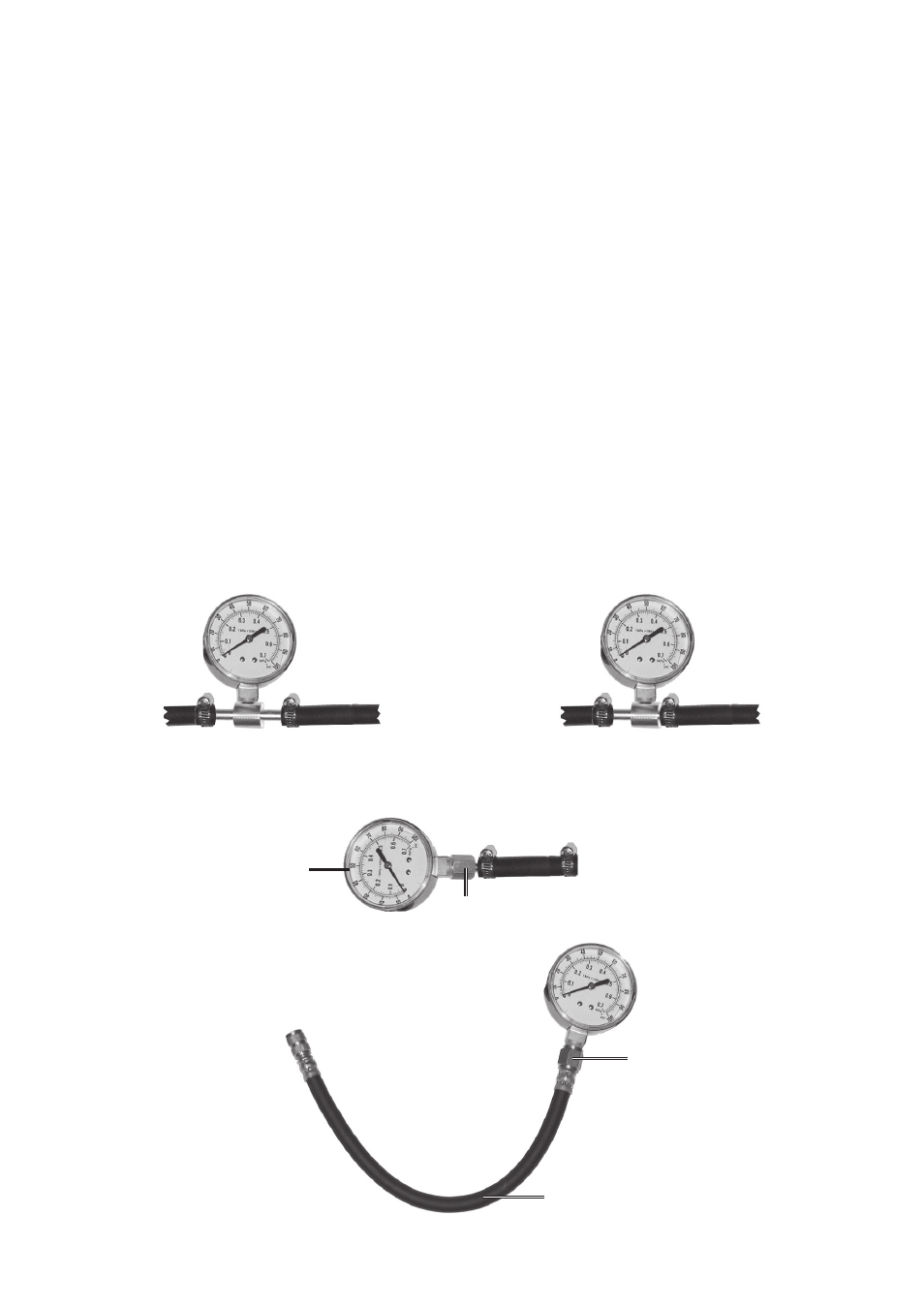

1/4” Hose (5)
to Fuel Pump
Fuel Line
From Engine
3/8” Hose (6)
to Fuel Pump
Fuel Line
From Engine
Connect Directly to
Special Test Outlet on
Engine
Cadillac
®
- Bendix
®
Type Hookup
Screw on Female Swivel
Coupling to Engine Test
Fitting
Typical Hookup
VW
®
Hookup
1/4” Hose (5)
Fitting (3)
Fitting (2)
Flex Hose (9)
Pressure Gauge (1)
