SECTION 6 − OPERATION

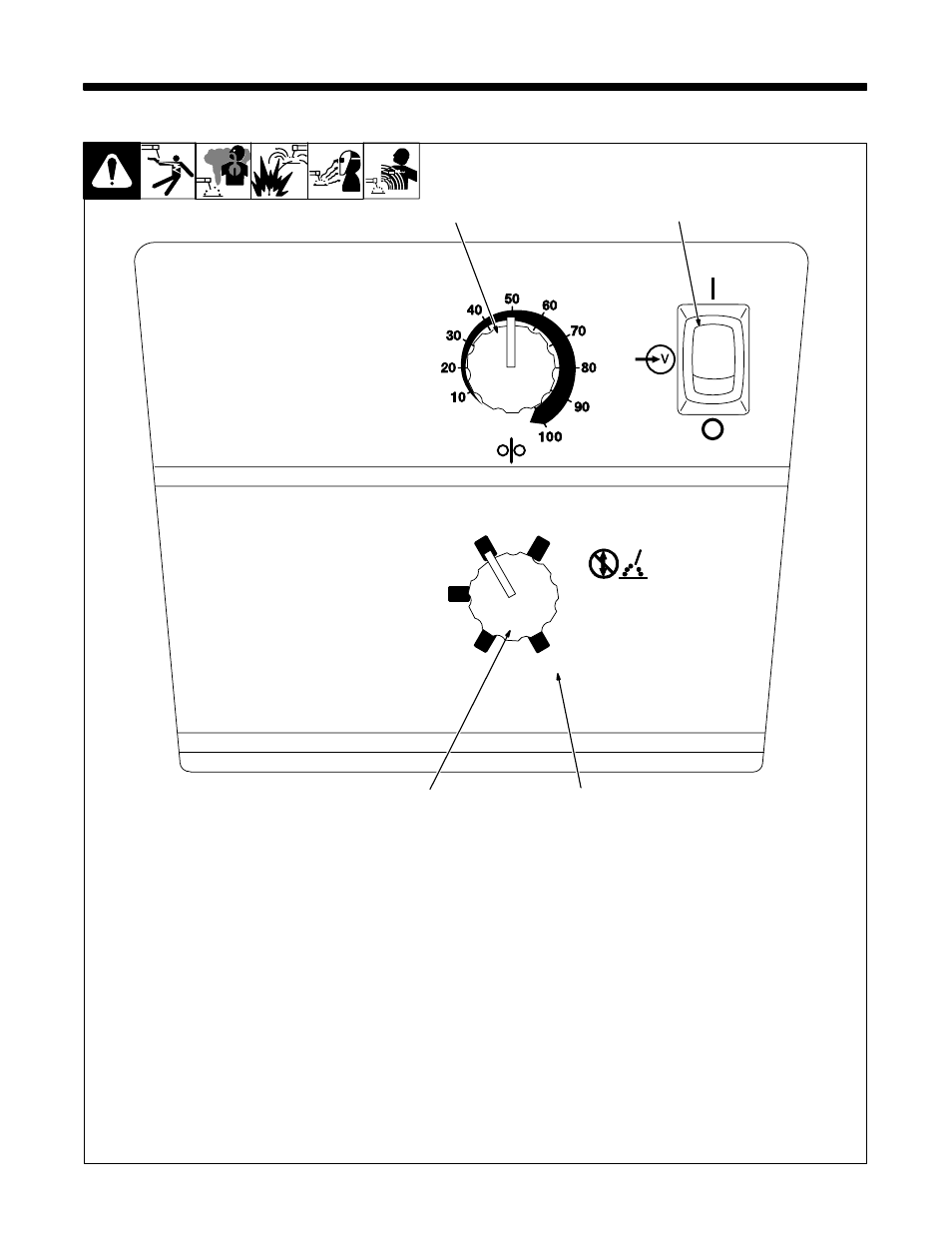

6-1. Controls

1

Wire Speed Control

Use control to select a wire feed speed. As

Voltage switch setting increases, wire

speed range also increases (see weld

setting label in welding power source or

Sections 6-2 or 6-3, as applicable).

2

Power Switch

3

Voltage Switch

The higher the selected number, the

thicker the material that can be welded

(see weld setting label in welding power

source or Sections 6-2 and 6-3, as

applicable). Do not switch under load.

.

Switch must “click” into detent position
1, 2, 3, 4, or purge for proper contact.

4

Voltage Switch - “Purge” Position

In purge position, fan runs but there is no

weld output or wire feed. Use “PURGE”

setting when adjusting gas flow at the

regulator.

Ref. 217 617-A

2

3

4

P U R G E

1

4

3

2

DO NOT SWITCH
WHILE WELDING
