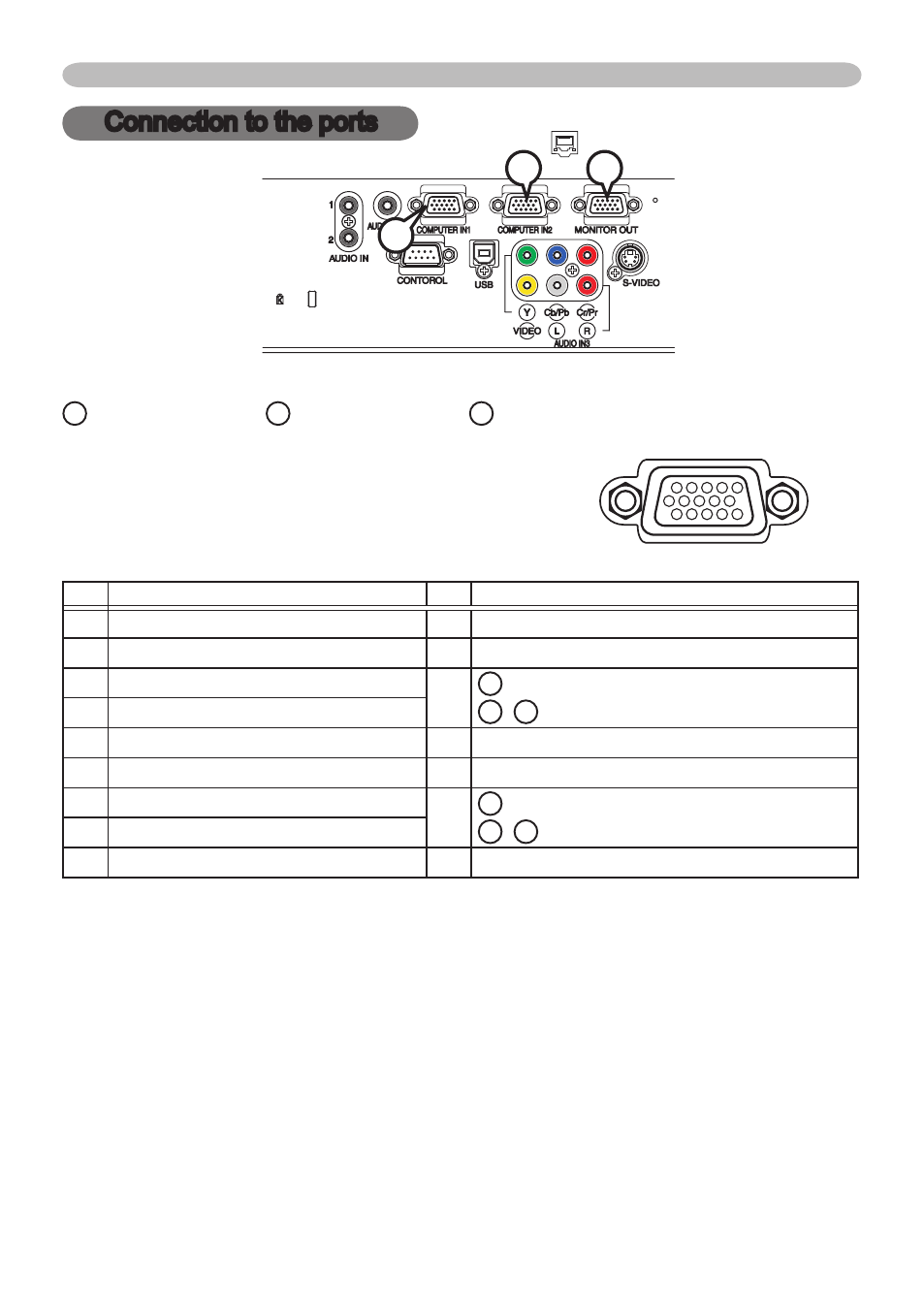

Connection to the ports
A COMPUTER IN1, B COMPUTER IN2, C MONITOR OUT
D-sub 5pin mini shrink jack
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω
terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
Pin Signal Pin Signal
Video Red 0 Ground
2 Video Green (No connection)
3 Video Blue
2
A : SDA (DDC data)
B , C : (No connection) 4 (No connection)
5 Ground
3 H. sync / Composite sync.
6 Ground Red 4 V. sync.
7 Ground Green
5
A : SCL (DDC clock)
B , C : (No connection) 8 Ground Blue
9 (No connection)
- -
