Maintenance
Before performing any maintenance on gun, read all warnings
on front cover of this manual and relieve pressure.
Cleaning/Replacing Filter (5)
1.Relieve pressure. Set trigger lock (2)
2. Disconnect fluid hose from gun at swivel (8).
3. Disconnect trigger guard (19) from guard retainer (10).
4. Unscrew handle (7) from gun (1).
5. Remove filter (5) through top of handle (7).
6. Clean filter (5). Use a soft brush to loosen and remove
excess debris.
7. Insert clean filter (5) into handle (7).
8. Reattach handle (7) to gun (1). Tighten securely.
9. Reconnect trigger guard (19) to guard retainer (10).
Repair
Tools needed:
• 8-inch adjustable wrench
• 1/4-inch nut driver

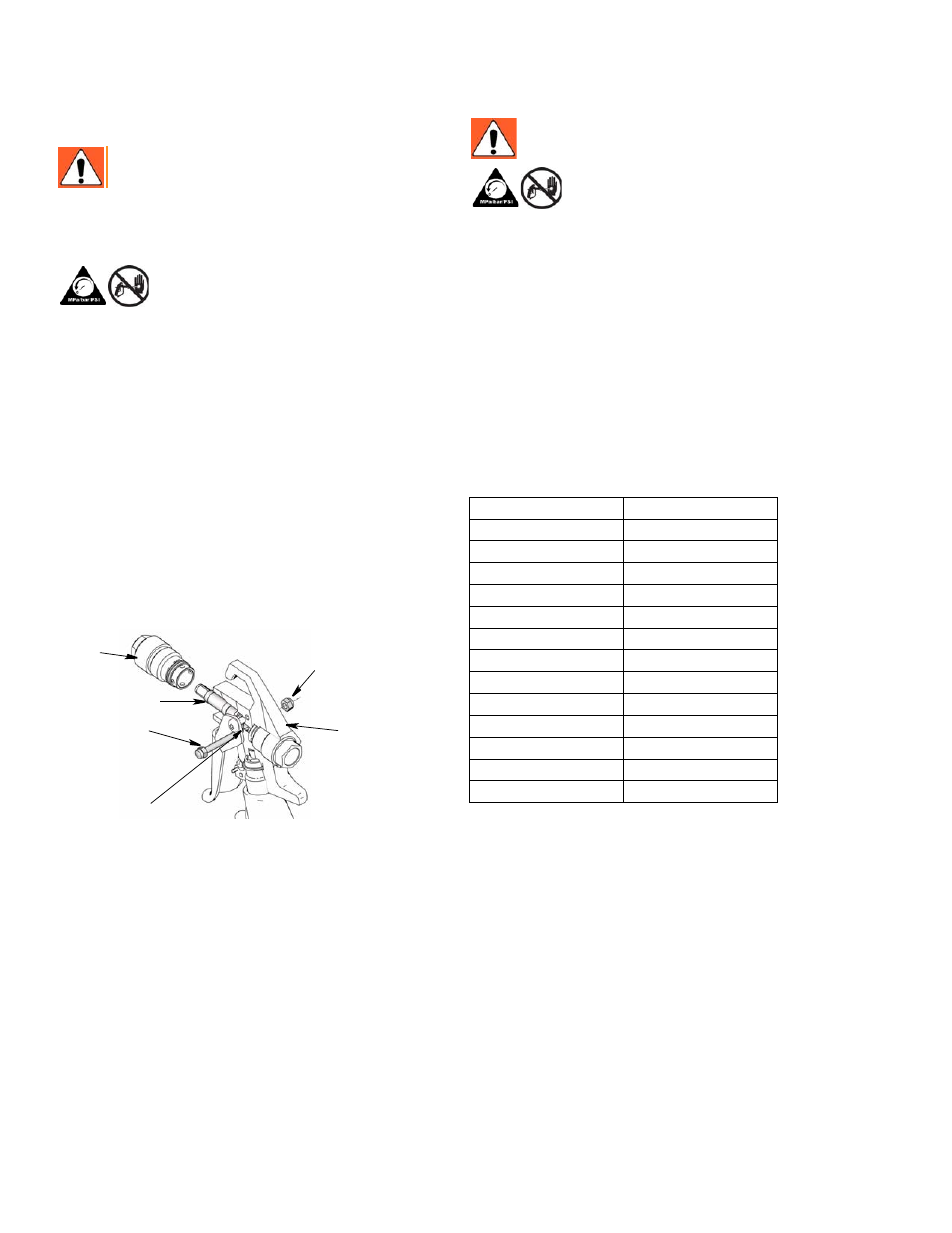

Replacing Needle
1.Relieve pressure. Set trigger lock (2).
2. Remove tip (26) and guard (25) from gun (1).
3. Disconnect fluid hose from gun at swivel (8).
4. Remove nut (17) and trigger pin (16).
5. Unscrew diffuser (15a) from front of gun (1).
6. Remove needle assembly (15b) through front of gun (1).
7. Use a soft brush to clean out internal passages of gun.
8. Grease o-rings of new needle using a non-silicon grease.
9. Guide new needle (15b) through front of gun (1) making
sure the flat sides (a) of the needle assembly face the
sides of gun housing.
10. Install diffuser (15a). Torque diffuser to 26-30 ft-lbs
(35.25 - 43.38 N•m).
11. Replace pin (16) and nut (17).
Translated Manuals
Technical Data
WARNING
16
17
a
ti8510b
15b
1
15a
WARNING
Spanish - 312098 Estonian - 312277
French - 312099 Latvian - 312278
Dutch - 312265 Lithuanian - 312279
German - 312266 Polish - 312280
Italian - 312267 Hungarian - 312281
Turkish - 312268 Czech - 312282
Greek - 312269 Slovakian - 312283
Croatian - 312270 Slovenian - 312284
Portuguese - 312271 Romanian - 312285
Danish - 312272 Bulgarian - 312286
Finnish - 312273 Chinese - 312287
Swedish - 312274 Japanese - 312288
Norwegian - 312275 Korean - 312289
Russian - 312276
Maximum working pressure 3600 psi (248 bar, 24.8 MPa)
Fluid orifice size 0.125 in. (3.18 mm)
Weight (with tip and guard) 22 oz. (630 g)
Inlet 1/4 npsm swivel
Maximum material temperature 120°F (49°C)
Wetted parts Stainless steel, polyurethane, nylon, aluminum, tungsten carbide, solvent resistant elastomer, brass
Noise Level*
Sound power 87 dBa
Sound pressure 78 dBa
*Measured at 3.1 feet (1m) while spraying water-based paint, specific gravity 1.36, through a 517 tip at 3000 psi (207 bar, 20.7 MPa) per ISO 3744
Translated manuals can be requested through a
distributor or at www.graco.com.
