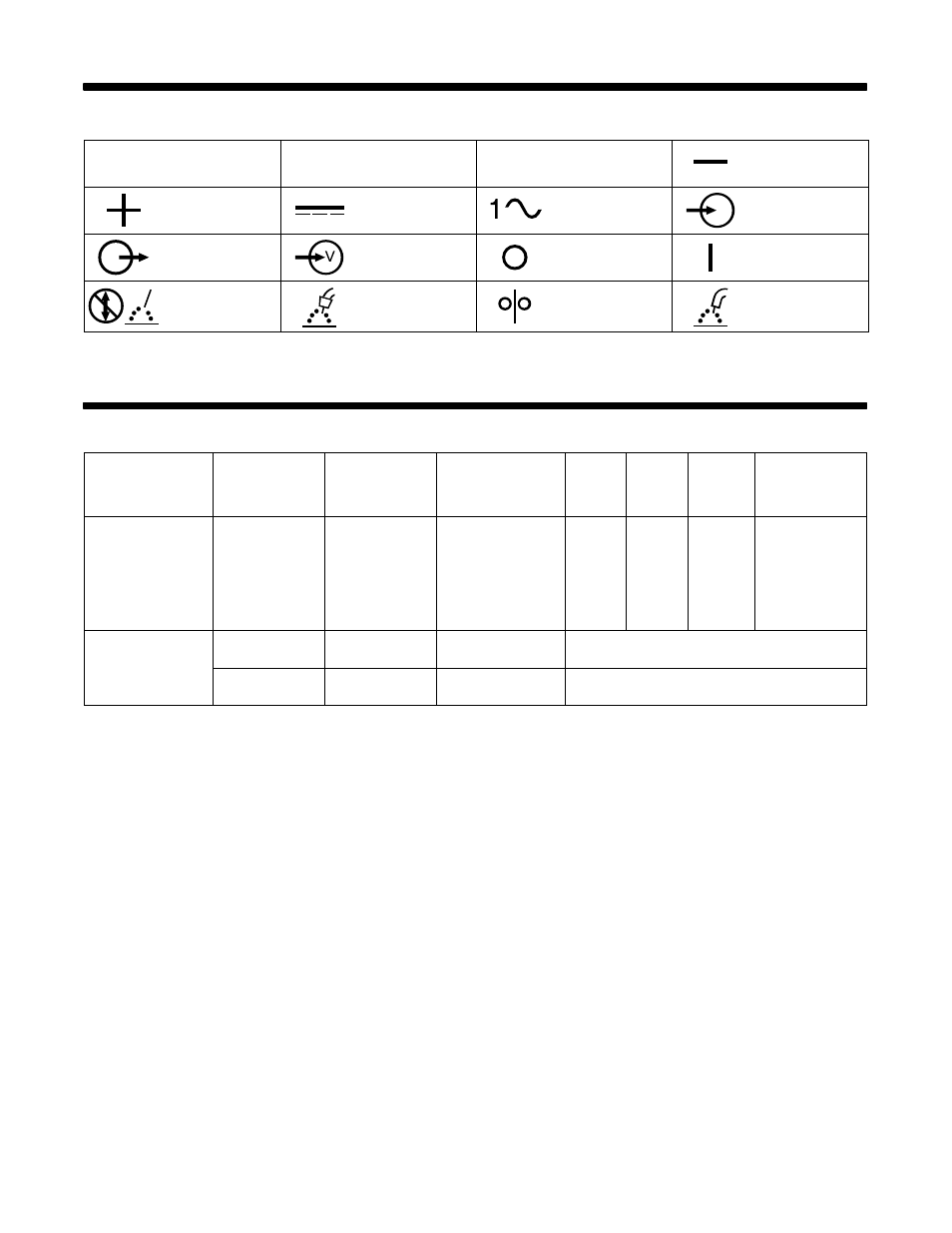

SECTION 3 − DEFINITIONS
3-1. Symbols And Definitions
A
Amperage
V
Voltage
Hz
Hertz Negative
Positive
Direct Current
(DC)
Single Phase Input
Output Voltage Input Off On
Do Not Switch
While Welding Gas Metal Arc
Welding (GMAW)
Wire Feed
Flux Cored Arc
Welding (FCAW)
SECTION 4 − SPECIFICATIONS
4-1. Specifications
Rated Welding
Output
Amperage
Range
Maximum Open-
Circuit Voltage
DC
Amperes Input at
Rated Load Output
230 V, 60 Hz,
Single-Phase
KVA KW
Weight
W/ Gun
Overall
Dimensions
150 A @ 23 Volts
DC, 30% Duty Cycle
25 − 210 34 24 5.33 4.60
76 lb
(34 kg)
Length: 19-1/2 in
(495 mm)
Width: 10-5/8 in
(270 mm)
Height: 12-3/8 in
(314 mm)
Wire Type
And Diameter
Solid/
Stainless
Flux Cored Aluminum
Wire Feed Speed Range
Wire Type
And Diameter
.023 − .035 in
(0.6 − 0.9 mm)
.030 − .045 in
(0.8 − 1.2 mm)
.030 − .035 in
(0.8 − 0.9 mm)
60 − 770 IPM (1.5 − 19.6 m/min) At No Load
40 − 680 IPM (1.0 − 17.3 m/min) Feeding Wire
