Skid shoes and scraper, 50 servicing your snowblower – HONDA HS1132 User Manual
Page 52
50
SERVICING YOUR SNOWBLOWER
SKID SHOES AND SCRAPER
Inspection
A
B
Turn the engine switch to the OFF position, and disconnect the spark
plug cap, so the engine cannot be accidentally started while you are
near the auger.
Raise the auger housing off the
ground.
Track type: Step on the foot pedal
(page
), and raise the auger to
the highest position.
Wheel type: Place a block of wood
under the scraper to support the
auger.

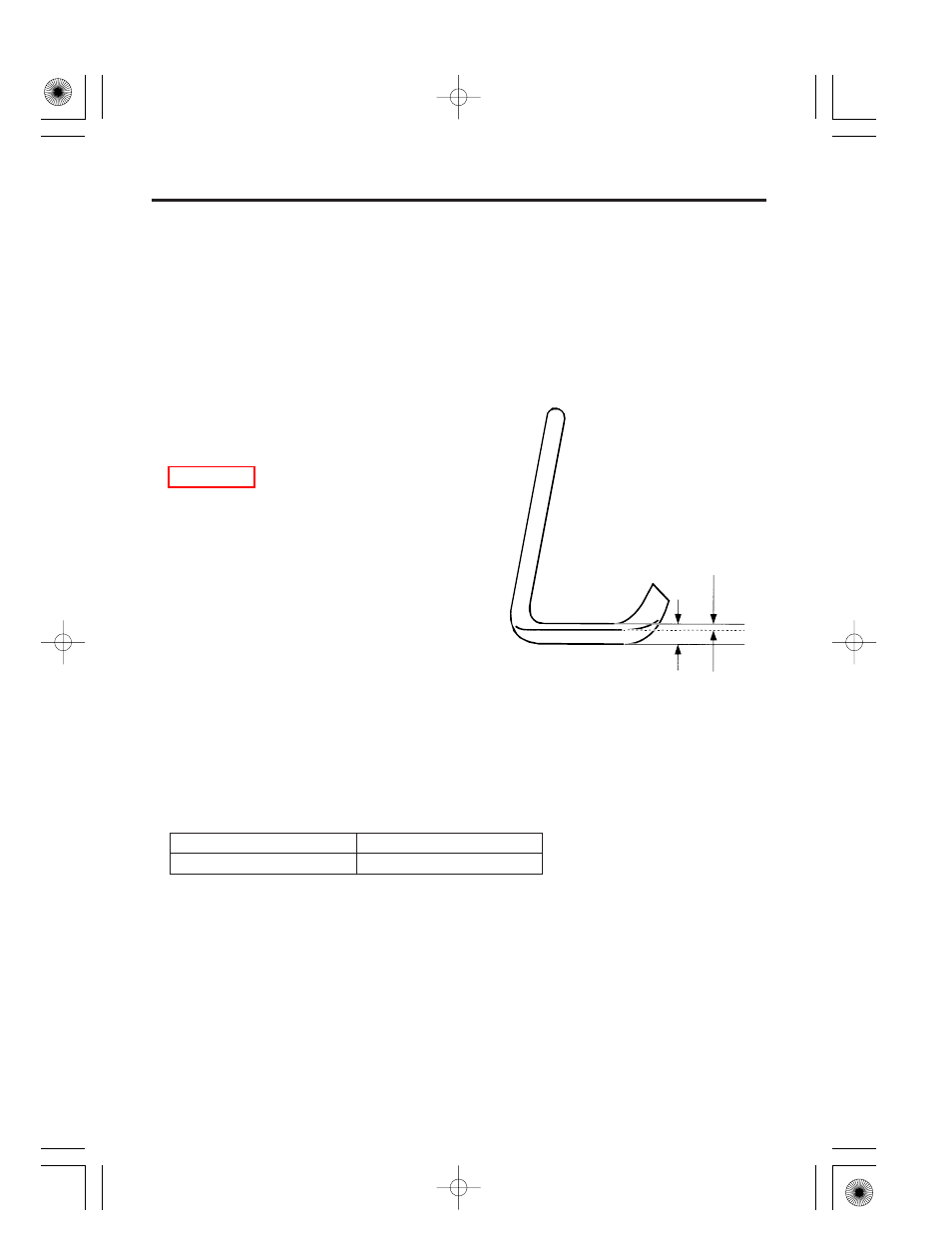

Measure the thickness of the right
and left skid shoes at their
thinnest point.
Replace the skid shoes if they are
worn to the specified service limit.
2.
1.
A=NEW thickness
B=WORN thickness
SKID SHOE SERVICE LIMIT
Rear-mount type
Side-mount type
3/32 in (2.5 mm)
1/16 in (1.5 mm)
06/11/16 10:19:32 31767721_051
