WHAT IS WHAT?

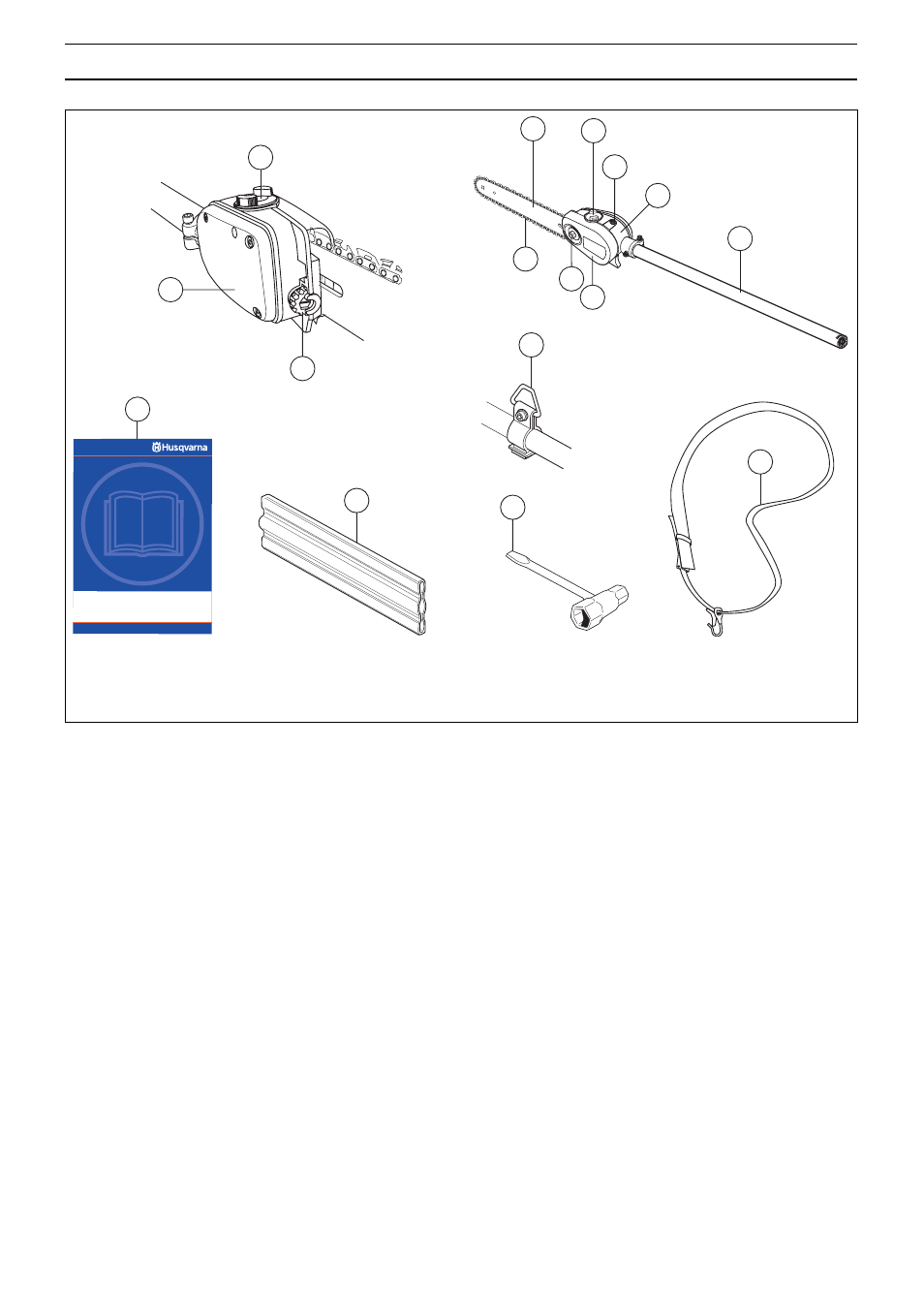

What is what on the saw attachment? (Saw attachment with shaft PA 1100)
11
9
1
2
8
6
5
4
10
7
13
12
14
15
3
11
1
Bevel gear
2
Chain lubrication adjustment screw
3
Shaft (1100 mm)
4
Harness support hook
5
Protective guard for saw chain
6
Bar nut
7
Chain tensioning screw
8
Chain
9
Bar
10 Chain oil tank
11 Filling with chain oil
12 Operator
′
s manual
13 Transport guard
14 Combination spanner
15 Harness
