Rear wall

background image

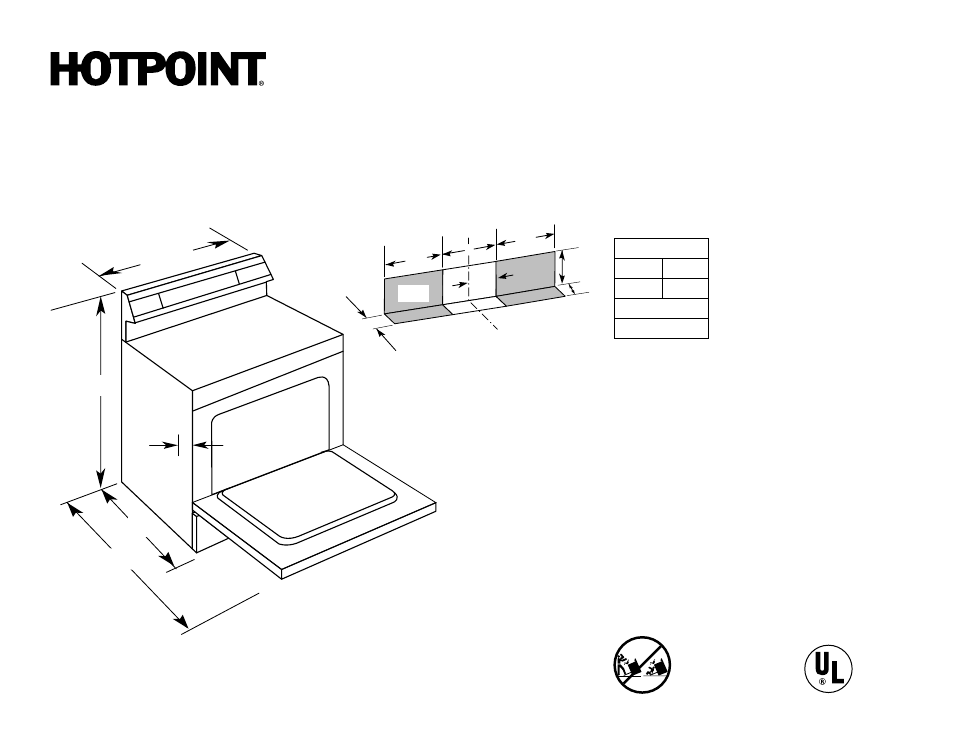

Dimensions (in inches)

Listed by

Underwriters

Laboratories

Note: Check local codes for required breaker size.

Note: 30" Electric Ranges conform to U.L. requirements for

0" spacing from walls below countertops. Allow 1-1/2" spacing

from the side of the range to adjacent vertical walls above the

cooktop surface.
Receptacle Locations: Locally approved flexible service cord

or conduit must be used because terminals are not accessible

after range installation. See shaded area in drawing for location

of electrical outlet box. Recom mended outlet locations allow

range to be installed directly against rear wall.
Installation Information: Before installing, consult installation

instructions packed with product for current dimensional data.

* Dimension from wall to front of closed oven door.

Dimension from wall to the front of closed oven

door handle is 28-1/2".

The range may be placed with

0" clearance (flush) at the back

wall and side walls if the range

side trims extend beyond the

cabinet fronts at least 1/4".

Self-Clean models only

Amp Rating

240V

12.6

208V

9.9

Breaker Size

40 Amps

All Hotpoint ranges are equipped

with an Anti-Tip device. The

installation of this device is an

important, required step in the

installation of the range.

26-3/8*

46-3/8

1/4

29-7/8

46-1/2

CENTER LINE

2-1/4

7-1/2

7-1/2

7

5

2-1/4

3-1/2

REAR

WALL

RB540SP– Hotpoint 30" Free-Standing Electric Range

26-3/8*

46-3/8

29-7/8

46-1/8

1/4

CENTER LINE

2-1/4

7-1/2

7-1/2

7

5

2-1/4

3-1/2

REAR

WALL

* Dimension from wall to front of closed ovendoor.

Dimension from wall to the front of closed oven is 28-1/2"

The range may be placed with 0" clearance

(flush) at the back wall and side walls if the

range side trims extend beyond the cabinet

fronts at least 1/4". Self-clean models only.

Specification Revised 12/08

420408
