7
WING NUT
FRONT HANDLE
BOLT
Fig. 3

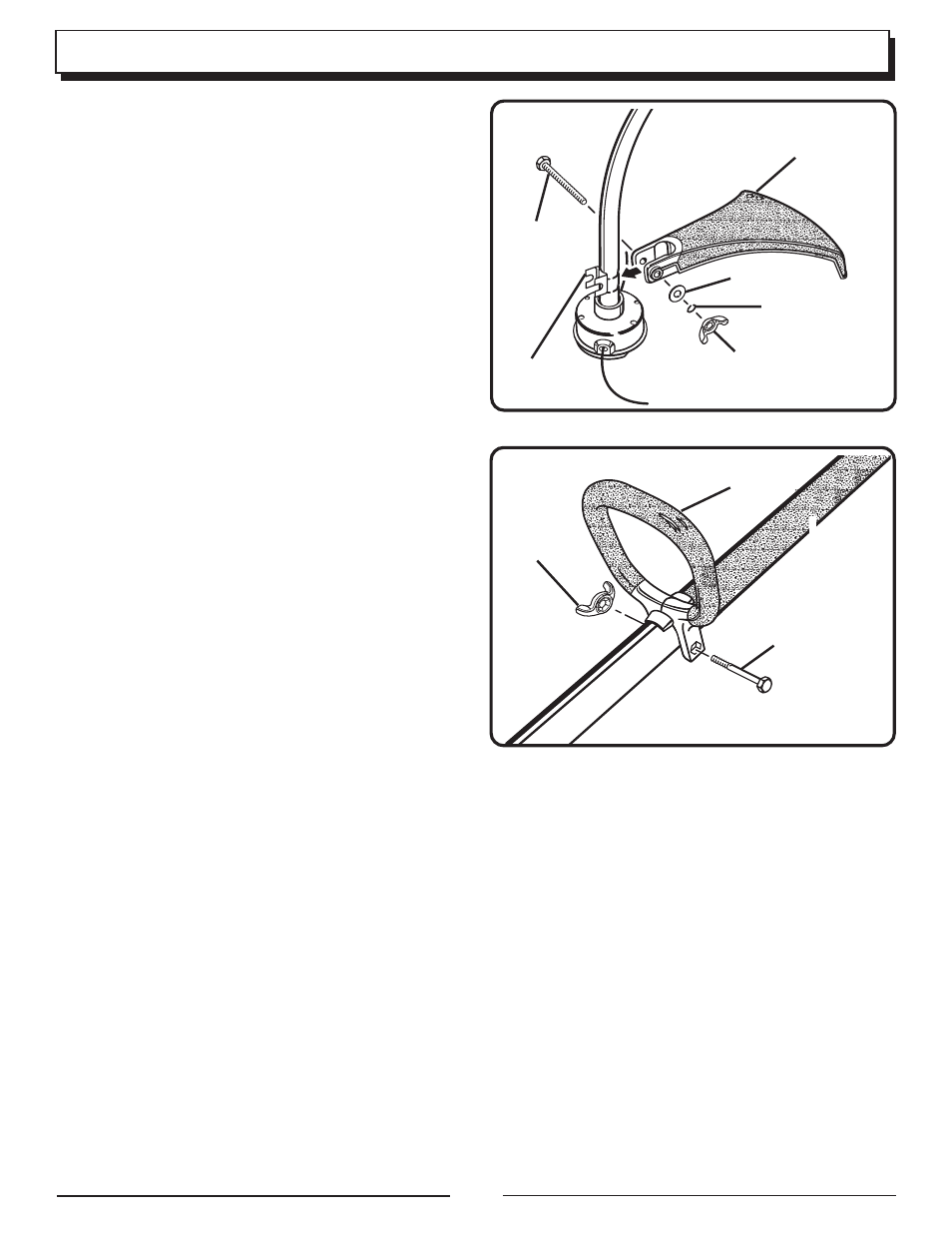

ASSEMBLY INSTRUCTIONS:
GRASS DEFLECTOR
See Figure 2.
1. Remove wing nut, flat washer, lock washer and bolt from
the Owner’s Kit.
2. Place grass deflector over shaft and bracket.
3. Install bolt through the slots in the tabs on grass deflec-
tor and bracket on drive shaft housing.
4. Install flat washer, lock washer and wing nut.
5. Tighten Securely.
FRONT HANDLE
See Figure 3.
1. Remove the front handle, bolt and wing nut from the
Owner’s Kit.
2. Install the front handle onto the top side of the drive
shaft housing and move it to a comfortable position.
3. Place the bolt through the front handle as shown. Then
install the wing nut.
4. Tighten the wing nut securely.
NOTE: Do not attempt to remove or modify the spacer. This
spacer limits the upper position of the handle grip.
See
Figure 3.
GRASS DEFLECTOR
BRACKET
BOLT
FLAT WASHER
LOCK WASHER
WING NUT
Fig. 2
ASSEMBLY
