OVLERQ*C OVLSRQ*C OVLESRQ*F OVLSERQ*F
97793C - 10/01
NOTE: WATER FLOW
DIRECTION
SERVICE STOP
(NOT FURNISHED)
BUILDING WATER INLET
3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY
1/4" O.D. TUBE
WATER INLET
TO COOLER
Parts List
OVL-II
OVL-II
OVL-II
OVL-II
See
Item
Part No.
Description
ER-Q
SR-Q
SER-Q
ESR-Q
Fig.
1
26990C
Bottom Cover Standard Reach
-
1
1
1
23
26988C
Bottom Cover Extended Reach
1
-
1
1
23
2
55836C
Push Arm Actuator
1
1
2
2
20
55991C
Push Arm Actuator A.G.
1
1
2
2
20
51546C
Bubbler S.S.
1
1
2
2
23
3
45396C
Bubbler A.G.
1
1
2
2
23
Bubbler EasyFlex (option)
1
1
2
2
-
4
100322740560
Bubbler Gasket
1
1
2
2
23
5
160270508640
Strainer Plate S.S.
1
1
2
2
23
45400C
Strainer Plate A.G.
1
1
2
2
23
6
101570540560
Drain Gasket
1
1
2
2
23
7
51575C
Packing Ring
1
1
2
2
23
8
110346220550
Drain Nut
1
1
2
2
23
9
101637451550
Friction Ring
1
1
2
2
23
10
161637308640
Drain Plug S.S.
1
1
2
2
23
45398C
Drain Plug A.G.
1
1
2
2
23
11
45683C
Drain Tube
1
-
1
1
23
45682C
Drain Tube
-
1
1
1
23
12
100023340560
Waste Tube Gasket
1
1
2
2
23
13
161570808550
Slip Nut
1
1
2
2
23
14
61314C
Regulator
1
1
2
2
22
15
50986C
Regulator Holder
1
1
2
2
22
27006C
Basin S.S.
1
1
2
2
23
27342C
Basin A.G.
1
1
2
2
23
16
Basin Galaxy Gray Marblyte (option)
1
1
2
2
-
Basin Golden Sand Marblyte (option)
1
1
2
2
-
Basin Black Onyx Marblyte (option)
1
1
2
2
-
27000C
Basin Liner S.S.
1
1
2
2
23
27344C
Basin Liner A.G.
1
1
2
2
23
17
Basin Liner Galaxy Gray Marblyte (option)
1
1
2
2
-
Basin Liner Golden Sand Marblyte (option)
1
1
2
2
-
Basin Liner Black Onyx Marblyte (option)
1
1
2
2
-

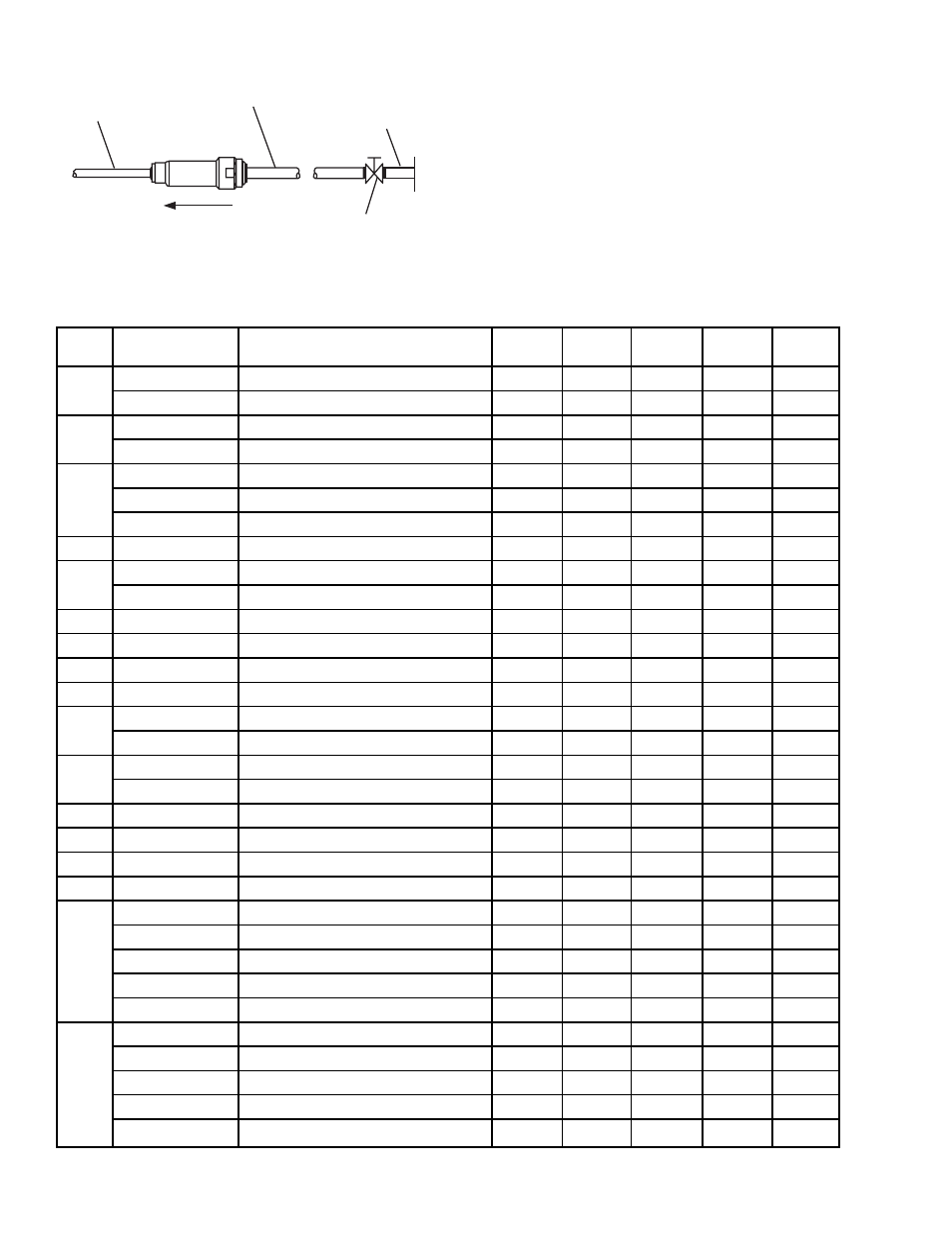

Figure 5 Water Supply Connections
Installation Package
The components for installation are packed in three
separate boxes, regardless of the type of unit being
installed. The boxes contain the following:
Box No. 1: Wall Frame(s)
Box No. 2: Remote Chiller, SJ8-Q
Box No. 3: Fountain(s), Arm(s) and Panels
Additional materials, as noted in the Parts List, are also
shipped in these boxes.
Number Required
