IN-tact™ 1101 Cabling Overview
The Hypercom ® IN-tact 1101 can be used as an IP gateway device for a
directly-connected single terminal or a network of terminals. Because there are
a variety of configuration, cables must be ordered and are shipped separately
from the IN-tact unit. This brief guide provides cable information for each of the
possible IN-tact 1101 configurations and examples of how each cable is used.
Cable List
The following list provides the part number of each cable that can be used with
the IN-tact 1101, a description of the cable, and how the cable is used.
Cable P/N Description Application/Notes
500401-001 120 ohm Terminating Resistor 120 ohm terminating resistor for the
beginning and end of a daisy chain.
Two resistors are required.
810071-001 Standard Ethernet cable
Male RJ-45 to Male RJ-45
10 ft. length (3 meters) Connect LAN port to router, hub,
DSL, or cable modem.
(1 for 1, not crossover)
810331-002 Male 9-pin DIN to Male 9-pin
DIN
18 in. length (45.7 cm) Direct connect IN-tact Port 2 to ICE™
Series terminal or T7Plus terminal.
810334-003 Male 9-pin DIN to Male RJ-11
18 in. length (45.7 cm) Direct connect IN-tact Port 2 to
T-Series terminal.
810338-001 Male RJ-11 to dual port Female
RJ-11
18 in. length (45.7 cm) Connect T-Series terminals within
daisy chain.
810339-001 Male RJ-11 to Male RJ-11
10 ft. length (3 meters) Interconnecting cable for daisy chain.
See example on adjoining page.
810340-001 Male 9-pin DIN to dual port
Female RJ-11
18 in. length (45.7 cm) • Create daisy chain of terminals
from IN-tact Port 2
• Connect ICE Series or T7Plus
terminals within daisy chain.
810343-001 Male RJ-45 to dual port Female
RJ-11
18 in. length (45.7 cm) Create daisy chain of terminals from
Ethernet patch panel utilizing existing
EIA/TIA T568 (A or B) Ethernet
wiring. See example on back page.
810344-001 Male RJ-45 to Male 9-pin DIN
10 ft. length (3 meters) Connect ICE Series or T7Plus
terminals to Ethernet wallplate.
810345-001 Male RJ-45 to Male RJ-11
10 ft. length (3 meters) Connect T-Series terminals to
Ethernet wallplate.

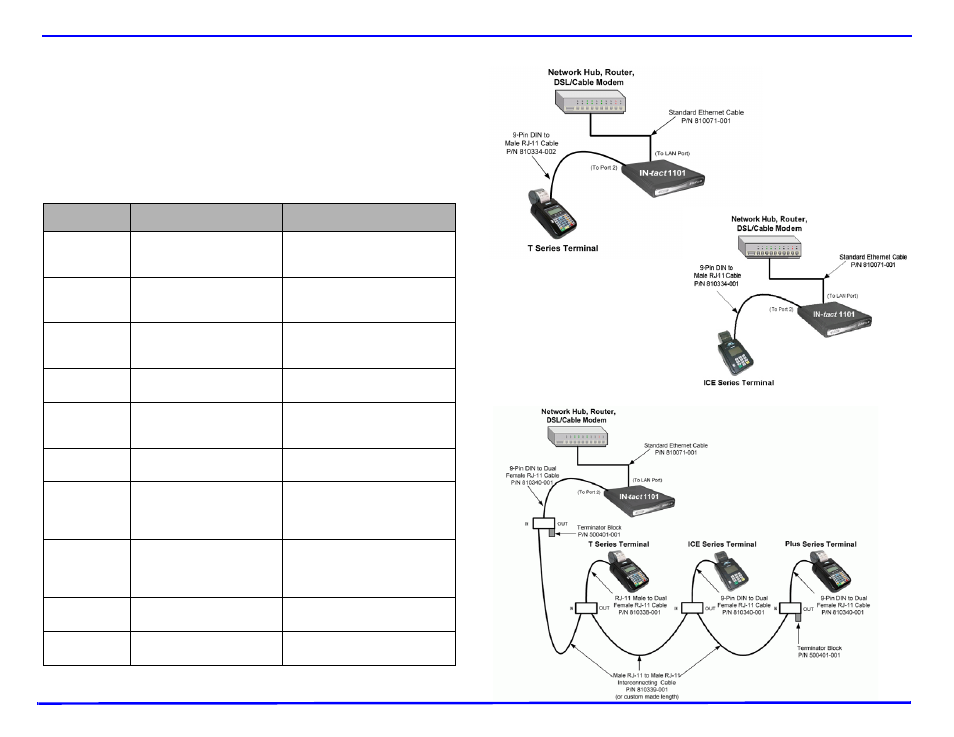

Direct Connection T-Series
Direct Connection ICE Series
HLAN Daisy Chain Example
