ASSEMBLY
UNPACKING
This product requires assembly.
n
Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
n Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
n Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
n If any parts are damaged or missing, please call
1-800-242-4672 for assistance.
PACKING LIST
Blower
Upper Blower Tube
Wide Sweeper Nozzle
Tube Clamp
2-Cycle Engine Oil
Operator’s Manual
NOTE: Read and remove all hang tags and store with your
operator’s manual.
WARNING:
If any parts are missing do not operate this tool until the
missing parts are replaced. Failure to do so could result
in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such altera-
tion or modification is misuse and could result in a hazard-
ous condition leading to possible serious personal injury.
WARNING:
Disconnect spark plug wire before assembling product.
Failure to do so could result in possible serious injury.
ASSEMBLING THE BLOWER TUBES
See Figure 2.
n
Screw the nozzle onto the upper blower tube and tighten
securely. Check tightness after initial run and retighten
if needed.
n Place clamp around the neck of the blower housing outlet.
Do not tighten the wing nut yet.
n Align the locking tab on upper blower tube with the slot in
the blower housing outlet; push the tube into the housing.
Twist to lock into place.
n Rotate the tube so the nozzle is pointing upward as
shown. Tighten the wing nut securely.
n To remove the tubes, loosen the wing nut on the clamp.
Rotate the tubes to unlock them and then remove then
from the blower housing outlet.

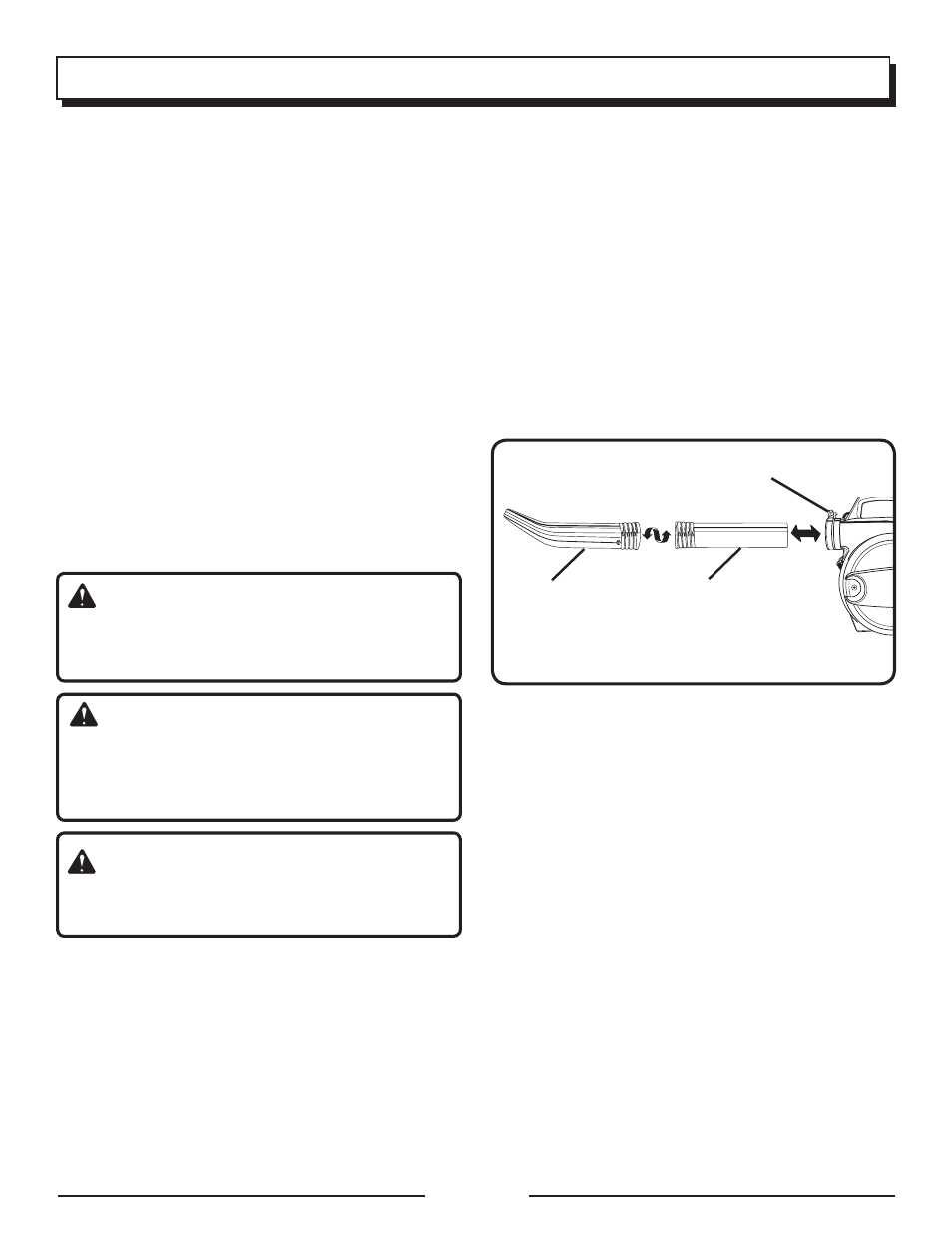

Fig. 2
NOZZLE UPPER TUBE
WING NUT
