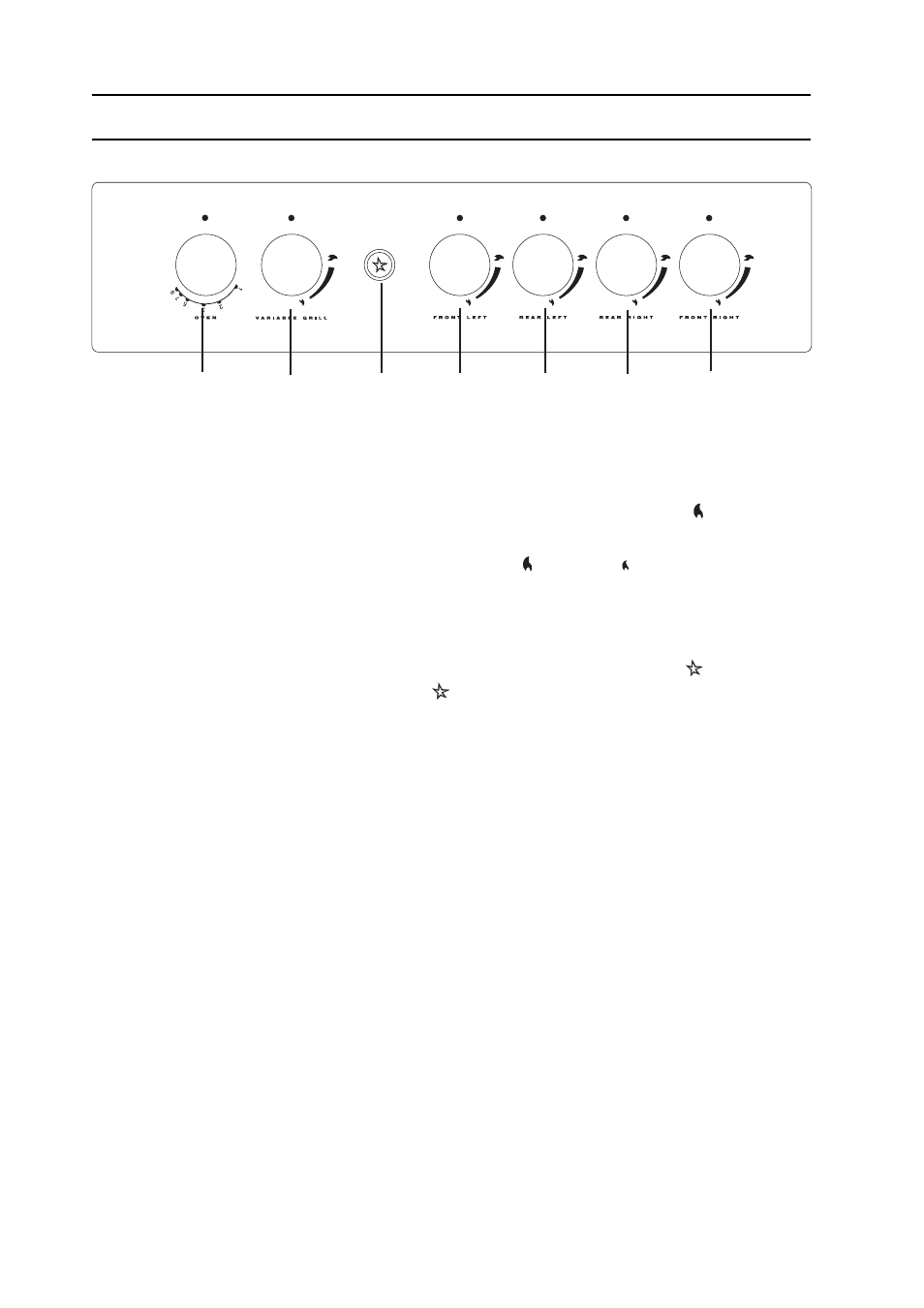

Control Panel
LEFT
FRONT
BURNER
RIGHT
REAR
BURNER
LEFT
REAR
BURNER
RIGHT
FRONT
BURNER
ELECTRONIC*
INIECTION
BUTTON
MAIN
OVEN GRILL
Control Knobs
for the gas
burners The position of the gas burner controlled by each one of the knobs is shown by a solid ring •. To
light one of the burners, hold a lighted match or lighter near the burner and, at the same time,
press down and turn the corresponding knob counter clockwise to the maximum setting. Each
burner can be operated at its maximum, minimum or intermediate power. Shown on the knob are
the different symbols for off • (the knob is on this setting when the symbol corresponds with the
reference mark on the control panel), for maximum and minimum . To obtain these settings, turn
the knob counter clockwise with respect to the off position. To turn off the burner, turn the knob
clockwise until it stops (corresponding again with the • symbol).
Electronic
Ignition
for the Gas Hob*
This device operates when a slight pressure is applied to the button marked with symbol. To light a
specific burner just press the button while pushing the corresponding knob all the way in and
turning it counter-clockwise until it lights. For immediate lighting, first press the button and then
turn the knob.
Important: Should the burner flames accidentally go out, turn off the control knob and wait
at least 1 minute before trying to relight.
Models with Hob
Gas Burner Safety
Devices to Prevent
Leaks *
These models can be identified by the presence of the device itself.
Important: Since the hob burners are equipped with a safety device, you must hold the control knob in
for about 3 seconds after the burner has been lighted to allow the gas to pass until the safety
thermocouple has heated.
* (only available on certain models)
