SPEAKER CONNECTIONS 9
Dolby Digital or DTS ®
(or Other Digital Surround Mode)
Connection
Use this installation method for Dolby Digital,
DTS
® or other digital surround processors:
Use the line-level input jack marked "SUB" for
the Low-Frequency Effects channel. Connect this
jack to the LFE output or subwoofer output
on your receiver or amplifier. Connect each
speaker to the corresponding speaker terminals
on your receiver or amplifier. Make sure that you have configured your
surround-sound processor for “Subwoofer On.”
The front left, front right, center and rear
speakers should all be set to “Small.”

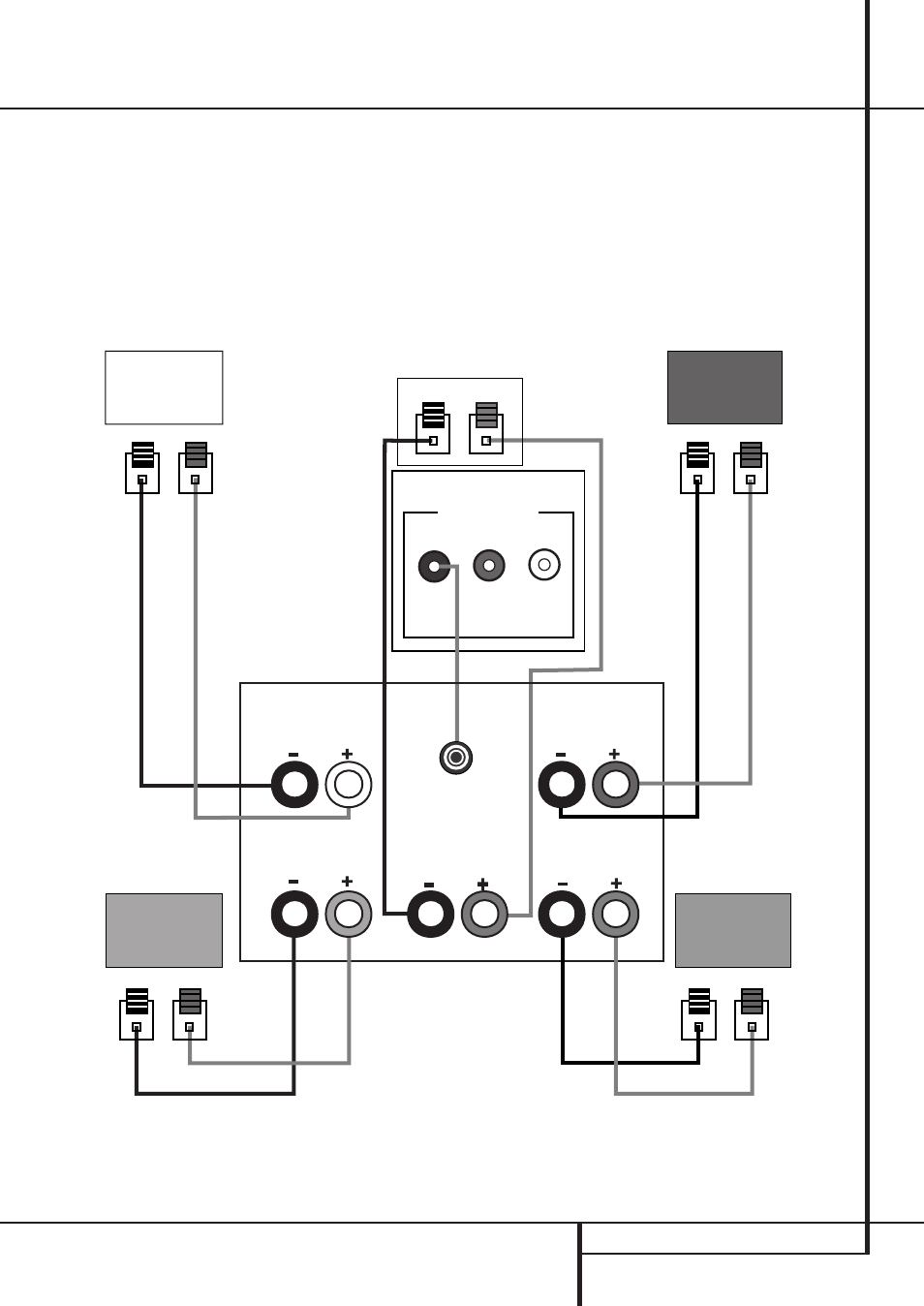

Speaker Connections
LINE LEVEL IN
L R SUB
SUB/LFE
Out
SUB-TS11 Subwoofer
Receiver
Front
Left
Surround
Left
Front
Right
Surround
Right Center
Surround
Right
Front
Right
Surround
Left
Front
Left
Center
– +
– +
– +
– +
– +
