Water Trap
Refer to Figure 2.

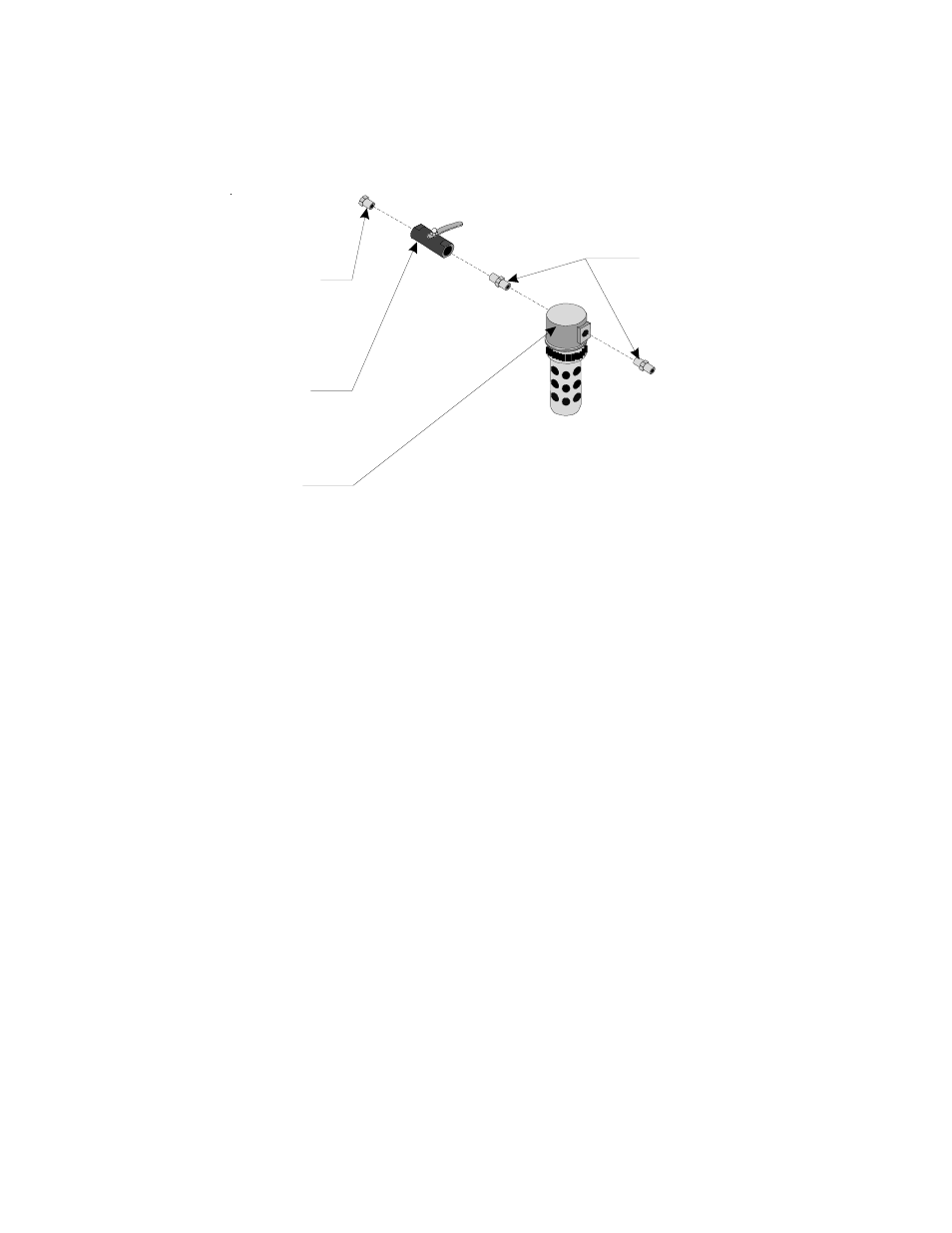

Figure 2 — Water Trap Assembly
Step1: Get out the WATER TRAP (#17), two 3/8" NIPPLE CONNECTORS (#16), the BRASS
AIR SUPPLY VALVE (#18), and the MALE/FEMALE ADAPTER (#19).
Step2: Attach the 3/8" NIPPLE CONNECTORS to either side of the WATER TRAP.
Step3: On the top of the WATER TRAP is an arrow. Attach the BRASS AIR SUPPLY VALVE to
the NIPPLE CONNECTOR that the arrow is facing away from.
Step4: Attach the MALE/FEMALE ADAPTER to the BRASS AIR SUPPLY VALVE.
Brass Air
Supply Valve
(#18)
Male/Female
Adapter
(#19)
Nipple Connector
(#16)
Water Trap
(#17)
