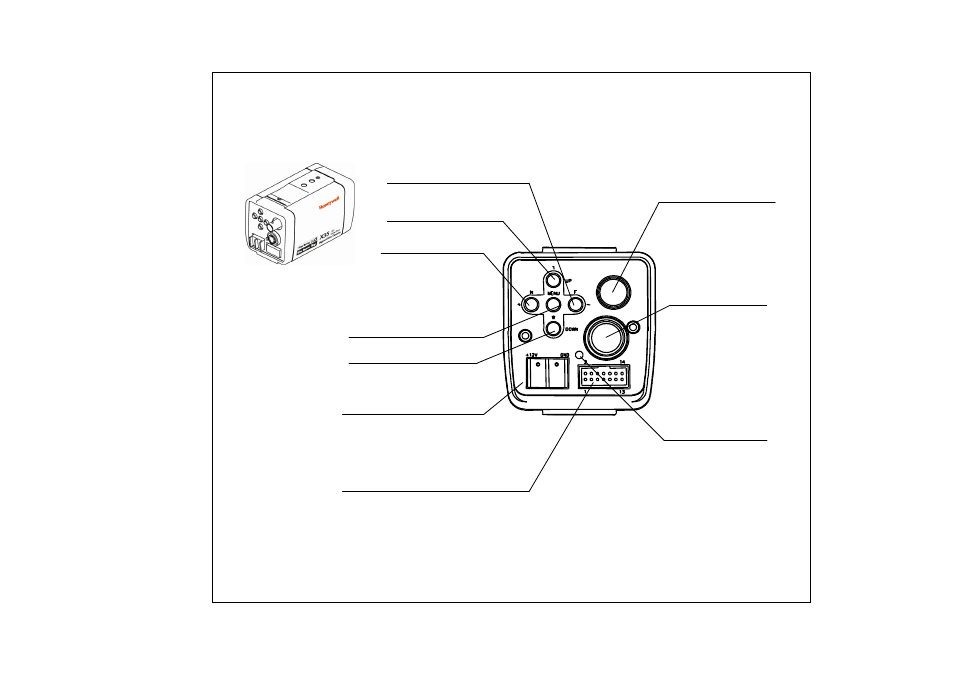

2. Terms & Functions
TELE(UP) BUTTON
NEAR(+) BUTTON
FAR(-) BUTTON
MENU BUTTON
WIDE(DOWN) BUTTON
POWER INPUT TERMINAL
CAMERA CONTROL CONNECTOR
VIDEO OUTPUT
S-VIDEO OUTPUT
POWER ON LAMP
This is the output terminal
for composite video signal .
This is the output terminal
for separate Y/C signal .
In power ON state ,
this LED is ON .
This is the 14 pin connector for external
camera controls .
( Refer to 4. CAMERA CONTROL METHODS )
DC 12V
( Please use a specified adaptor)
SVIDEO
VIDEO
