5
English
SPECIFICATIONS
Voltage (by areas)* (110V, 115V, 120V, 127V, 220V, 230V, 240V)
Power input 950 W*
Capacity Drill bit: 40 mm
Core bit: 105 mm
No load speed 360/min.
Full-load impact rate 2800/min.
Weight (without cord, side handle) 6.5 kg
•Be sure to check the nameplate on product as it is subject to change by areas.
STANDARD ACCESSORIES
(1) Case (Molded plastic) .............................................. 1
(2) Side Handle ............................................................... 1
(3) Stopper ....................................................................... 1
(4) Hexagon Bar Wrench (for 6 mm screw) ............ 1
(5) Hexagon Bar Wrench (for 5 mm screw) ............ 1
(6) Hammer Grease A ................................................... 1
(7) Dust cup ..................................................................... 1
Standard accessories are subject to change without
notice.

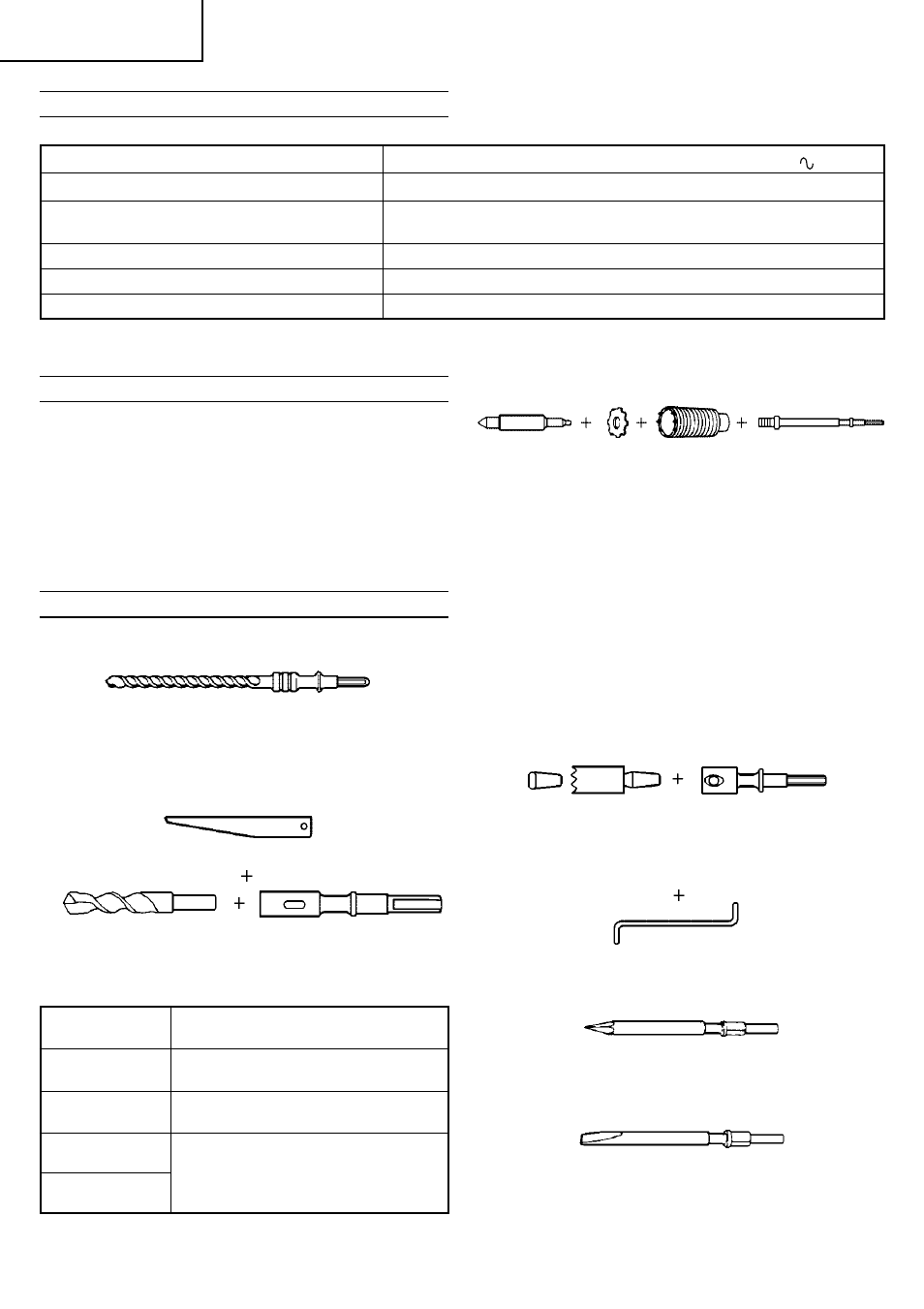

OPTIONAL ACCESSORIES (sold separately)
⅜ Through-hole drilling (Rotation + Striking)
(1) Drill bit (hexagon shank)
Overall length: 280, 400, 505 mm
External dia.: 16, 19, 22, 25, 28, 32, 38 mm
⅜ Anchor hole drilling (Rotation + Striking)
⅜ Large dia. hole boring (Rotation + Striking)
(1) Center pin
ⅷ Applied to core bits from 38 mm to 105 mm
ⅷ Applied to core bits 32 mm and 35 mm
NOTE
Do not use core bits 25 mm or 29 mm.
(2) Core bit
ⅷ External dia. 25, 29, 32, 35, 38, 45, 54, 64, 79, 94,
105 mm
(with guide plate, not applicable to cores 25 mm
or 29 mm)
(3) Core bit shank
ⅷ Applied to core bits above 38 mm
ⅷ Applied to core bits below 35 mm
⅜ Anchor work (for self-drilling anchors)
(1) Anchor adapter (for Rotation + Striking)
Anchor sizes:
W1/4, W5/16, W3/8, W1/2, W5/8
(No. 20) (No. 25) (No. 30) (No. 40) (No. 50)
(2) Drift key
⅜ Crushing (Striking)
⅜ Groove digging and edging (striking)
(1) Bull point
Overall length: 280, 450 mm
(1) Cold chisel
Overall length: 280, 450 mm
(3) Cotter
(1) Drill bit (taper shank)
External dia.: 11, 12, 14.
3, 14.5, 17.
5, 21.5 mm
(2) Taper shank
adapter
Taper shank
adapter
Morse taper
(No. 1)
Morse taper
(No. 2)
A-taper
B-taper
Application drill bit
Drill bit (taper shank)
11, 12, 14.3, 14.5, 17.5 mm
Drill bit (tape shank)
21.5 mm
Taper shank adapter formed A-
taper or B-taper is provided as
optional accessory, but drill bit for
it is not provided.
(1) Center
pin
(Guide
plate) (2) Core
bit
(3) Core bit
shank
