3. To change the code, either (For models with 2 push buttons, change code
setting in both push buttons to match chime.):
• Add a jumper to the same location on both the push button and the chime
or...
• Remove a jumper from the same location on both the push button and the
chime or...
• Move a jumper on the push button from one location to another. Move the
corresponding jumper on the chime to match the new location in the push
button.
Example: Move jumper at location “5” to location “4” on both the push
button and the chime.
Note: Code positions 1 through 7 must be exactly the same for both the
push button and chime for this system to function.
Note: Unit will come factory set with jumpers in locations 5, 6, and 7 on the
push button and on the chime (see Figure 9).
The range of the wireless chime can vary with location, temperature, and
battery condition.

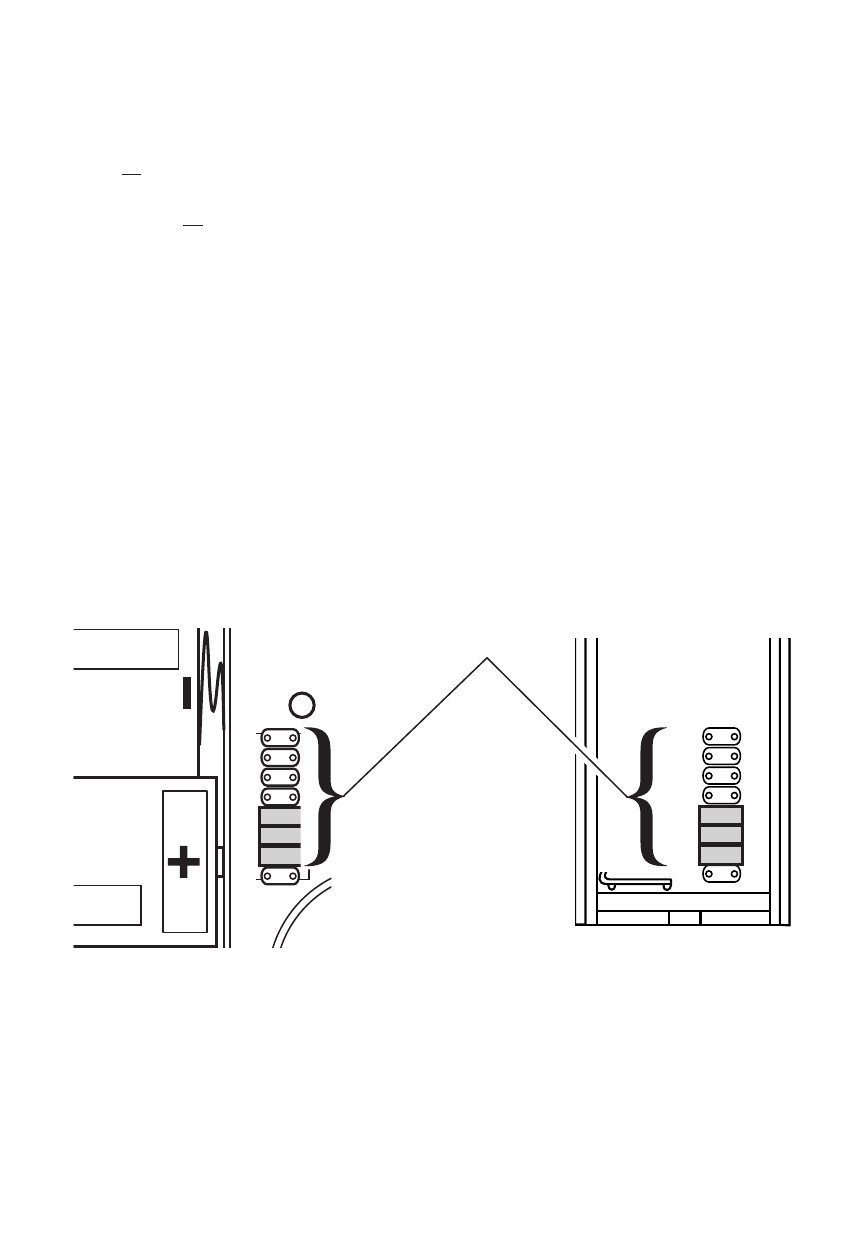

* Code Settings 1-7
Must Match Both Push
Button and Chime
Inside Push
Button
Inside Chime
Note: Some models might require the use of
tweezers to remove and replace the jumpers.
Figure 9
12345678
