Ready, Network & Go!
It's easy to install, it's easy to use!
Everyone can do it.
Step 1 –
Connect WB320 Bridge
Plug Power Adapter into WB320
and connect it to a wired Ethernet
LAN or an Ethernet device via a
Twisted Pair Network cable.
Step 2 –
Setup the WB320 Bridge
Insert software CD into your
Windows 98/2000 or ME computer
to install the Wireless Navigator
Utility.
Step 3 – Configure the Bridge
Using a Web Browser, login to the
Web based UI to setup the Bridge.
Go through the Setup step by step,
Now you are ready to go.
Specification:
Network
• IEEE 802.11b WLAN Standard
• IEEE 802.3 10Base-T Standard
LAN Speed
• Wireless: 11/5.5/2/1 Mbps Adaptive Data Rate
Access Mode: Infrastructure/Ad-Hoc
Security: IEEE WEP 128/64-bit
Network Management: SNMP, MIB, 802.11
LAN Interface: RJ45
Antenna: External Antenna Diversity System 5dB gain
Power: AC 100-250V 50/60HZ to 5VDC 1.5A
Frequency Band: 2.4 ~ 2.4835GHz
Channels:
o 11 Channels (US, Canada)
o 13 Channels (Europe)
o 14 Channels (Japan)
Modulation Technique
• DSSS (Direct Sequence Spread Spectrum)
• 1Mbps DBPSK
• 2Mbps DQPSK
• 5.5Mbps CCK
• 11Mbps CCK
Output Power: Peak +20dBm.
Receiver Sensitivity: –82dBm Min.
TYPICAL OPERATION RANGE*
DATA
RATE
INDOOR RANGE OUTDOOR RANGE
11Mbps 120 ft (37 m) 400 ft (122 m)
5.5 Mbps 200 ft (61 m) 600 ft (183 m)
2 Mbps 240 ft (73 m) 750 ft (228 m)
1 Mbps 300 ft (91 m) 1000 ft (305 m)
Roaming: 802.11b compliant
Dimension:
4” L x 2” W x 5.5” H
EMI Conformance
FCC part 15 Class B
*The range will vary in different operating environments due to
effects such as building construction
Features Benefits
11Mbps Wireless LAN Fast, Reliable and Easy
Connection
IEEE 802.11b Standard Compatible with Industrial
Standard
5dB External Antenna Ensures optimal coverage
Supports most network
operating systems Setup is quick and simple

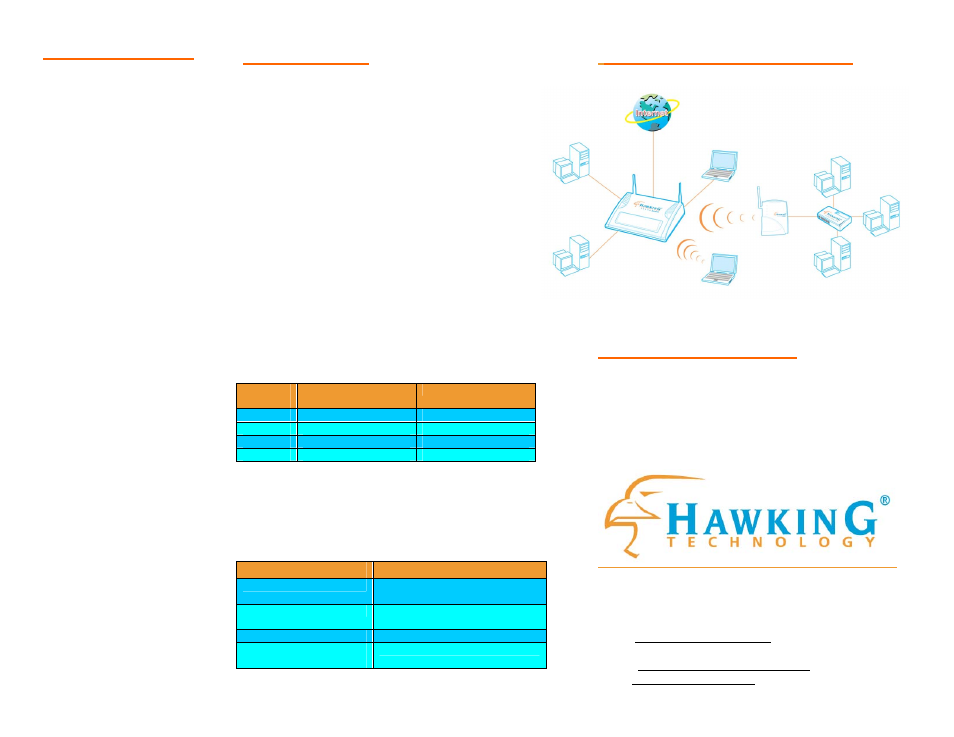

Wireless Network Diagram:
Ordering Information:
WB320 11M 802.11b Wireless Workgroup Bridge
WA300 11M IEEE802.11b Wireless Access Point
WE110P 11M IEEE802.11b Wireless PC Card
WU250 11M IEEE802.11b Wireless USB Adapter
WA739P 11M IEEE802.11b 3pt Wireless Print
server or AP with 3 port print server
WR254S
11M IEEE802.11b 4 port Wireless Router
CF100W 11M IEEE902.11b Wireless Compact F.
