FEATURES FEATURES
PROdUcT SPEciFicATiONS
Cutting Capacity........................................................................................................................................................... 3/8 in.
Total Blade Length..........................................................................................................................................................18 in.
Cutting Strokes Per Minute ............................................................................................................................................ 1500
Input ....................................................................................................................................120 V, 60 Hz, AC only, 3.8 Amps
Weight .........................................................................................................................................................................6.2 lbs.

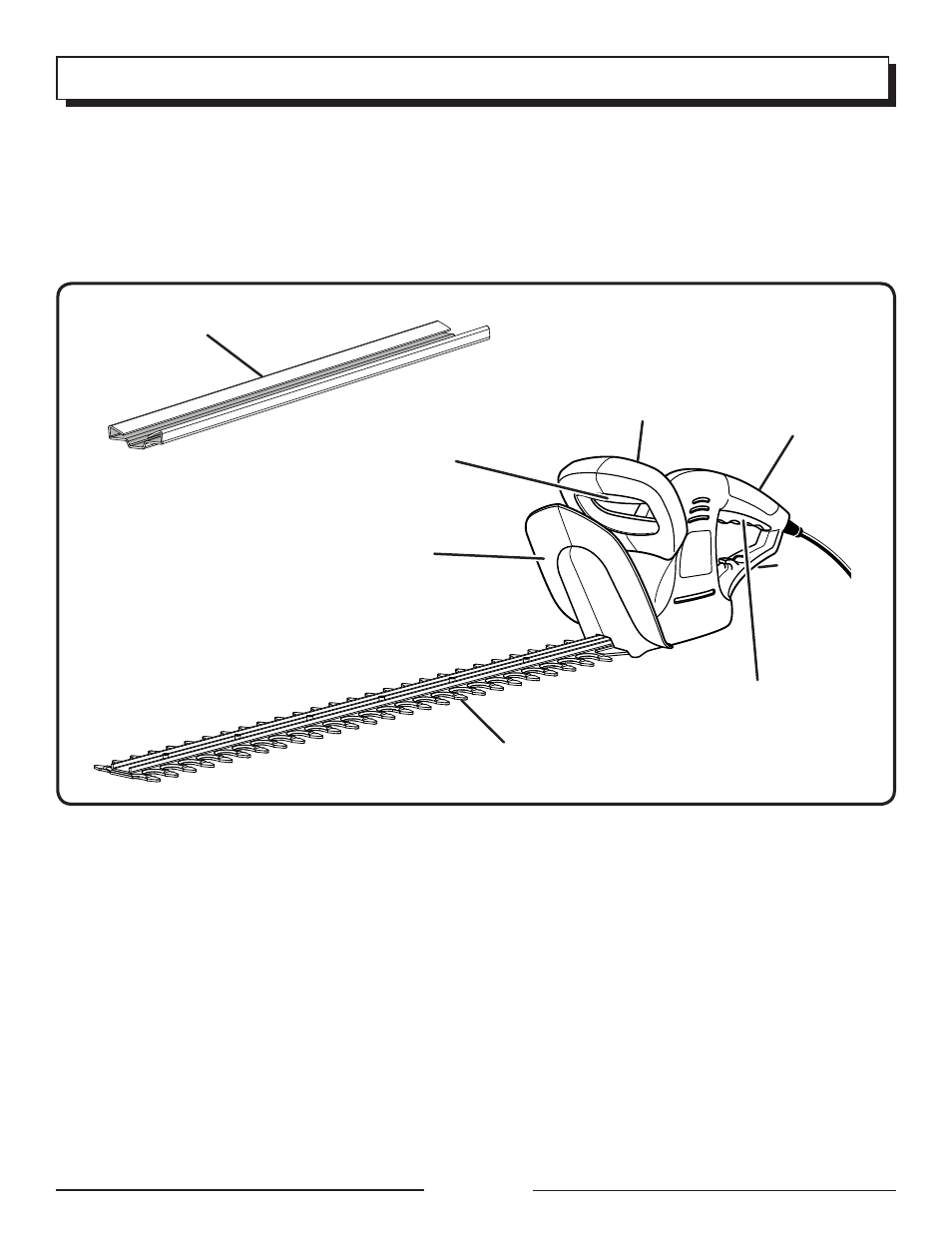

Fig. 2
KNOW yOUR HEdgE TRiMMER
See Figure .
The safe use of this product requires an understanding of the
information on the product and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
gUARd
The guard helps to deflect chips or other debris away from
the operator’s hands.
ScABBARd
The scabbard keeps the operator from coming in contact
with the sharp blades when the tool is not in use. It also
helps keep the blades from being nicked or damaged when
the tool is in storage.
SWiTcH TRiggERS
The front switch trigger, located beneath the front handle,
and the rear switch trigger, located beneath the rear handle,
must be depressed simultaneously to allow blade rotation.
REAR HANDLE
SWITCH TRIGGER
fRoNT
HANDLE
GuARD
REAR
HANDLE
bLADES
SCAbbARD
fRoNT HANDLE
SWITCH TRIGGER
