ENGLISH

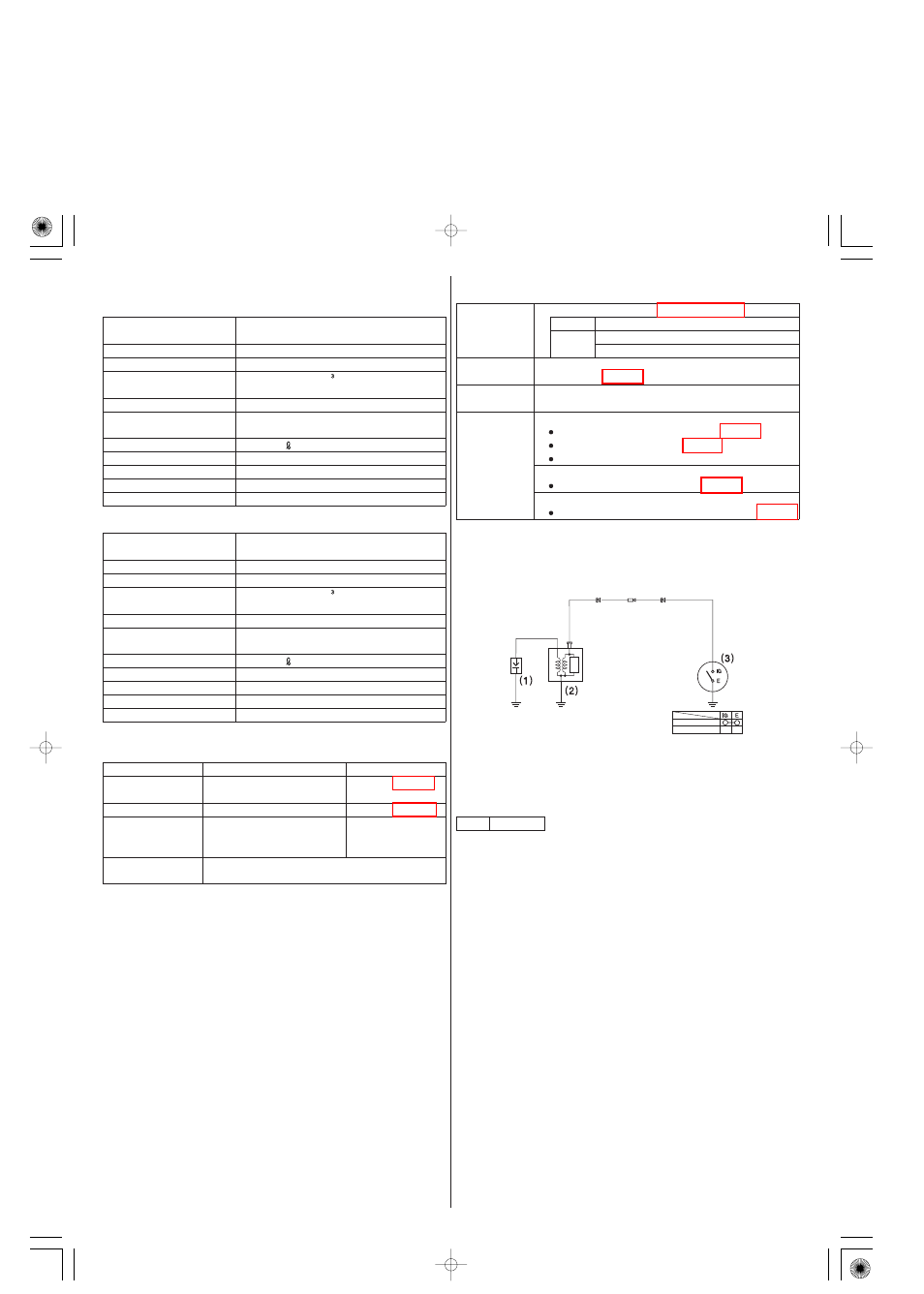

Specifications
ITEM SPECIFICATION MAINTENANCE
Quick Reference Information
Wiring Diagram
Tuneup Specifications
GX160
GX120 (Standard type: KR type)
(Standard type: AR type)
GX120/160
13
Length Width
Height
Dry weight
Engine type
Displacement
[Bore
Stroke]
Max. output
Max. torque
Engine oil capacity
Fuel consumption
Cooling system
Ignition system
PTO shaft rotation
313 331 321 mm
(12.3 13.0 12.6 in)
16.5 kg (36.4 lbs)
4-stroke, overhead valve, single cylinder
118 cm (7.2 cu-in)
[60 42 mm (2.4 1.7 in)]
2.9 kW (4.0 PS, 4.0 bhp) at 3,600 rpm
7.4 N·m (0.75 kgf·m, 5.4 lbf·ft) at
2,500 rpm
0.40 (0.42 US qt , 0.35 Imp qt)
310 g/kWh (230 g/PSh, 0.51 lb/hph)
Forced air
Transistorized magneto
Counterclockwise
Length Width
Height
Dry weight
Engine type
Displacement
[Bore
Stroke]
Max. output
Max. torque
Engine oil capacity
Fuel consumption
Cooling system
Ignition system
PTO shaft rotation
319 342 333 mm
(12.6 13.5 13.1 in)
18.6 kg (41.0 lbs)
4-stroke, overhead valve, single cylinder
163 cm (9.9 cu-in)
[68 45 mm (2.7 1.8 in)]
4.0 kW (5.5 PS, 5.5 bhp) at 3,600 rpm
10.8 N·m (1.1 kgf·m, 8.0 lbf·ft) at
2,500 rpm
0.37 (0.39 US qt , 0.33 Imp qt)
310 g/kWh (230 g/PSh, 0.51 lb/hph)
Forced air
Transistorized magneto
Counterclockwise
Spark plug gap
Idle speed
Valve clearance
(cold)
Other
specifications
0.70 0.80 mm
(0.028 0.031 in)
1,500 150 rpm
0.15 0.02 mm
0.20 0.02 mm
Refer to page: 8
Refer to page: 9
See your
authorized
Honda dealer
No other adjustments needed.
Unleaded gasoline (Refer to page 6)
U.S.
Except
U.S. Pump octane rating 86 or higher
Research octane rating 91 or higher
Pump octane rating 86 or higher
Fuel
Engine oil
Spark plug
Maintenance
BPR4ES (NGK)
W14EPR-U (DENSO)
Wiring diagram may vary according to the type.
SAE 10W-30, API SJ or later, for general use.
Refer to page 6.
Before each use:
Check engine oil level. Refer to page 6.
Check air filter. Refer to page 8.
Check all bolts and nuts.
First 20 hours:
Change engine oil. Refer to page 7.
Subsequent:
Refer to the maintenance schedule on page 5.
IN:
EX: BI Black
(1) SPARK PLUG
(2) IGNITION COIL
(3) ENGINE SWITCH
ON
OFF
06/12/20 13:35:15 32Z4F800_013
