Fig.1
Pressure gauge
(A) indicates the
pressure in the
air tank
Safety valve
Pressure gauge
(B) indicates the
working pressure
Quick coupler
(air outlet)
Knob of the
pressure reducer
Knob of the
pressure
switch
Drain cock
Tank
Rubber bumper
Intake filter
Motor
OPERATION AND MAINTENANCE
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the
compressor.
Some illustrations in Instruction Manual may show details or attachments that differ from those on your own compressor.

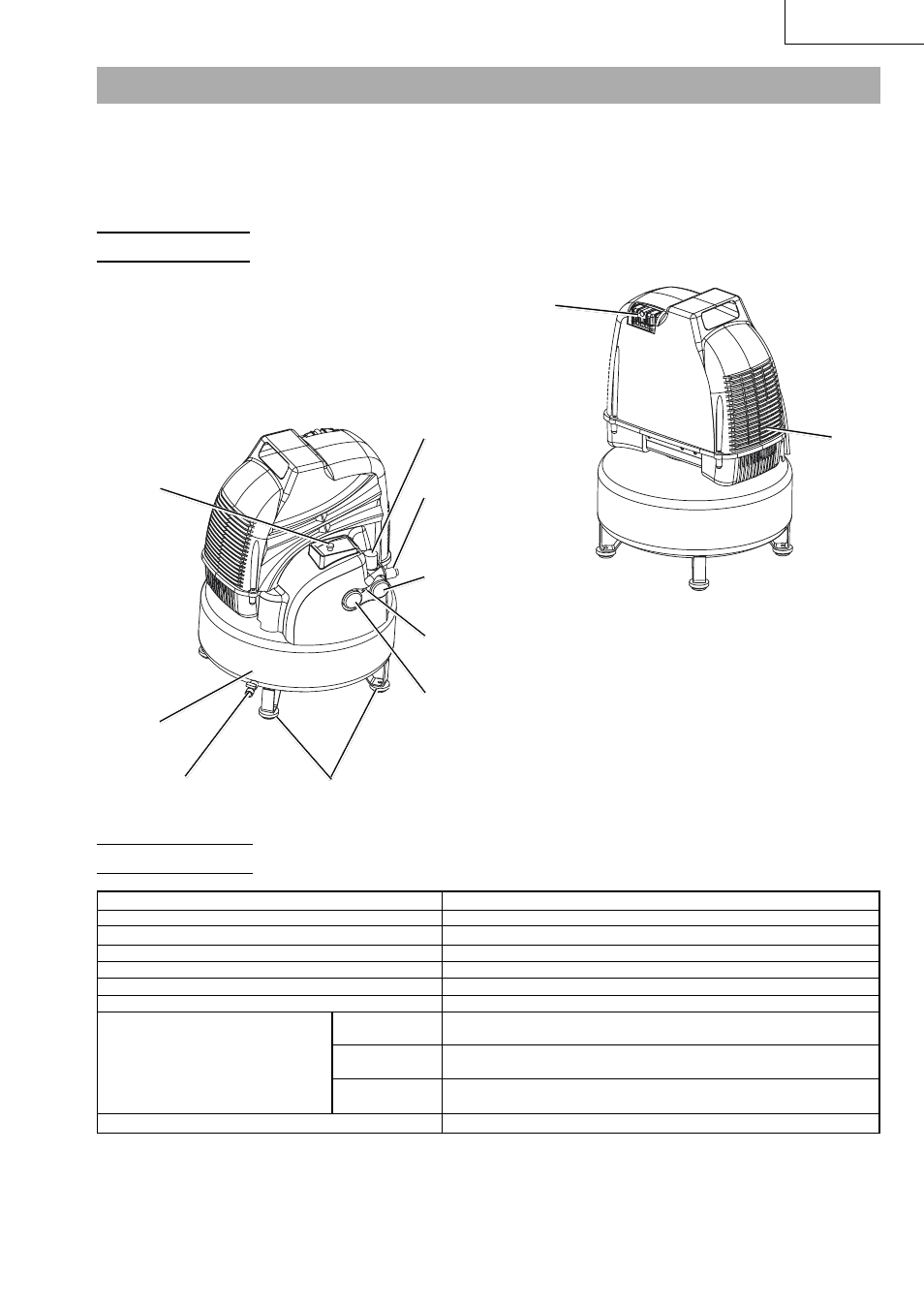

NAME OF PARTS
SPECIFICATIONS
Model EC79
Motor Single-Phase, Induction Motor
Power Source Single-Phase, 120V AC 60Hz
Output Power 1.5 HP (1.1KW)
Current 12.5 A
Tank Capacity 6 gal. (22.7 ltr)
Maximum Pressure 135 PSI (9.3 bar)
at 40 PSI 3.6 CFM
(2.8 bar) (102 ltr/min)
Free Air at 90 PSI 2.7 CFM
Delivery (6.2 bar) (76 ltr/min)
at 100 PSI 2.5 CFM
(6.9 bar) (71 ltr/min)
Lubrication Oil-less
