4/20/11 Heatilator • Constitution EPA Fireplace • 480-1091D Page 69
C40
Service Parts
Beginning Manufacturing Date: June 2003
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
at Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
15 Door Handle Assembly HANDLES-480
16 Baffle Protection channel 480-2100
Bracket, Snap Disc Mounting 410-2521
Chimney Air Kit CAK4A
Door Handle, Left SRV480-0530
Door Handle, Right SRV480-0520
Face Board Assembly Kit, Non -combustible board 480-5440 Y
Fan Speed Control SRV7000-143 Y
Gasket Rope (Door), 1/2 in. 10 ft. 834-4170 Y
Gasket Rope (Glass), 1/4 in. 10 ft. 834-1460 Y
Gasket, Timer 480-1240
Glass Frame, Bottom 480-1450
Glass Frame, Top 480-1440
Header Shield 480-1130
Hearth Strip 480-1190
Junction Box Cover Plate 480-1050
Latch, Magnet 229-0631
Light Switch 480-1260
Light Switch Cover Plate 480-1270
Manual Bag Assembly (Owner's Manual, Spring Handles,
Paint, Fan Switches, Cover Plate)
SRV480-1150
Out Can Cover Plate 480-1300
Outside Air Hood, 6 in. 480-5170
Outside Air Shield 33271 Y
Outside Air Termination 480-1160
Slider Control Assembly 480-5410
Snap Disc, Ceramic SRV480-1730 Y
Standoff Top 480-1040
Timer Replacement Assembly SRV480-1940 Y
Unit Collar 659-125

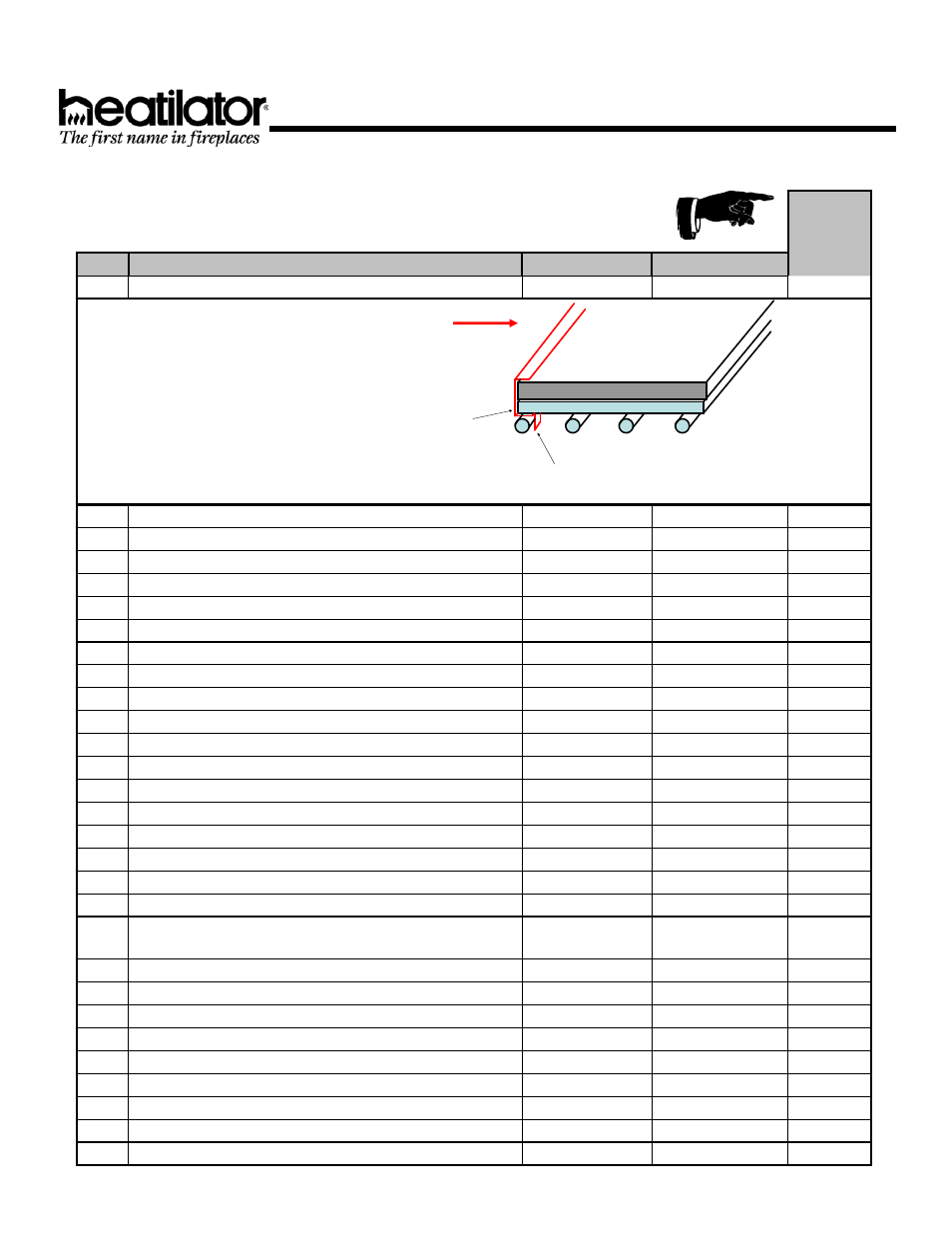

Fiber baffle
Ceramic blanket
This tab sits behind the front tube.
Baffle
protection
Channel sits
In between
Front tube and
Fiber baffle.
Side view
Front, looking into unit
Baffle Protection Channel
