Example 1:
If opening a door or the tailgate causes the alarm to be triggered, the Status LED will flash once,
pause and repeat this sequence for 1 minute.
Example 2:
If the alarm is triggered twice, small number is shown first. First trigger is Glass breakage and
second trigger is Door opening. The Status LED will flash once (door), pause, flash four times
(glass), pause and repeat this cycle of operation for 1 minute. TRIPPED STATUS LED
SENSOR NUMBER OF FLASHES
Door or Tailgate 1
Ignition Key Switch
Ignition Switch
3
Battery Disconnected
Glass Breakage
4
Tripped Sensor Indication
• After disarming the system, if the tripped sensor warning indicator appears, you can
identify which portion of the security system has been tripped by observing the number of
flashes as shown below.
• Information regarding the security system can be retrieved from the memory of the
systems main control unit.

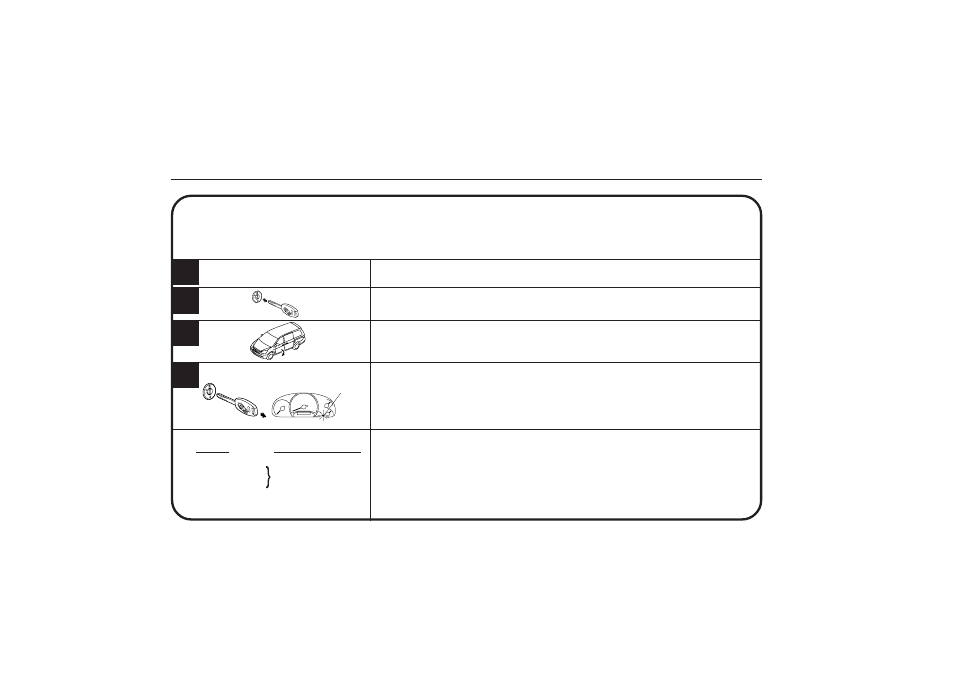

Insert the ignition key.
Within 1 second after step 2, open a door or the tailgate.
Tripped Sensor Warning and Indication
1
2
3
4
Disarm the security system.
Close the door and tailgate.
Within 1 second after step 3, remove the key from the ignition switch.
The status LED flashes to indicate which sensor(s) was/were tripped.
4628070B
4625051B
Status
LED
