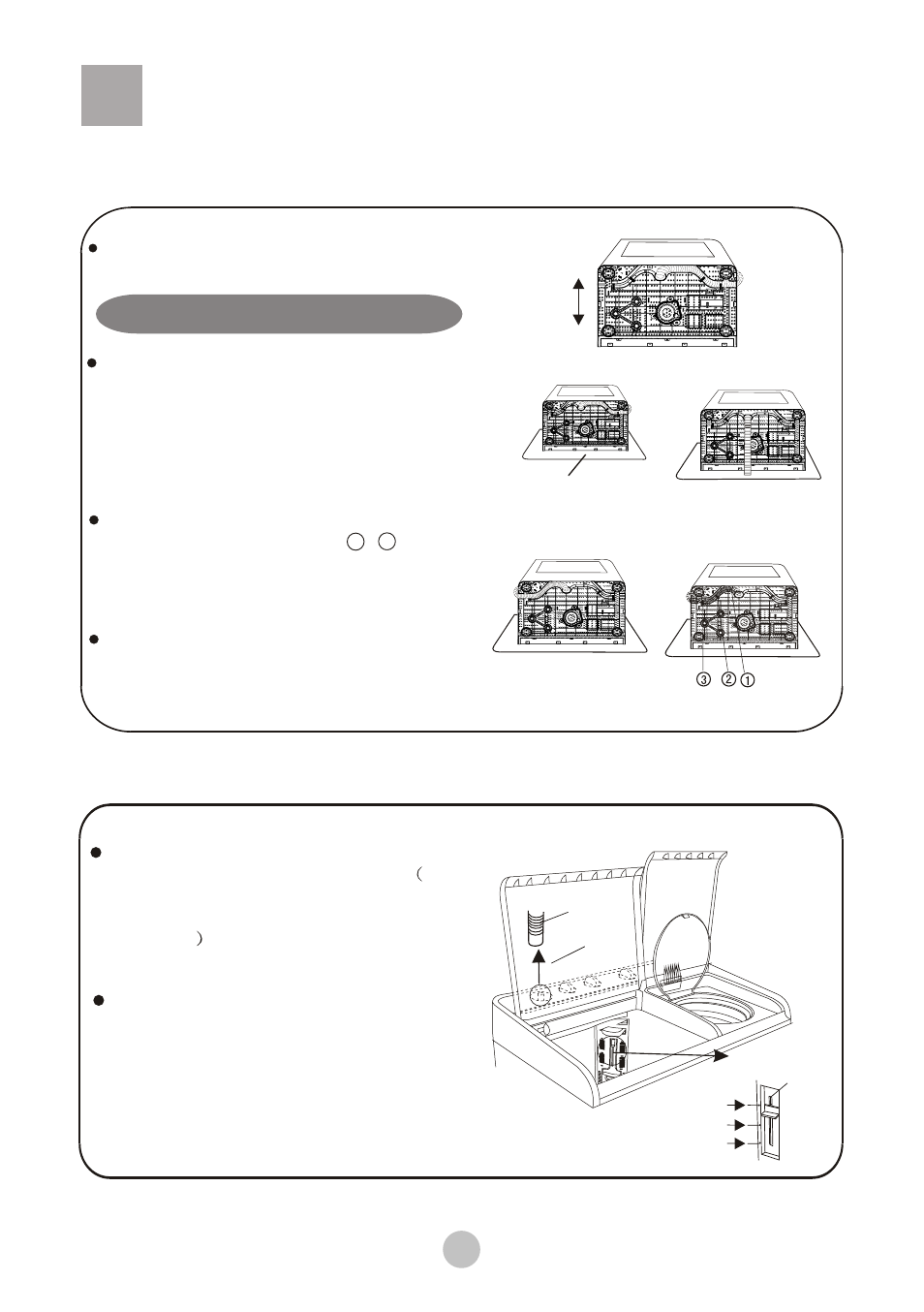

How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Dismantle the drain hose fixing clamp and take
the hose out of the fixing groove.
(See to Figure 2).
Extend the drain hose from the side of spin tub
Figure 1
Back
Front
Soft item
Figure 2
Extend to the
spin tub side
Fig ure 3
Embed the drain hose into the groove along the side
of the spin tub in the order of 1 ~ 3 , heading for the
side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Install the water inlet hose; Select the water level
Insert the water inlet hose into the water-filling
entrance on the control panel
To
dismantle the water inlet pipe, just push the
control handle as indicated in the figure and
pull it out
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Water inlet
hose
Water-filling
entrance
Water level
indicator
Maximum
Medium
Minimum
Max
Med
Min
