EverFocus ED335 User Manual
Page 14
13

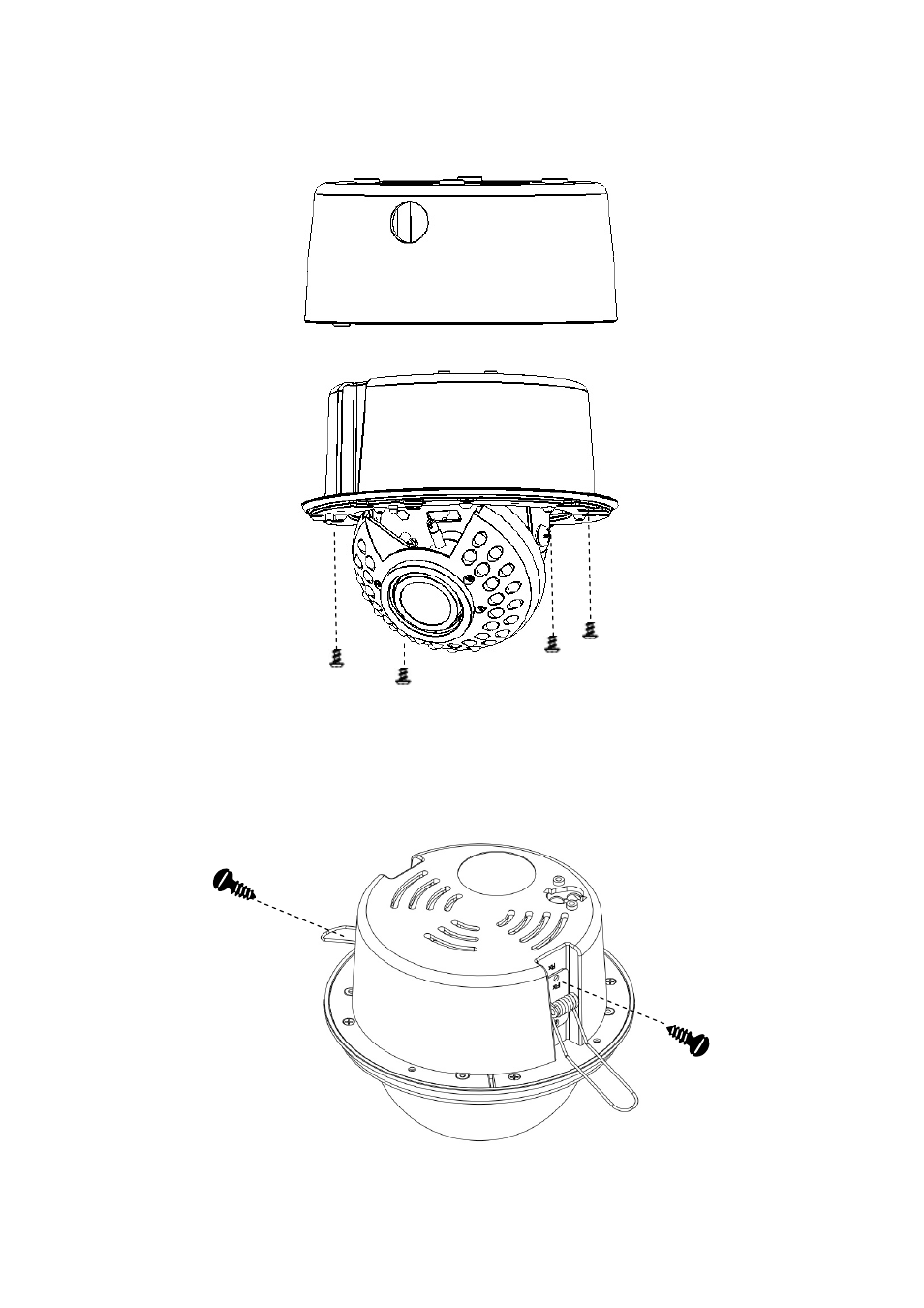

5. Unscrew the 4 Philips screws (retain for future use) to detach the inner base from the outer base. Set
aside the outer base.
6. Screw the 2 spring tabs in the orientation shown to the slots at both sides of the inner base using the 4
Philips head screws provided. Attach the screws to the places marked
“Fix”.
