MAINTENANCE

6.3.2 C

UTTING DECK ALIGNMENT

The cutting deck should be properly set to obtain a good cut.

To achieve good results from cutting, the front part should

always be 5 - 6 mm lower than the rear.

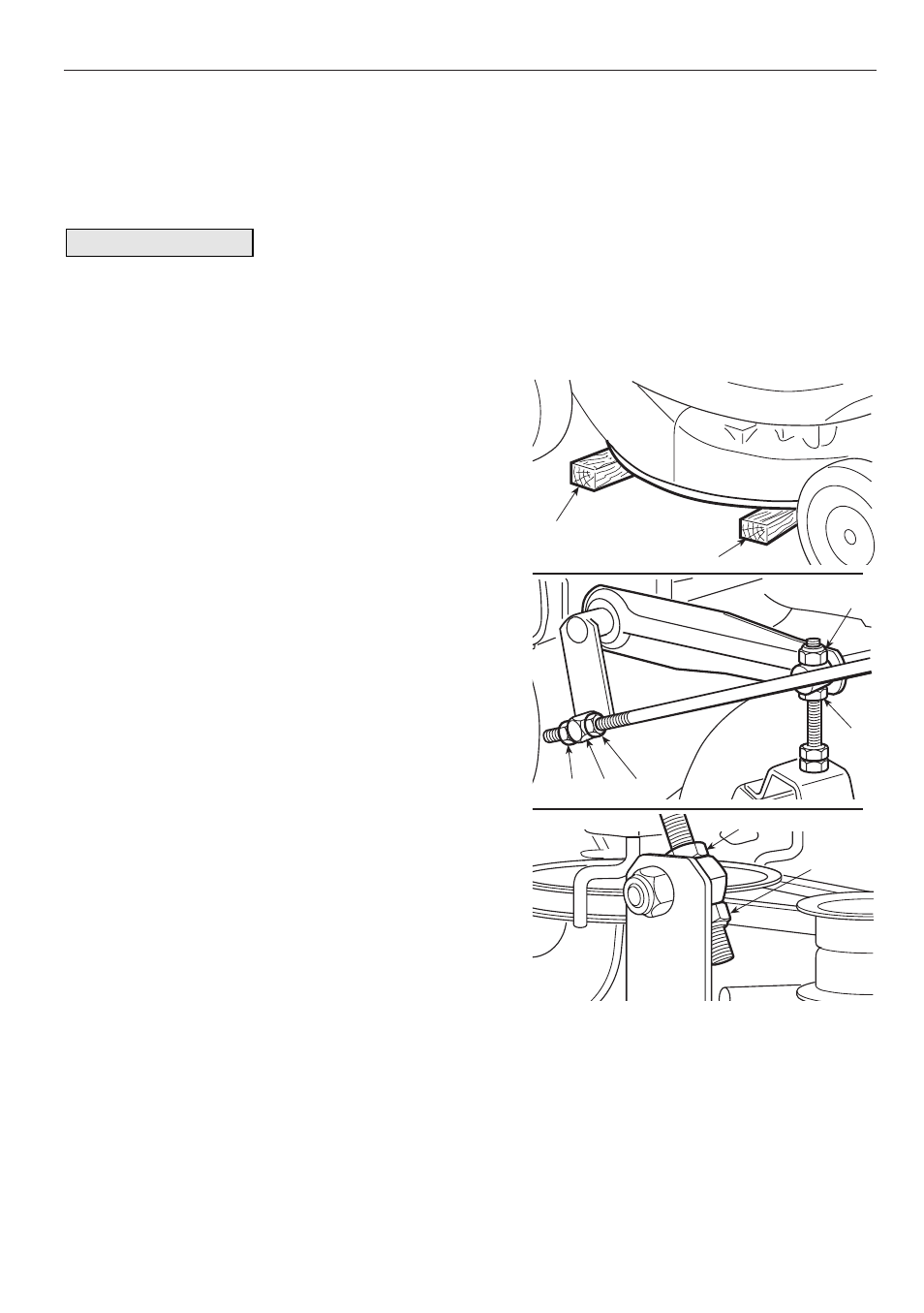

1. Put the machine onto a flat surface and

check the tyre pressure;

2. put 26 mm blocks (1) under the front edge

of the deck and 32 mm blocks (2) under
the rear edge, then put the lifting lever into
position «1»;

3. loosen the nuts (3-5), the locknuts (4-6) on

the right and left-hand side and the nuts (7
– 8), so that the deck is resting firmly on
the blocks;

4. tighten the nut (3) and the locknut (4);
5. turn the nut (7) until the front part of the

deck just begins to rise;

6. turn the nut (5) until the rear part of the

deck just begins to rise and tighten the
locknut (6);

7. check the front part and if necessary, turn

the nut (7);

8. tighten the nut (8) on the pin (9).

If you are unable to adjust the cutting deck
properly, consult a Licensed Service Centre.

6.3.3 A

DJUSTING THE ENGAGEMENT AND BRAKE OF THE BLADE

When you operate the lever to disengage the blade, this also brings the brake into
operation for stopping the blade within few seconds.
If this is faulty, contact a Licensed Service Centre.
