Exmark S/N 790 - Manual (Page 4)

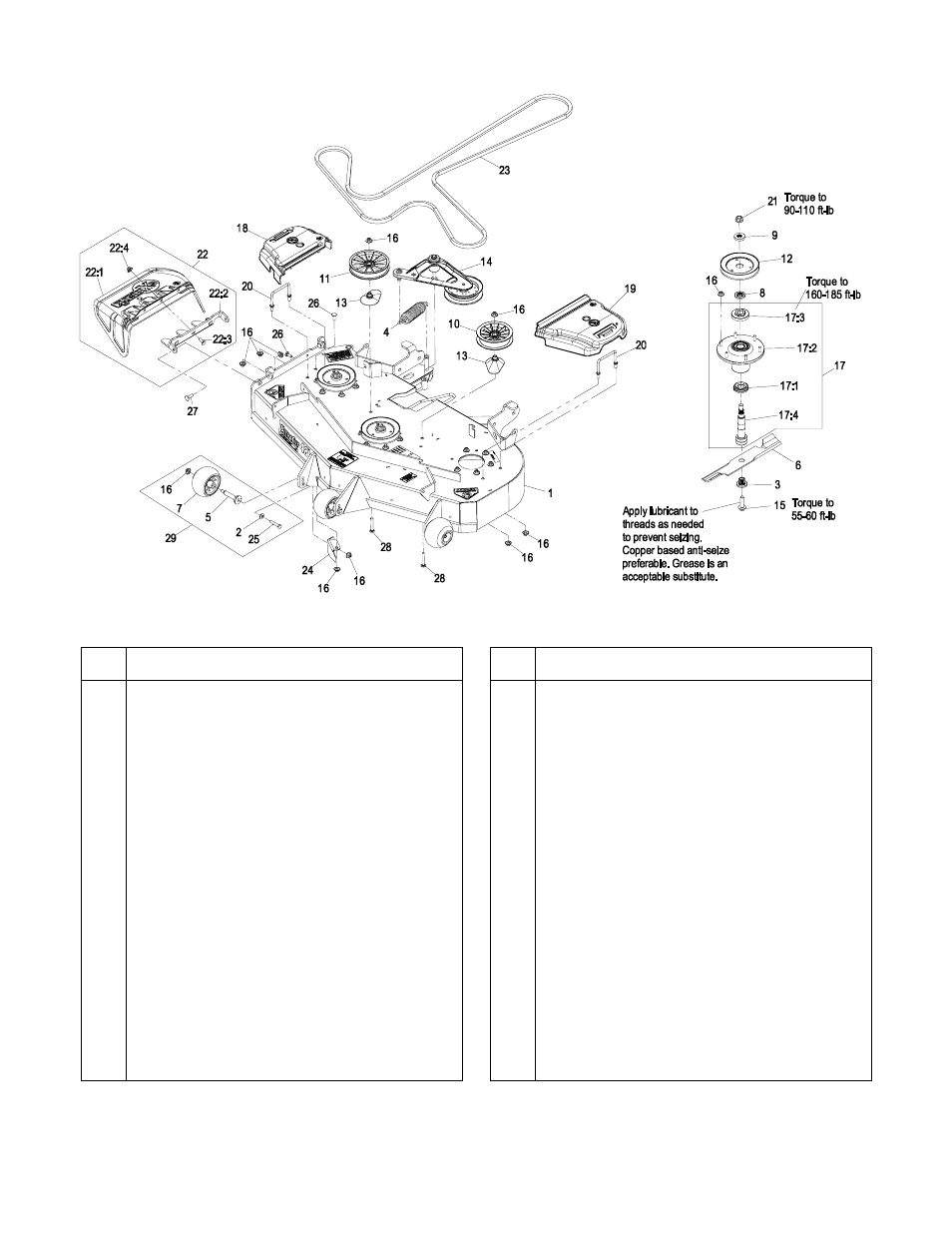

48” DECK GROUP
-3-
Item Part No. Description Qty.
1 109-9008 Asm, Deck W/Decals 486..................... 1
2 98-5975 Washer, Spring Disc 3/8....................... 3
3 103-3037 Bushing, Splined .................................. 3
4 116-0133 Spring, Extension ................................. 1
5 109-9851 Axle, Anti-Scalp Roller.......................... 3
6 103-6401 Blade, Notched..................................... 3
O 103-6391 Blade, Mulching.................................... 3
103-6386 Blade, Low Lift...................................... 3
103-6381 Blade, Solid .......................................... 3
103-6396 Blade, Extreme..................................... 3
7 103-8415 Roller, Anti-Scalp.................................. 3
8 103-9522 Spacer, Splined Stepped ...................... 3
9 103-9523 Spacer, Splined .................................... 3
10 109-0977 Pulley, Idler 5" ...................................... 1
11 109-2796 Pulley, Idler 6" ...................................... 1
12 116-1443 Sheave, Blade Drive 5.72 ..................... 3
13 109-2872 Spacer, Pulley ...................................... 2
14 109-2883 Asm, Deck Idler.................................... 1
15 109-9220 Screw, SEMS Hex 1/2-20 x 2.18........... 3
16 109-6658 Nut, Nyloc 3/8-16 Flg............................ 31
17 109-6917 Asm, Spindle Housing .......................... 3
Item Part No. Description Qty.
17:1 103-9504 Guard, Bottom...................................... 1
17:2 103-9539 Asm, Cutter Housing ............................ 1
17:3 109-0916 Nut, Spindle 7/8-14 .............................. 1
17:4Q 109-6881 Spindle, Double Spline ......................... 1
18 109-6935 Cover, Belt RH 46-56 ........................... 1
19 109-6936 Cover, Belt LH 46-56............................ 1
20 109-6982 Wireform, Cover................................... 2
21 109-7033 Nut, Flange 5/8-18 Centerlock.............. 3
22 109-7188 Asm, Discharge Chute ......................... 1
22:1 109-2738 Chute, Discharge ................................. 1
22:2 109-8675-01 Bracket, Discharge Chute .................... 1
22:3 3231-22 Bolt, Carriage 3/8-16 x 1....................... 3
22:4 109-6658 Nut, Nyloc 3/8-16 Flg............................ 3
23 109-8070 Belt, V-B X 175.75................................ 1
24 109-9010-01 Baffle, Discharge 484/486 .................... 1
25 3211-46 Screw, HH 3/8-24 x 2 Gr8 .................... 3
26 3231-22 Bolt, Carriage 3/8-16 x 1....................... 1
27 3231-28 Bolt, Carriage 3/8-16 x 1 1/4................. 2
28 3231-44 Bolt, Carriage 3/8-16 x 2 1/2................. 2
29 109-2098 Kit, Anti-Scalp ...................................... 3
30 109-9643 Asm, Deck Complete 486 .................... 1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
Q Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK486.
Q Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles and bearings. DO NOT
use a copper or nickel based anti-seize.
