Basic Setting

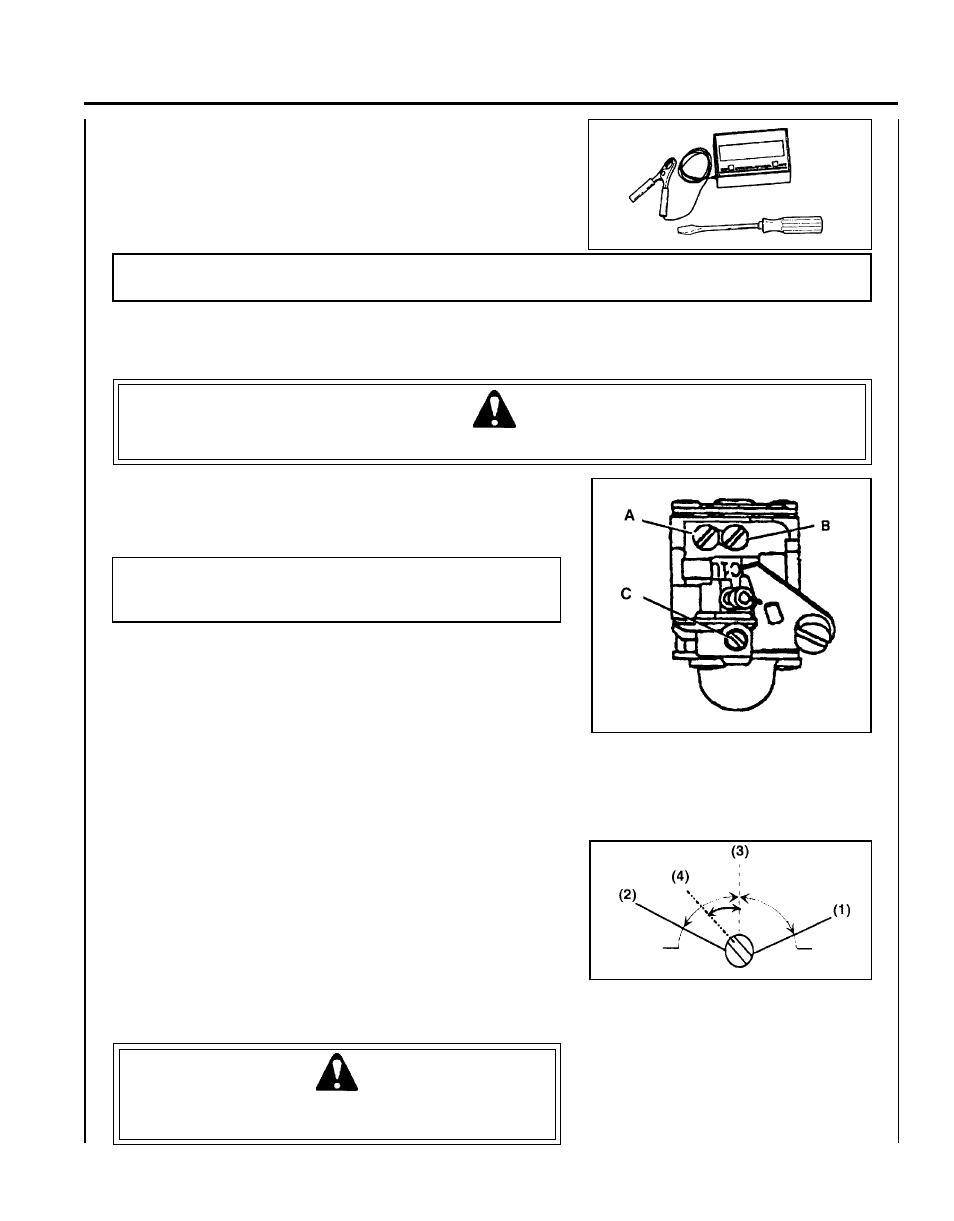

Stop engine and turn both LO (B) and HI (A) needles in, CW until
they stop and are lightly seated.

IMPORTANT
DO NOT over tighten needles. Forcing them to tighten will
damage the carburetor.

Turn needles out CCW: LO (B) 3/4 turns; HI (A) 1-3/4 turns.

Fine Tuning
(Requires Accurate Tachometer)

Start engine and allow to warm to operating temperature (minimum
2 - 3 minutes) while varying engine speed from idle to full throttle.

Always begin fine tuning with LO (B) needle.
a. Lean drop-off - With engine idling, turn LO (B) needle slowly

CW (in) to lean drop-off point. RPM will increase, then
abruptly drop-off. Note this position. (1)

b. Rich drop-off - With engine idling, slowly turn LO (B) needle

CCW (out) to rich drop-off point. RPM will increase then
gradually slow and drop-off. Note this position. (2)

c. Final setting - Set needle at mid point between lean rich drop-

off points. (3)

d. Turn needle 1/8 turn CCW (out) making mixture slightly

richer. (4)

HI speed adjustment.
Adjust HI (A) needle with tachometer. Refer to Wide Open Throttle
RPM settings listed in "Specifications" on page 13.

Check idle speed and reset if necessary. If tachometer is available,
idle speed should be set to the specifications found on page 13
"Specifications" of this manual.

WARNING DANGER

When carburetor adjustment is completed, saw chain should not
move at idle, otherwise serious personal injury may result.

NOTE
If carburetor has limiter caps follow "Carburetor Adjustment" procedures for Emission models on previous page.

Idle Speed Adjustment

Turn "idle" speed adjustment screw (C) CW (clockwise) until cutting attachment begins to turn, then turn screw out CCW
(counter clockwise) until cutting attachment stops turning. Turn screw out, CCW an additional 1/4 turn.

WARNING DANGER

Saw chain must not turn when unit is idling, otherwise serious personal injury may result.

CARBURETOR

ADJUSTMENT

Non Emissions Models

Level 2
Tools Required: Screwdriver with 2mm blade width, Tachometer
(ECHO P/N 99051130017)

Parts required: None.
