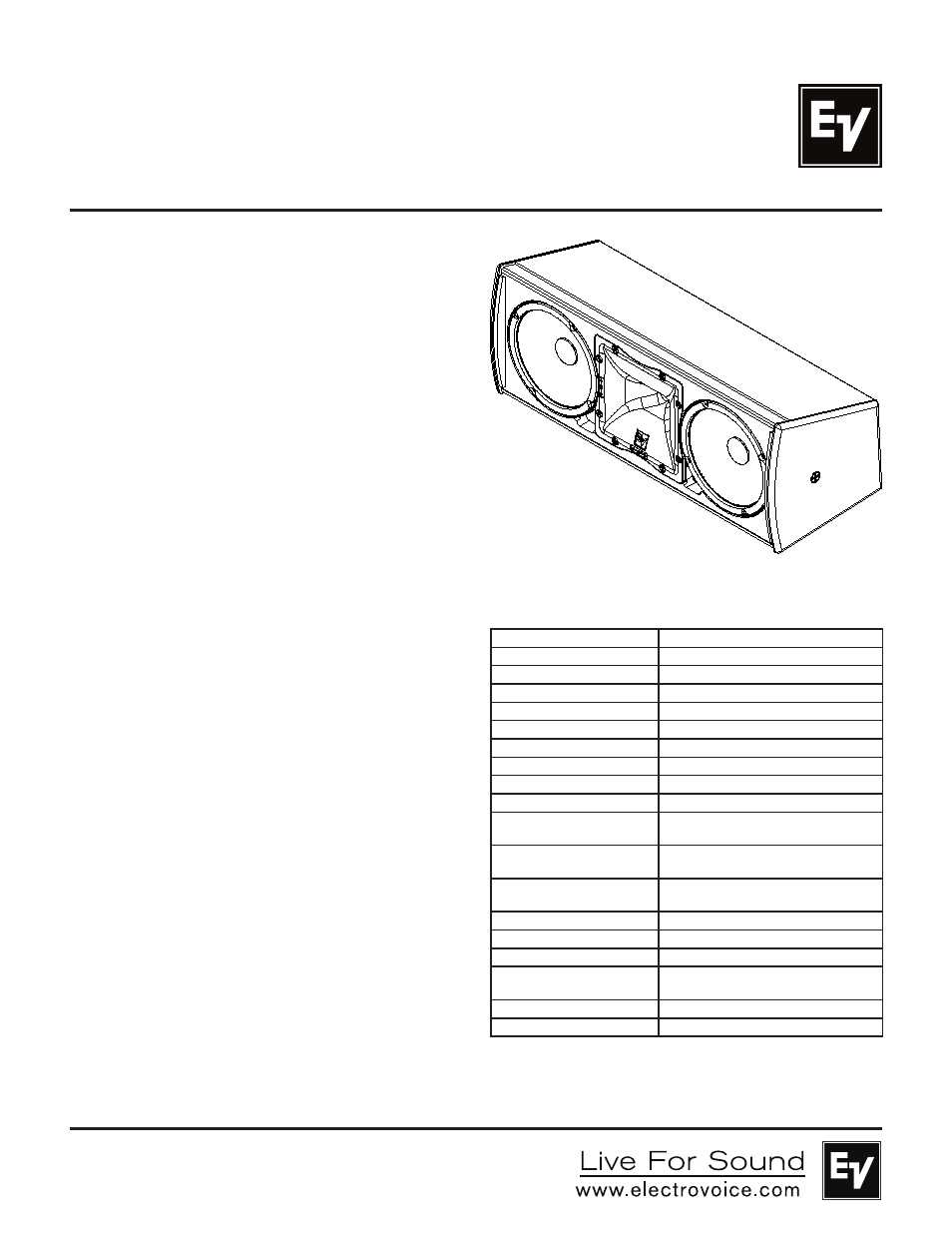

Electro-Voice EVU-2062/95 - Manual

EVU-2062/95
Dual 6.5” Two-Way
90° x 50° Full-Range
Loudspeaker System
General Description: Technical Specifications:
Key Features:
1.3” (33 mm) diaphragm, 1.4” (36 mm) exit pure •
titanium compression driver
Dual 6.5” (165 mm) LF transducers
•
Advanced third-order crossover network with •
HF protection
Coverage pattern: 90° x 50° Constant
•
Directivity TM rotatable waveguide
94 dB sensitivity, 125 dB maximum SPL •
System rating: 300 W continuous, 1200 W peak •
Universal U-bracket included •
70.7/100-V transformer accessory optional •
NL4 cover plate accessory optional •
(6) M8 threaded suspension points •
The Electro-Voice EVU-2062/95 is a compact two-way loudspeaker
system that can be used in a variety of applications where high qual-
ity sound reinforcement is required in an ultra-compact lightweight
enclosure. The enclosure design utilizes asymmetric angles to
maintain tight clearances to wall and ceilings while providing optimal
coverage patterns making it ideal to blend into surroundings. This
design was optimized for wall, stage lip and under balcony applica-
tions.
The EVU-2062/95 incorporates the ICT-1-8, a high-output 1.3” dia-
phragm titanium compression driver coupled to a Constant Direc-
tivity™ 90° x 50° rotatable waveguide. The ICT-6.5-16 woofer was
developed using FEA optimization to provide the highest sensitivity
while achieving the highest level of speech intelligibility. The cross-
over design uses 18-dB-per-octave slopes with equalization for very
smooth response in the vocal range, linear off-axis response and a
protection circuit for long term reliability.
The EVU series is constructed of 9-ply hardwood plywood enclo-
sures with six integral M8 suspension points to support a wide va-
riety of mounting positions. The EVU system is finished in textured
paint, available in either white or black. Each EVU system includes
a universal U-bracket to facilitate mounting. The U-bracket provides
full unobstructed rotation of the loudspeaker (330° unobstructed ro-
tation if the transformer kit is installed). Additional mounting points
are located on the rear of the enclosure for use with an Omnimount™
type bracket. An available 70.7/100-V transformer kit may be easily
mounted over the input panel for use in distributed systems. All of
these features give you the flexibility to address a large range of
venues, while quickly and precisely supporting customer require-
ments.
Freq. Response 1 (-3 dB): 100 Hz - 16 kHz
Freq. Range 1 (-10 dB): 70 Hz - 20 kHz
Rotatable Coverage: 90° x 50°
Rec. High-Pass Frequency: 90 Hz
Passive Crossover Freq.: 2400 Hz
Axial Sensitivity 1 : 94 dB (1 W/1 m)
Max. Calculated SPL 1 : 125 dB
Passive Power Handling 2 : 300 W continuous, 1200 W peak
Impedance: 8 ohms (nominal), 6.0 ohms (min.)
LF Transducers: Dual ICT-6.5-16, 6.5” (165mm) drivers
HF Transducer: ICT-1-8, 1.3” (33mm) diaphragm
compression driver
Connectors: Single four-pin 12 AWG Phoenix/Euro
Block screw-terminals
Enclosure: 9-ply hardwood plywood with
textured paint
Grille: 18 GA steel with cloth
Environmental: IEC 60529
Suspension: (6) M8 threaded suspension points
Dimensions
(H x W x D):
8.21” x 20.98” x 8.14”
(208.4 mm x 532.9 mm x 206.7 mm)
Net Weight: 25.0 lb (11.3 kg)
Shipping Weight: 31.2 lb (14.2 kg)
1 Half-space measurement.
2 EIA RS-426A, tested for eight hours.
