Continued
• Global compatibility — All IP Link products use industry standard Ethernet communication
protocols, including ARP, DHCP, ICMP (ping), TCP/IP, Telnet, HTTP, and SMTP.
• High performance architecture — Web pages are served many times faster, 6 Mbit/sec
transfer rate, than similar products.
• Multi-user support — Multiple, simultaneous connections enable each IP Link device to
support many concurrent users and improve system throughput by sending information
in parallel.
• Asset Management — The System 5 IP offers Web-based asset management
capabilities, specifically designed to work with products that include IP Link technology.
This includes proactive maintenance, event scheduling, remote technical support, and
theft alerts.
System 5 IP Series
S y S t e m S w I t c h e r S

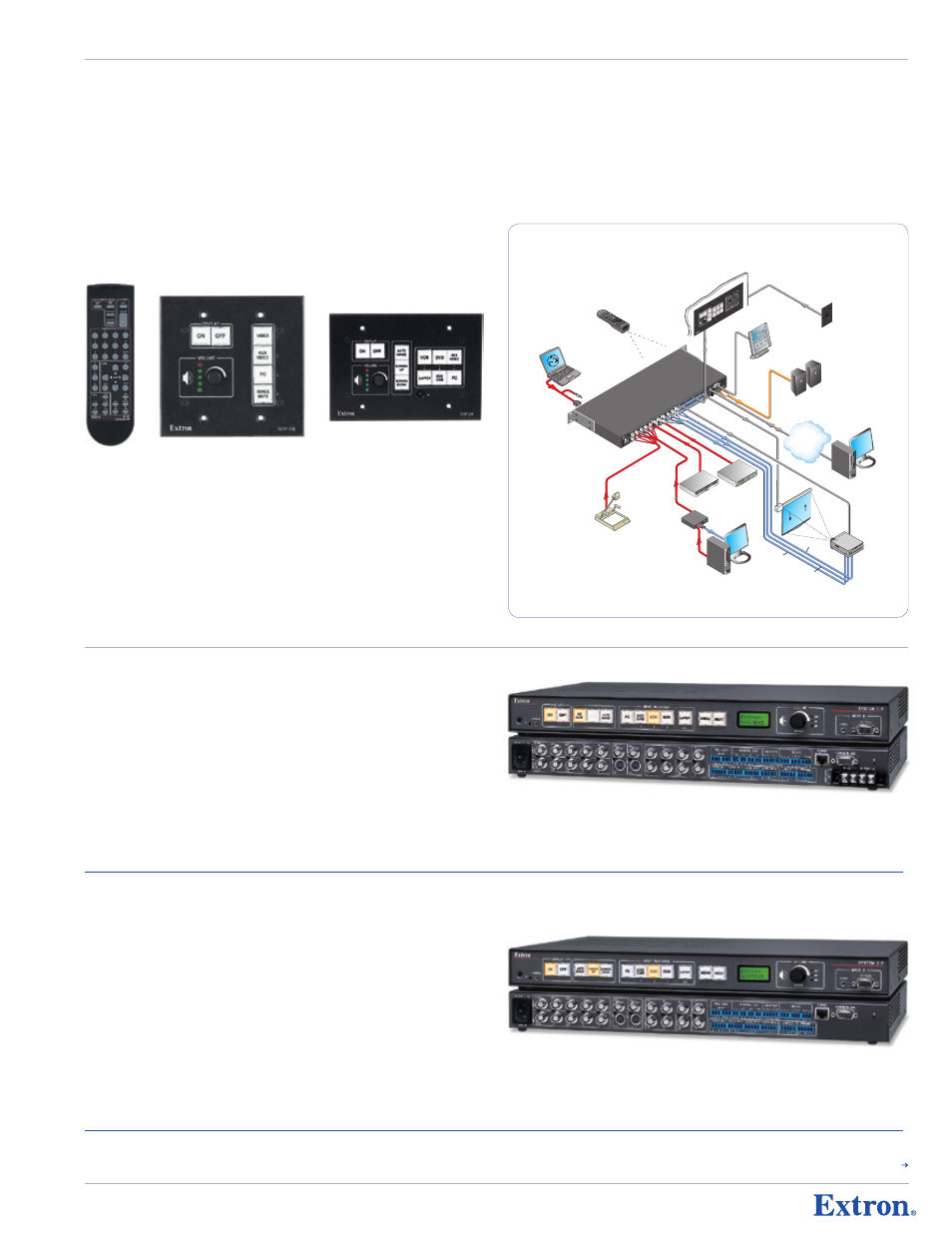

Control Options
System switcher control is provided via the front panel backlit buttons, the optional IR 402
remote control, or optional SCP 104 and SCP 226 Secondary Control Panels. The front
panel backlit input buttons of the System 5 IP can be individually labeled to ensure precise
identification of video and audio input settings. In addition, the front panel includes buttons for
display functions such as power, mute, video modes, and room controls — such as lowering or
raising a display screen, or powering lights on or off. As a simplified and cost-effective option,
the System 5 IP is also offered without front panel controls, but still provides the front panel
15-pin HD input connector for RGBHV.
IR 402
SCP 104
System 5 IP FPC
Switcher with Variable Preamp Audio Output and
Front Panel Controls
unique FeAtureS
• Variable preamp audio output - no amplifier
• Text and icon button labels included for easy identification of button features
System 5 IP FPC SA
Switcher with Stereo Amplifier and Front Panel Controls
unique FeAtureS
• Integrated stereo amplifier provides 40 watts, 2 x 20 watts rms, into 4 or
8 ohm speakers — Outputs amplified stereo audio on insulated screw terminals.
• Text and icon button labels included for easy identification of button features
deScriPtion (continued)
SCP 226
The optional IR 402 remote, SCP 104, and SCP 226 Secondary Control Panels both duplicate
the System 5 IP's front panel functions and enable users to remotely control the switching,
projector, and room functions of the switcher. The SCP 104 and SCP 226 AAP models include
an opening that will accommodate up to four single space AAP - Architectural Adapter Plates.
There are hundreds of AAPs to choose from, some of which offer pass-through connections, as
well as IR control options. Either control panel can be mounted in a wall, podium, or table, and
is available in gray, black, or white to blend in with the environment.
modeL
VerSion deScriPtion PArt #
System 5 IP FPC Switcher w/ Front Panel Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-397-83
modeL
VerSion deScriPtion PArt #
System 5 IP FPC SA Switcher w/ Front Panel Control & Amp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-397-81
