Electrolux Handling System

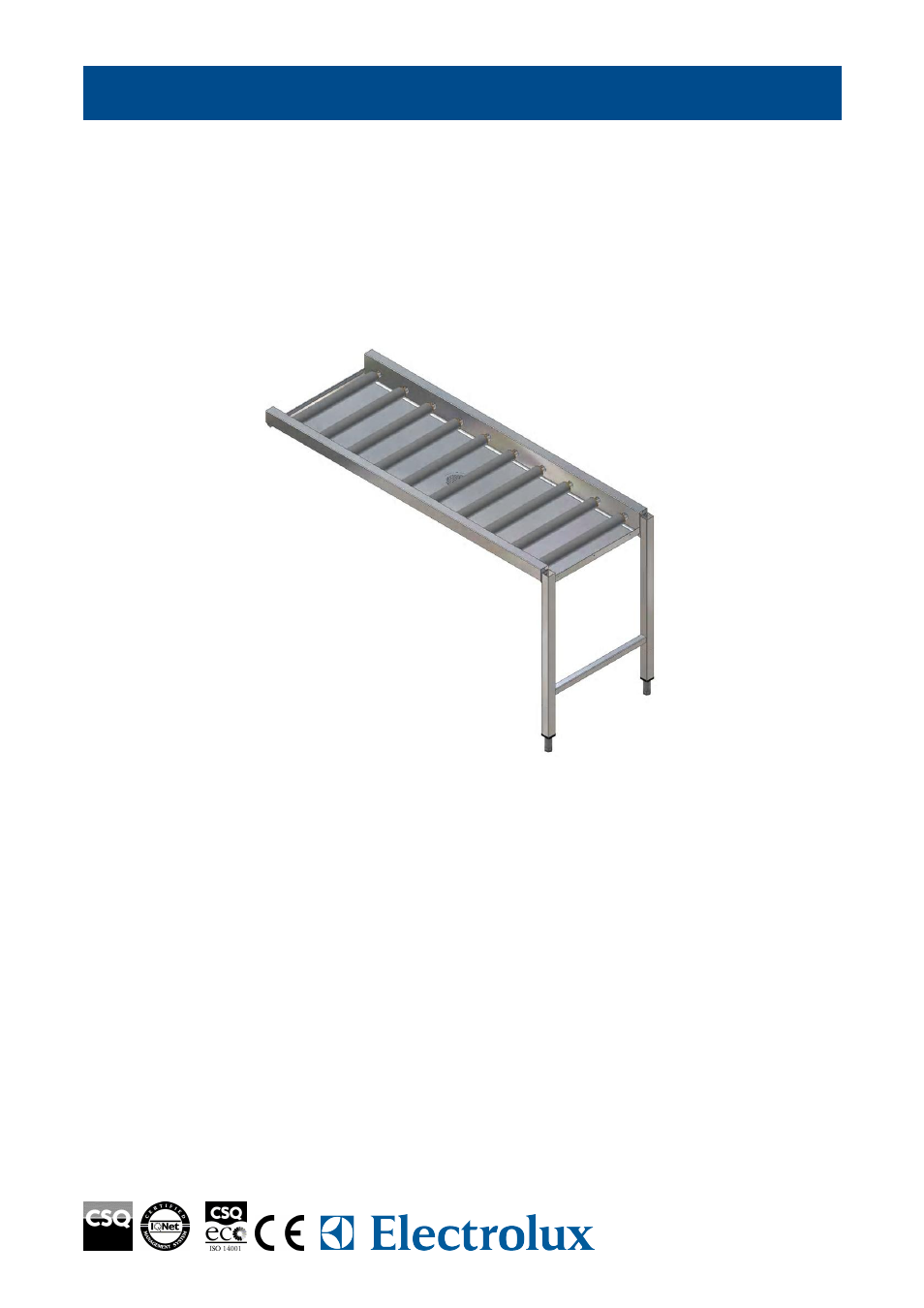

Roller Conveyor long rollers
Some Electrolux dishwasher models can perform to their full potential, if combined with
the Electrolux Handling System range. The modular system allows to design ergonomic
and reliable solutions to handle, transport and sort kitchenware, obtaining the most
effective flow in the dishwashing room. The wide range contains cord conveyors for trays,
manual, motorized and dishwasher driven sorting tables and a variety of roller, slide and
cord conveyors for baskets.
865008
EASY TO INSTALL
• ±50mm adjustable feet.
• The conveyors are supplied as
knock-down.
• Connection to another rack
conveyor or the dishwasher is
possible on the left or the right.
• Thick welded flanges for sturdy
connection between the units.
• Provided with "key holes" and
"snap on" system for fast and
easy installation.
• "Snap on" system reduces the
number of screws needed. Easy to
assemble and clean.
• The drain can be turned 360°.
• Two legs included as standard.
• Self bearing undershelf
eliminates the need for additional
frames. EASY TO USE
• Manual rack movement with
long rollers.
• Designed for 500x500mm
dishwashing baskets.
• The conveyors can be equipped
with useful accessories like an
end-limit switch and under
shelves.
• Improved end limit switch for
better cleanibility and reliability.
EASY TO CLEAN
• All surfaces are smooth with
polished finish.
• All corners in the bottom of the
basin are rounded.
• The plastic rollers are easy to
remove.
• The sloping bottom of the basin
grants a smooth and rapid
drainage. EASY TO MAINTAIN
• Basin constructed in AISI 304
1,2 mm stainless steel.
• AISI 304 feet and square
40x40mm tubular legs.
EASY ON THE ENVIRONMENT
• 98% recyclable by weight.
• CFC free packaging.
• Developed and produced in ISO
9001 certified factory.
