NYLON LINE REPLACEMENT
Level 1.
Parts Required: ECHO 2.4mm (0.095 in.) Nylon Trimmer Line 12m (40
feet [two 20 ft. sections])

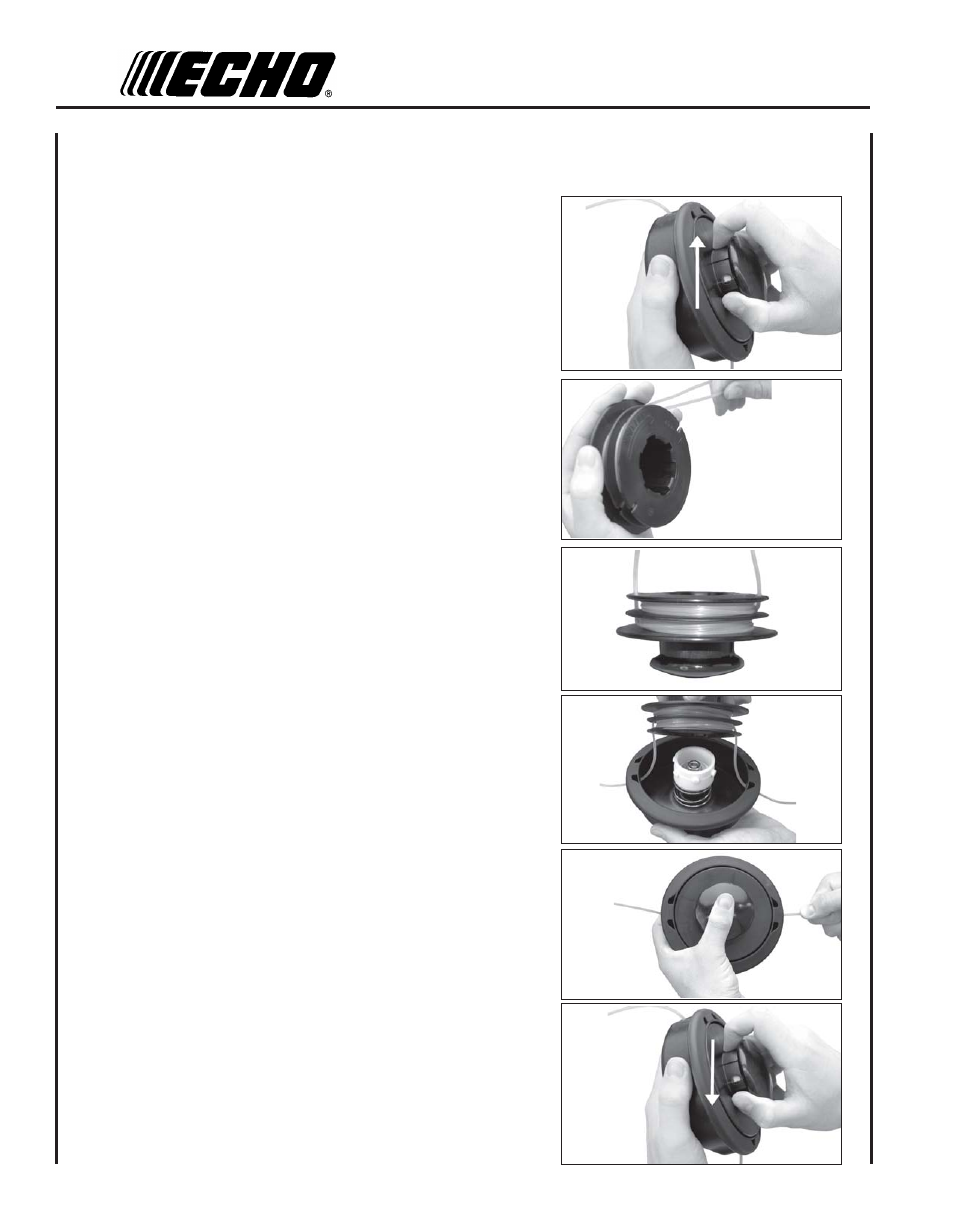

ECHOMATIC PRO TRIMMER HEAD
1. Do not push spool in. Hold drum and turn spool clockwise until
peg clicks and disappears from hole. Pull spool out of drum.
2. Place ends of two 20 ft. x .095 in. Crossfire TM trimmer lines into
holes in spool, one on each side of barrier.
3. Wind both lines tightly and evenly (one on each side of barrier)
in the direction of arrow on bottom of spool.
4. Place ends of lines into notches in spool, leaving 6 in. protruding.
5. Feed ends of line outward through eyelets in drum.
6. Turn inner drive so that pegs in drive align with grooves in spool,
and push spool into drum
7. Hold spool and drum securely with one hand, and pull each line to
disengage from notches.
8. Hold drum and twist spool counter clockwise until peg clicks into
hole.
9. Trim lines to 8 in. length.
