in Figure 6.
(7) Carefully align the mounting plate and screw into place. Connect the wires to the terminal block. With
recessed wiring, ensure the rear gasket seals around the edge of the hole in the ceiling or wall. This is
to prevent air draughts affecting the CO gas entering the alarm. If the orifice is not closed off by the gas-
ket it should be sealed with silicone rubber or equivalent.
Replace the wiring cover.
L N IC
EARTH (IF PRESENT)
L - LIVE
N - NEUTRAL
IC - INTERCONNECT
TERMINAL SCREWS
RECESSED WIRING AREA
MAINS WIRING
15
L N IC
KNOCK OUT FOR
SURFACE
WIRING
CONDUIT
WIRING
CONDUIT
INSERT SCREWDRIVER TO LIFT
AND REMOVE WIRE COVER
KNOCK OUT
FOR SURFACE WIRING
CONDUIT
SEALING GASKET (MUST BE IN PLACE)
WIRING
CONDUIT

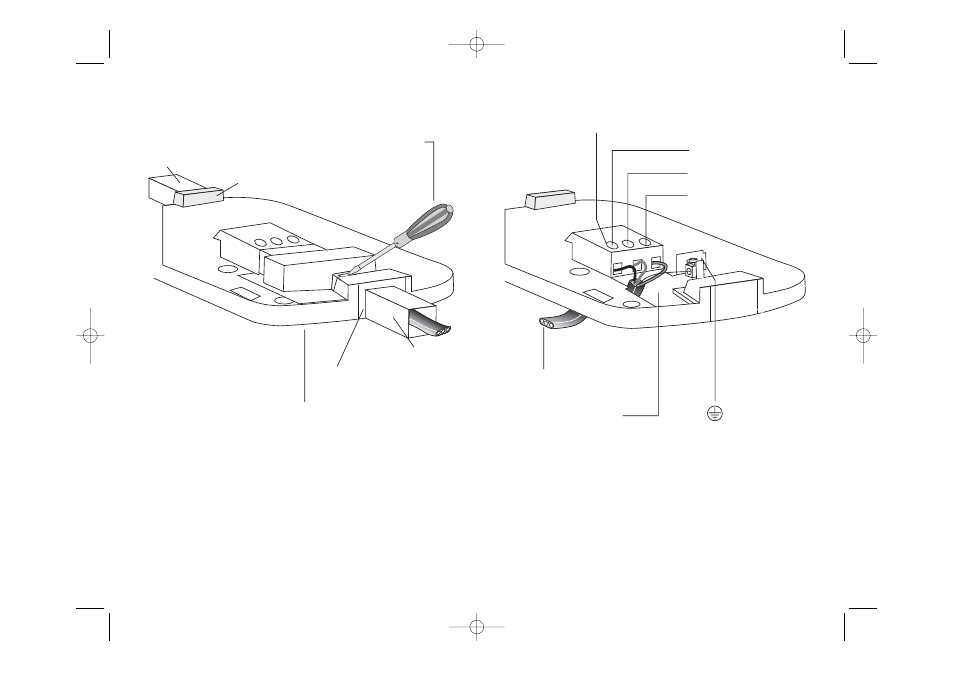

Figure 5 - Surface Wiring Figure 6 - Recessed Wiring
