Control Elements and Connections
12
NetMax N8000 System Controller
Owner’s manual

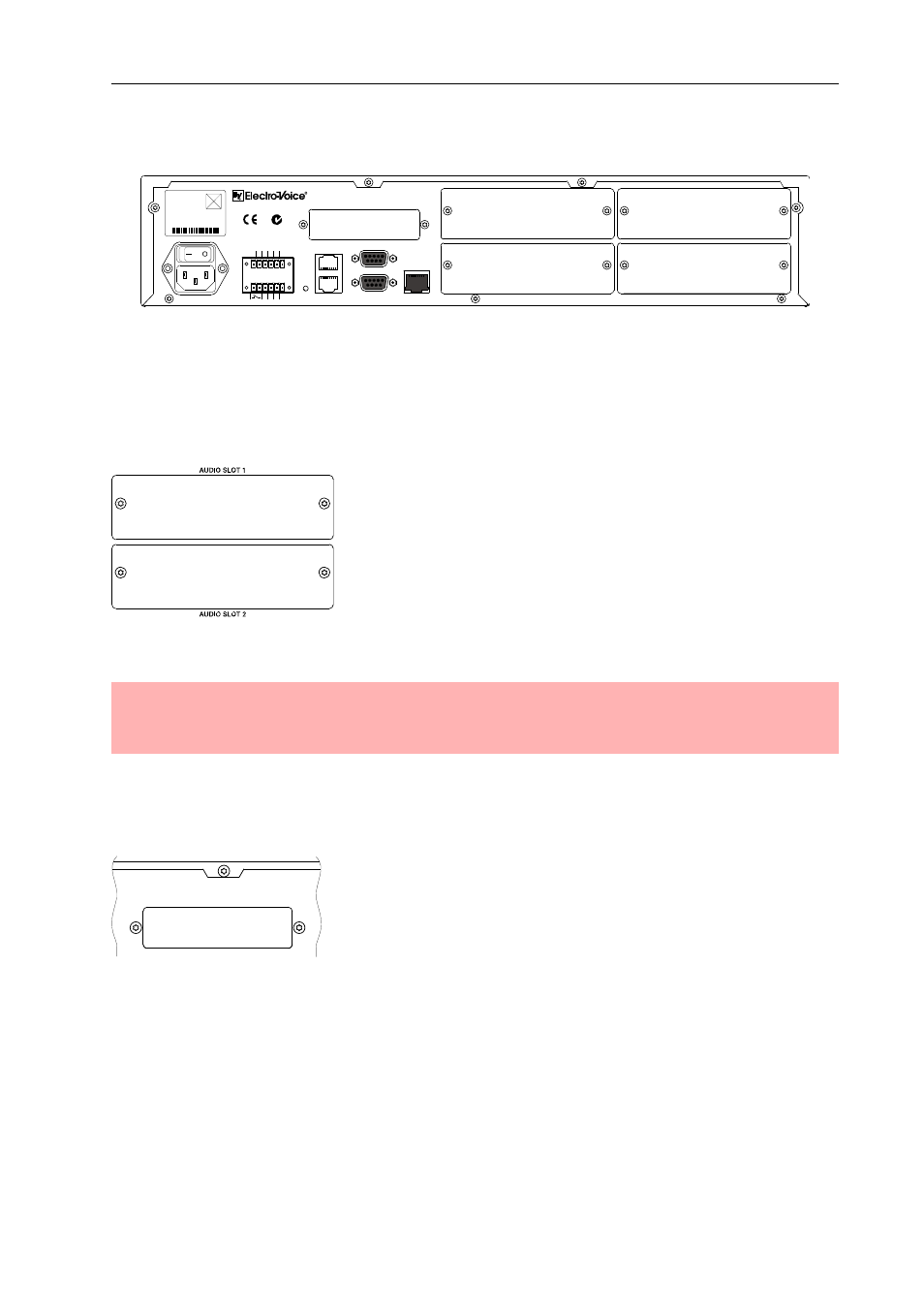

2.2 Rear Panel
There are all connections for analog and digital audio signals, control interfaces and the power
supply at the rear panel of the N8000.
AUDIO SLOTs
The AUDIO SLOTs 1 - 4 are module slots for the installation of
NetMax audio modules. There are both analog and digital
input and output modules available. Also, a module for
microphone input sensitivity is optionally available. Each slot
can accept any module so you can equip those inputs and
outputs which you need for your specific application. The
N8000 detects the type of the module automatically and offers
the corresponding configuration possibilities.
Network Module Slot
This slot is provided for the installation of a network module,
e.g. CM-1 CobraNet™ module. There are all 64 audio
channels - 32 inputs and 32 outputs - internally available at
this slot. The CM-1 allows up to 32 digital audio input signals
and 32 digital audio output signals to be transmitted via a
CobraNet™ network simultaneously. Thus, several N8000
NetMax system controllers can be connected to create a large, distributed audio system. The
ATTENTION:
The N8000 has to be switched off if you want to change or install a module. You will find
detailed instructions in the data sheet of the corresponding module.
REMOTE
CAN BUS
ETHERNET
RS-232
PORT 1
PORT 2
4 3 2 1
5V/200mA 4 3 2
CONTROL PORT
AUDIO SLOT 4
AUDIO SLOT 3
AUDIO SLOT 2
AUDIO SLOT 1
GND 10V REF
N378
BURNSVILLE, MN, U.S.A.
STATUS
RELAY
OUTPUTS
INPUTS
0-10V
SERIAL:
MODEL: N8000
MADE IN GERMANY
100-240 V~ 50-60 Hz/ 90 W
170323 03150 10001
C US
