5
Inde Inde Inde Inde Index to P x to P x to P x to P x to Par ar ar ar arts and Contr ts and Contr ts and Contr ts and Contr ts and Controls (Contin ols (Contin ols (Contin ols (Contin ols (Continued) ued) ued) ued) ued)

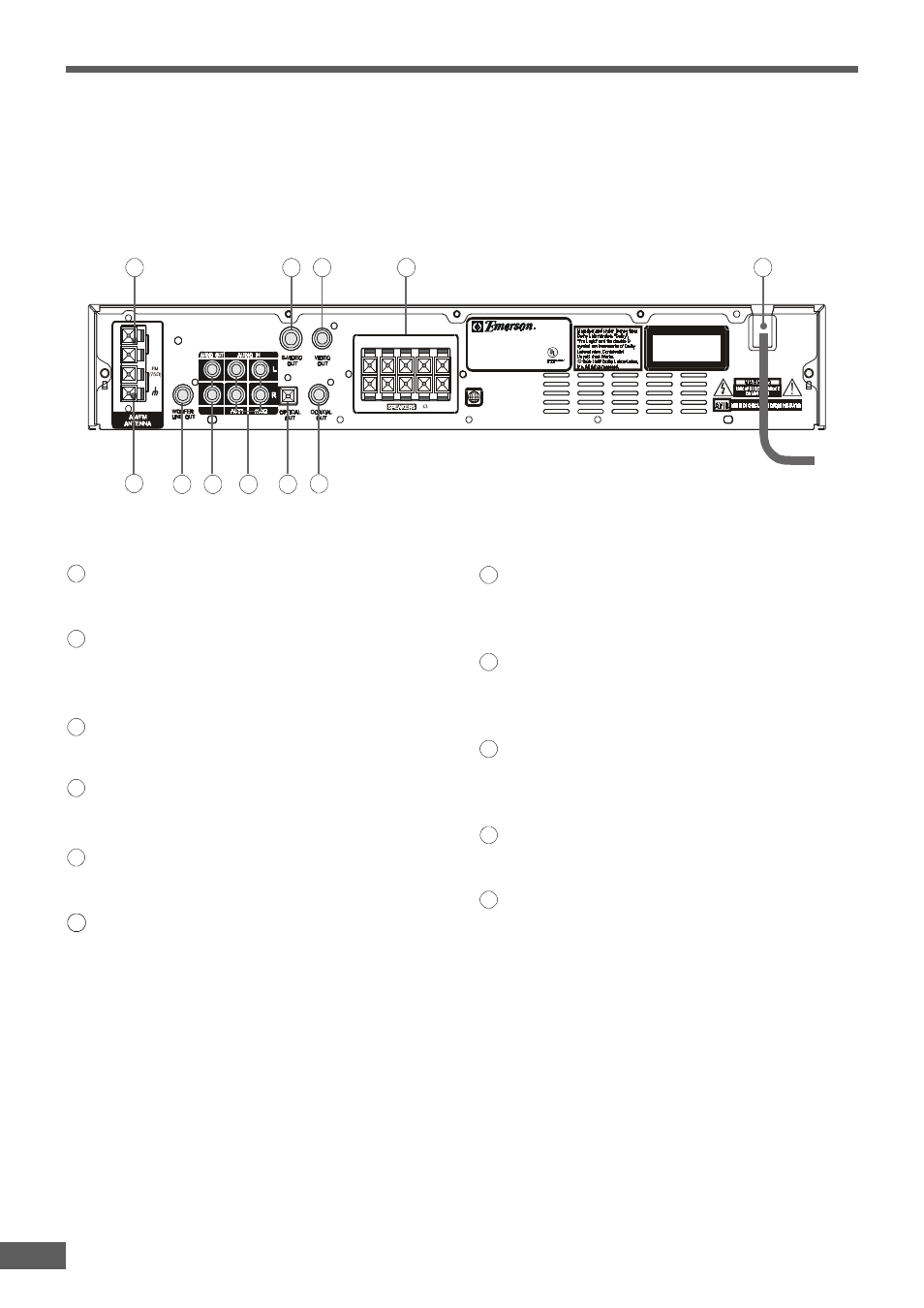

R R R R Rear P ear P ear P ear P ear Panel anel anel anel anel
Refer to the pages indicated in parentheses for details.
1 AM antenna terminal (page 13)
Connect to the supplied AM loop antenna.
2 S-VIDEO OUT jack (page 14)
Connect to a TV S-Video input connector.
(S-Video cable not included.)
3 VIDEO OUT jack (page 14)
Connect to a TV Video input connector.
4 SPEAKER output terminals (page 12)
Connect to the supplied speakers.
5 AC power cord (page 14)
Connect to a AC 120V / 60Hz wall outlet.
6 COAXIAL OUT jack (page 14)
Connect to an optional receiver.
(Cable not included.)
7 OPTICAL OUT jack (page 14)
Connect to an optional receiver.
(Cable not included.)
8 AUX1 and AUX2 audio line input jacks (page 14)
Connect to a TV set and a VCR, or other optional source.
(Connection cables not included.)
9 AUDIO OUT jacks (page 14)
Connect to a TV set, or other stereo receiver.
(Connection cables not included.)
10 WOOFER LINE OUT jack (page 12)
Connect to the supplied active subwoofer.
11 FM 75 ohm DIPOLE antenna terminal (page 13)
Connect to the supplied FM antenna.
MODEL NO.:AV301
AC 120V 60Hz 250WATTS
E3 6201
FL C FR SL SR
(4 )
1
CLASS 1
LASER PRODUCT
AM
DVD VIDEO PLAYER
POW ER SOURCE AC 120V 60Hz 160WATT S
EMERSON RADIO CORP.,
9 ENT IN ROAD
PA RSIPP ANY.NJ07054-0430
M A D E IN C H IN A
MOD EL NO.:AV300
ZZ R
2
10 9 8 7 6
5 4 3 1
11
