SPECIFICATIONS
Model No. EAC421
Voltage 120V
Frequency 60Hz
Wattage 250W
Net Weight 27 pounds

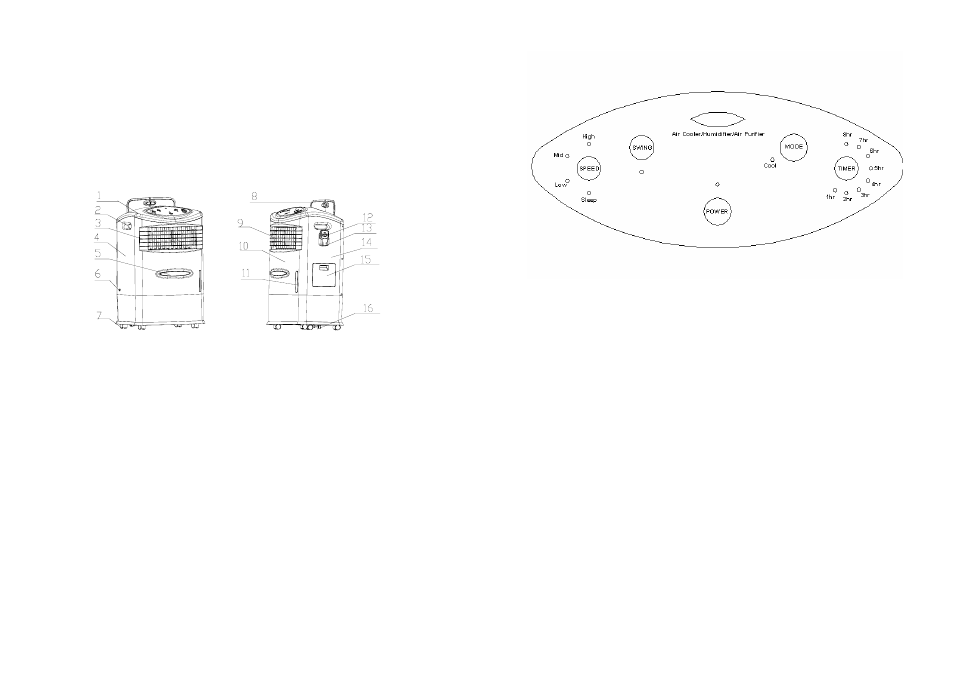

PARTS DESCRIPTION
1 Top cover
9 Air vent
2 Handle 10 Front cover
3 Horizontal louvers 11 Water level
4 Left side 12 Remote control
5 Front cover ornament 13 Remote control holder
6 Power cord hole
14 Right side
7 Caster wheels 15 Water inlet panel
8 Top cover lid 16 Drain
CONTROL PANEL
OPERATING INSTRUCTIONS
• Choose a suitable location for your unit; as noted in the
first section, the unit will produce greater cooling when
located in an area in which air can “flow through.”
• This unit can be operated by the controls on the control
panel or with the remote control
COOLING OPERATION
• Remove the plug from the electrical socket.
• Open the top cover lid or water inlet panel and pour clean
water into tank. The water inlet panel will allow you to pour
more water in, faster. Additionally, some ice cubes will
increase the cooling performance. Then connect to the
power supply.
• Press the POWER button to turn the unit on. The fan will
start at MEDIUM speed, and after few seconds it will
switch to LOW speed.
• Press the SPEED button to increase or decrease the
speed.
