26 ……………………………………………………………………. INSTRUCTION MANUAL

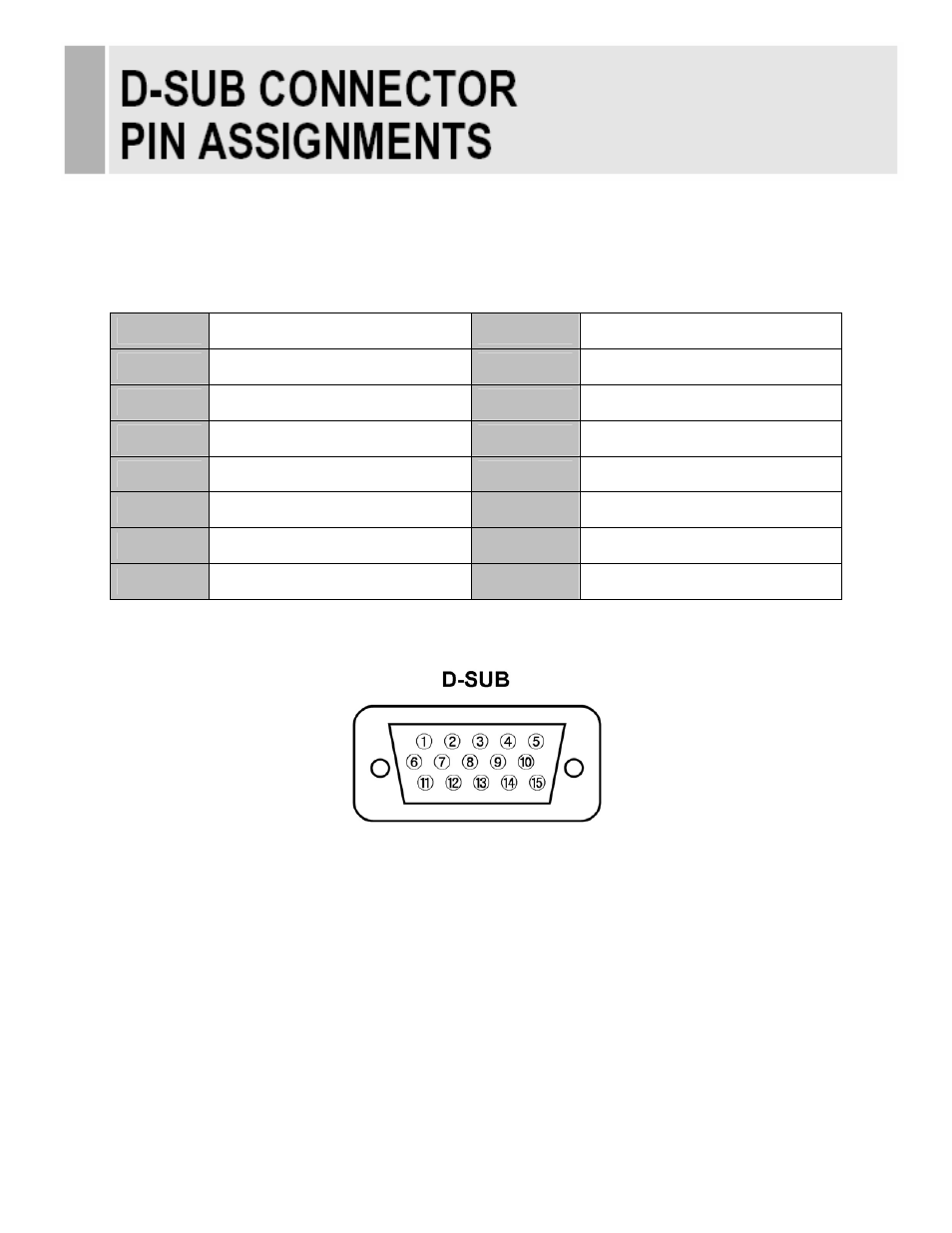

PIN ASSIGNMENTS

Pin 1

RED VIDEO

9

2 GREEN

VIDEO

10 SIGNAL

CABLE

DETECT

3 BLUE

VIDEO

11 GROUND

4 GROUND

12 SDA(for

DDC)

5 GROUND

13

H-SYNC.(or H+V SYNC.)

6 RED

GROUND

14 V-SYNC.

7 GREEN

GROUND

15 SCL(for

DDC)

8 BLUE

GROUND



ACCESSORY

1. POWER CORD
2. USER’S MANUAL
3. PC cable
4. Adaptor
5. Trigger Cable(Option)
6. Wall mount (Option)
7. Rack mount (Option)
