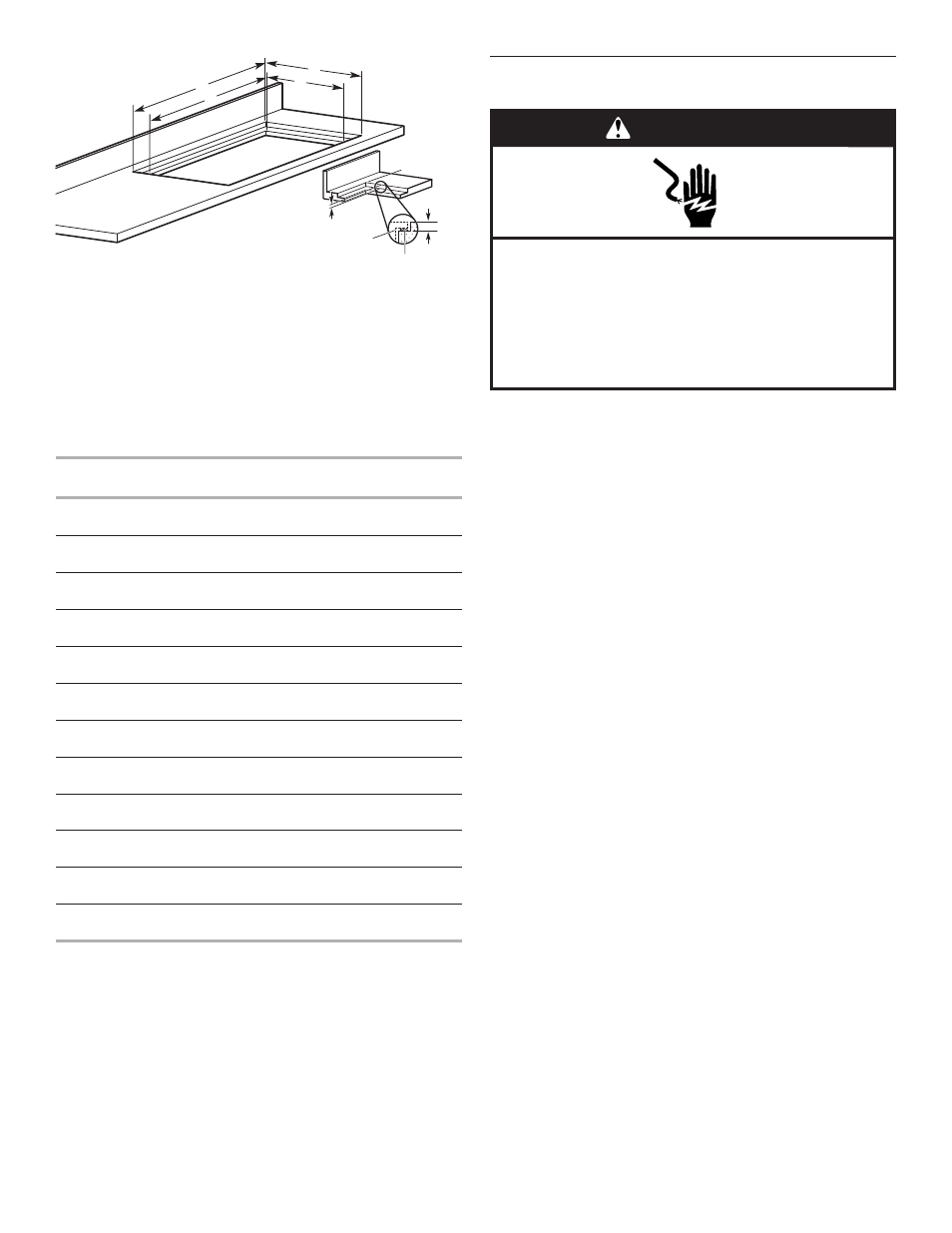

Flush Install Dimension Table
Units
Recessed Area
Width (D)
Cutout
Width (C)
One 15" (38.1 cm) unit 15 1 /
8
"
(38.4 cm)
14 3 /
8
"
(36.5 cm)
Two 15" (38.1 cm) units 30 1 /
8
"
(76.5 cm)
29 3 /
8
"
(74.6 cm)
Three 15" (38.1 cm) units 45 1 /
8
"
(114.6 cm)
44 7 /
16
"
(112.9 cm)
Four 15" (38.1 cm) units 60 1 /
8
"
(152.7 cm)
59 7 /
16
"
(151.0 cm)
24" (61.0 cm) cooktop 24 1 /
8
" (61.3 cm) 23 3 /
8
"
(59.4 cm)
24" (61.0 cm) and
one 15" (38.1 cm) cooktop
39 1 /
8
"
(99.4 cm)
38 3 /
16
"
(97.0 cm)
24" (61.0 cm) and
two 15" (38.1 cm) cooktop
54 1 /
8
"
(137.5 cm)
53 3 /
8
"
(135.6 cm)
30" (76.2 cm) cooktop 30 1 /
8
" (76.5 cm) 29 3 /
8
"
(74.6 cm)
30" (76.2 cm) cooktop and
one 15" (38.1 cm) unit
45 1 /
8
"
(114.6 cm)
44 3 /
16
"
(112.2 cm)
30" (76.2 cm) cooktop and
two 15" (38.1 cm) units
60 1 /
8
"
(152.7 cm)
59 3 /
8
"
(150.8 cm)
36" (91.4 cm) cooktop 36 1 /
8
"
(91.8 cm)
35 3 /
8
"
(89.9 cm)
36" (91.4 cm) cooktop and
one 15" (38.1 cm) unit
51 1 /
8
"
(129.9 cm)
50 3 /
16
"
(127.5 cm)
IMPORTANT: If multiple units are installed side by side, the
mounting bridge kit W11031680 is needed for proper installation.
Electrical Requirements
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path and wire gauge are in accordance with local
codes.
Check with a qualified electrical installer if you are not sure the
cooktop is properly grounded.
Make sure that the electrical connection and wire size are
adequate and in conformance with the National Electrical Code,
ANSI/NFPA 70—latest edition or CSA Standards C22.1—94,
Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest
edition, and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
D
C
A
B
E
F
E
Cooktop
Foam Strip (optional)
A. Recessed area length 21 3 /
16
" (53.8 cm)
B. Cutout length 20 3 /
8
" (51.8 cm)
C. See the “Flush Install Dimension” table.
D. See the “Flush Install Dimension” table.
E. Recessed area depth 11/64" (4.3 mm)
F. Recessed area radius 5/64" (2.0 mm) maximum
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge copper wire.
Electrically ground cooktop.
Failure to follow these instructions can result in death,
fire, or electrical shock.
