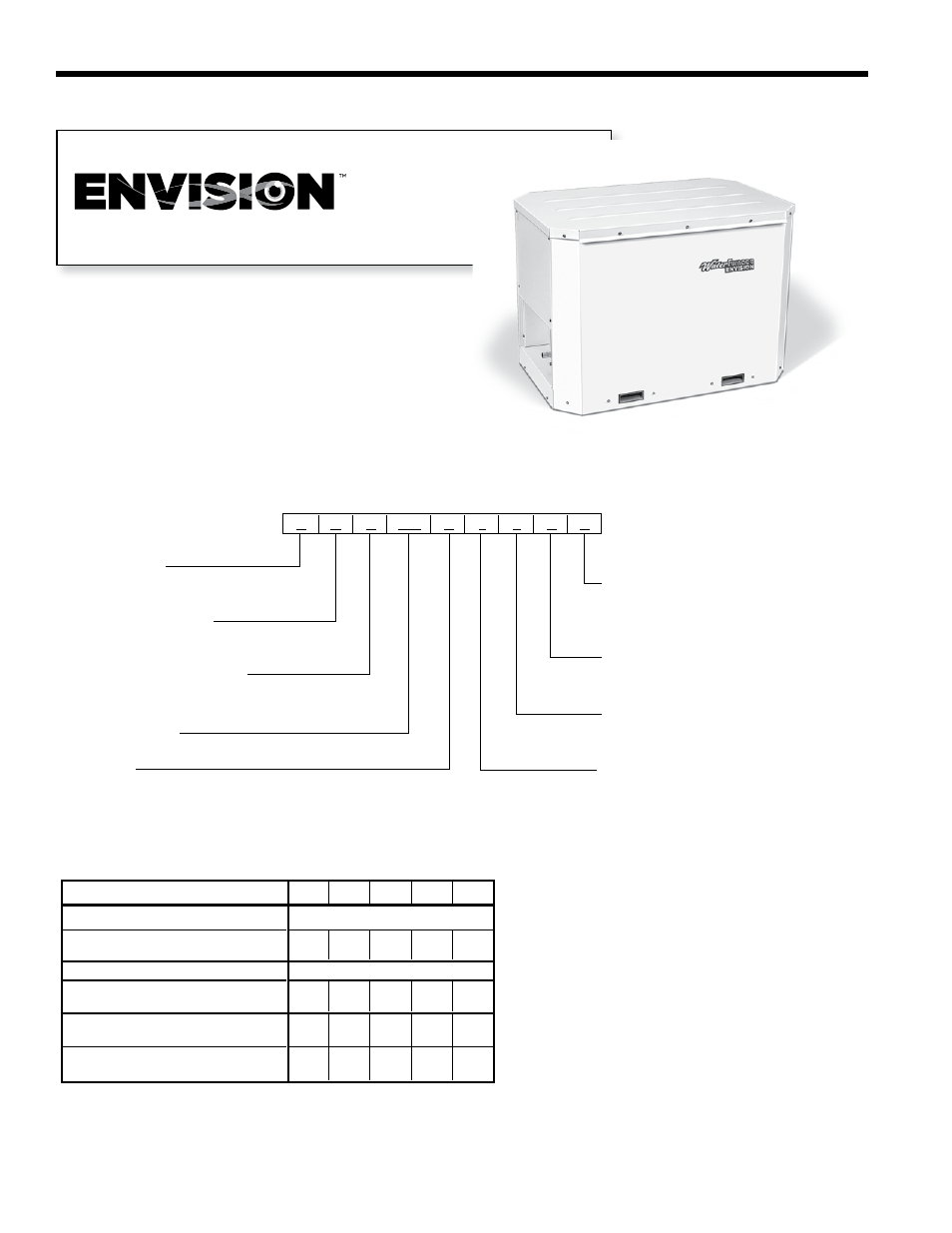

NS SPLIT INSTALLATION MANUAL
Model Nomenclature
1 2 3 4-6 7 8 9 10 11
N D S 049 A 1 0 A C
Model Type
N = Envision
Coax Options
C = Copper
Compressor Type N = Cupronickel
D = Dual Capacity
Future Option
Cabinet Configuration A =
S = Outdoor Split
Hot Water Option
Unit Capacity 0 = None
Vintage Voltage
A = Current 1 = 208-230/60/1
Physical Characteristics
Model 026 038 049 064 72
Compressor (1 each)
Factory Charge R410a, oz [kg]
52
[1.47]
56
[1.59]
90
[2.55]
92
[2.61]
104
[2.95]
Coax and Water Piping
Coax & Piping Water Volume - gal [l]
0.7
[2.6]
1.3
[4.9]
1.6
[6.1]
1.6
[6.1]
2.3
[8.7]
Weight - Operating, lb [kg]
189
[186]
236
[107]
250
[113]
271
[123]
290
[132]
Weight - Packaged, lb [kg]
209
[95] 256
[116]
270
[122]
291
[132]
310
[141]
4/9/08
Notes:
All units have TXV expansion devices, and 1/2" [12.2mm] & 3/4" [19.1mm] electrical knockouts.
Dual Capacity Scroll
