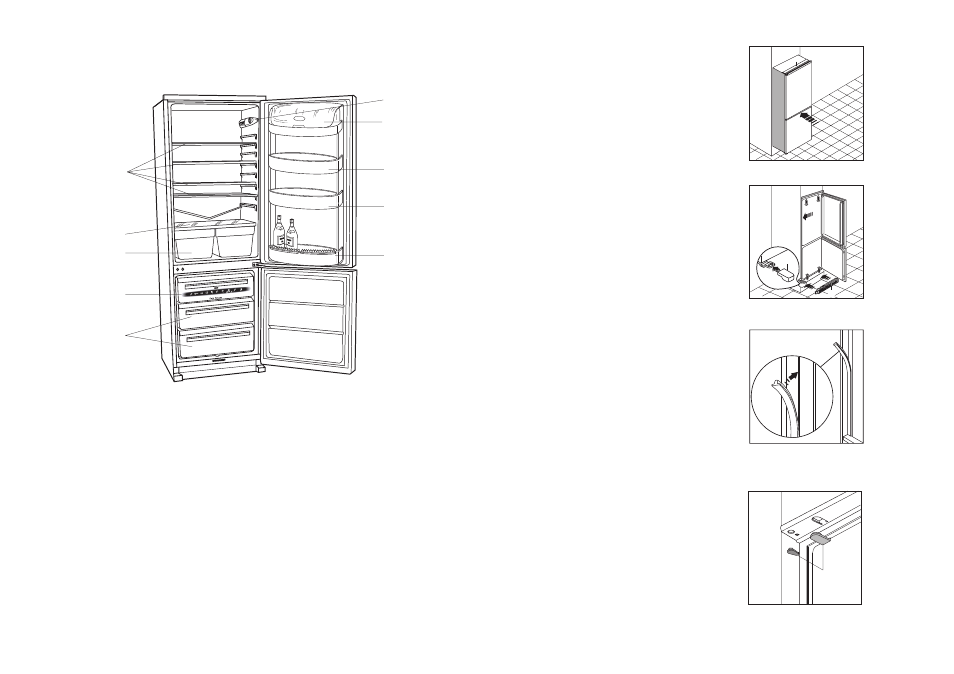

DESCRIPTION OF THE APPLIANCE
I
H
G
F
J
A
B
D
C
E
10 - 10 - 10 - 10 - 3 - 3 - 3 - 3 - 3 - 4 1 -
A - Thermostat control for fridge and freezer compartments
B - Dairy compartment
C - Can storage shelf with egg tray
D - Can storage shelf
E - Bottle storage shelf
F - Storing frozen food
G - Freezing fresh food
H - Salad drawers
I - Glass shelf
J - Glass shelves
17
Push appliance into housing until stop strip (A)
touches the kitchen unit.
Open the door and push the appliance against the
side of the kitchen unit opposite to that of appliance
hinges.
Fasten the appliance with 4 screws provided in the
kit included with the appliance.
Snap ventgrille (C) and hinge cover (D) into position
.
Press in the joint covers between the appliance and
the kitchen unit.
A
D023
D
C
D723
D724
D726
B
Apply covers (B) on joint cover lugs and into hinge
holes.
