Safety precautions

CycloneXL should only be used by adults and only for

normal vacuuming in a domestic environment. The

vacuum cleaner features double insulation and does

not need to be earthed. Disconnect the plug from the

mains before cleaning or maintenance of the vacuum

cleaner. Be sure to keep the vacuum cleaner in a dry

place. All servicing and repairs must be carried out by

an authorised Electrolux service centre.

Never vacuum:

• In wet areas.

• Close to flammable gases etc.

• When housing shows visible signs of damage.

Never vacuum:

• Sharp objects, fluids.

• Hot or cold cinders, lit cigarette butts, etc.

• Fine dust, for example from plaster, concrete, flour,

hot or cold ashes.

The above may cause serious damage to the motor

– damage which is not covered by the warranty.

Electrical cable precautions:

Regularly check that the cable is not damaged. Never

use the vacuum cleaner if the cable is damaged.

Damage to the machine’s cable is not covered by the

warranty.

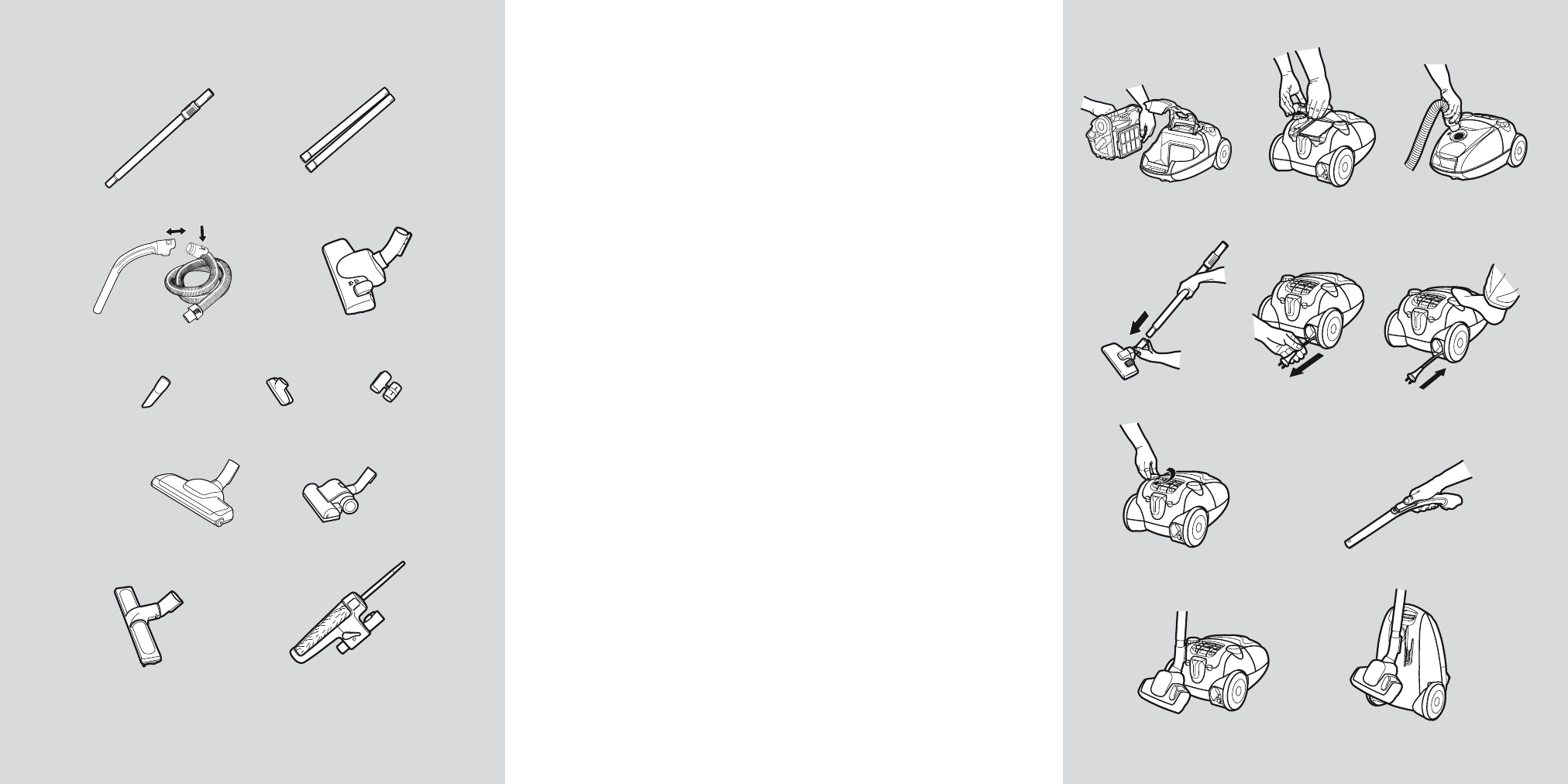

Accessories

1* Telescopic tube
* Extension tubes
Hose handle + hose
Combination floor

nozzle

Crevice nozzle
6 Upholstery nozzle

7 Accessories clip
8* Turbo nozzle
9* Parquet nozzle
10* Feather duster

* Certain models only.

Before starting

11 Open the front cover on the machine and check

that the motor filter and the dust container filter

are in place. (See also Cleaning/replacing the

filters.)

1* Open the back lid on the machine and check that

the exhaust filter is in place.

1 Insert the hose until the catches click to engage

(press the catches to release the hose).

Insert the hose into the hose handle until the

catches click to engage (press the catches to

release the hose).

1 Attach the extension tubes* or telescopic tube*

to the hose handle and nozzle by pushing and

twisting together. (Twist and pull apart to dis-

mantle.)

1 Extend the electric cable and connect it to the

mains. The vacuum cleaner is fitted with a cable

winder. Once the electric cable has been exten-

ded, it stays in that position.

16 To rewind the cable, press the cord rewinder

pedal. The cable will then rewind.

17a Start the vacuum cleaner by rotaring the power

control in the direction of the “Max” position.

Increase suction power by rotaring the control

further up to “Max” position. Stop the vacuum

cleaner by rotaring in the opposite direction to

“Off” position.

In order to achieve an optimal cyclone effect in the

cleaner, the power regulation should always be in the

“Max” position.
17b* Suction power can also be adjusted by using the

suction control on the hose handle.

18 Ideal parking position for pausing (18a) and

storing (18b).

* Certain models only.

17a

18a

18b

17b
