4. Hold the transducer and bracket assembly against the transom. The
transducer should be roughly parallel to the ground. The bottom of the
transducer bracket should be in line with the bottom of the hull.
Don't
let the bracket extend below the hull!
Mark the center of the slots for
the mounting holes. Drill two 5/32" holes in the marked locations for
the #10 screws supplied with the transducer.
5. Remove the transducer from the bracket and re-assemble it with the
cable passing through the bracket over the bolt as shown below. At-
tach the transducer to the transom. Slide the transducer up or down
until it’s aligned properly on the transom as shown below. Tighten the
bracket’s mounting screws. Adjust the transducer so that it’s parallel to
the ground and tighten the lock nut until it touches the flat washer, then
add 1/4 turn.
Don’t over tighten the lock nut!
If you do, the transducer
won’t “kick-up” if it strikes an object in the water.

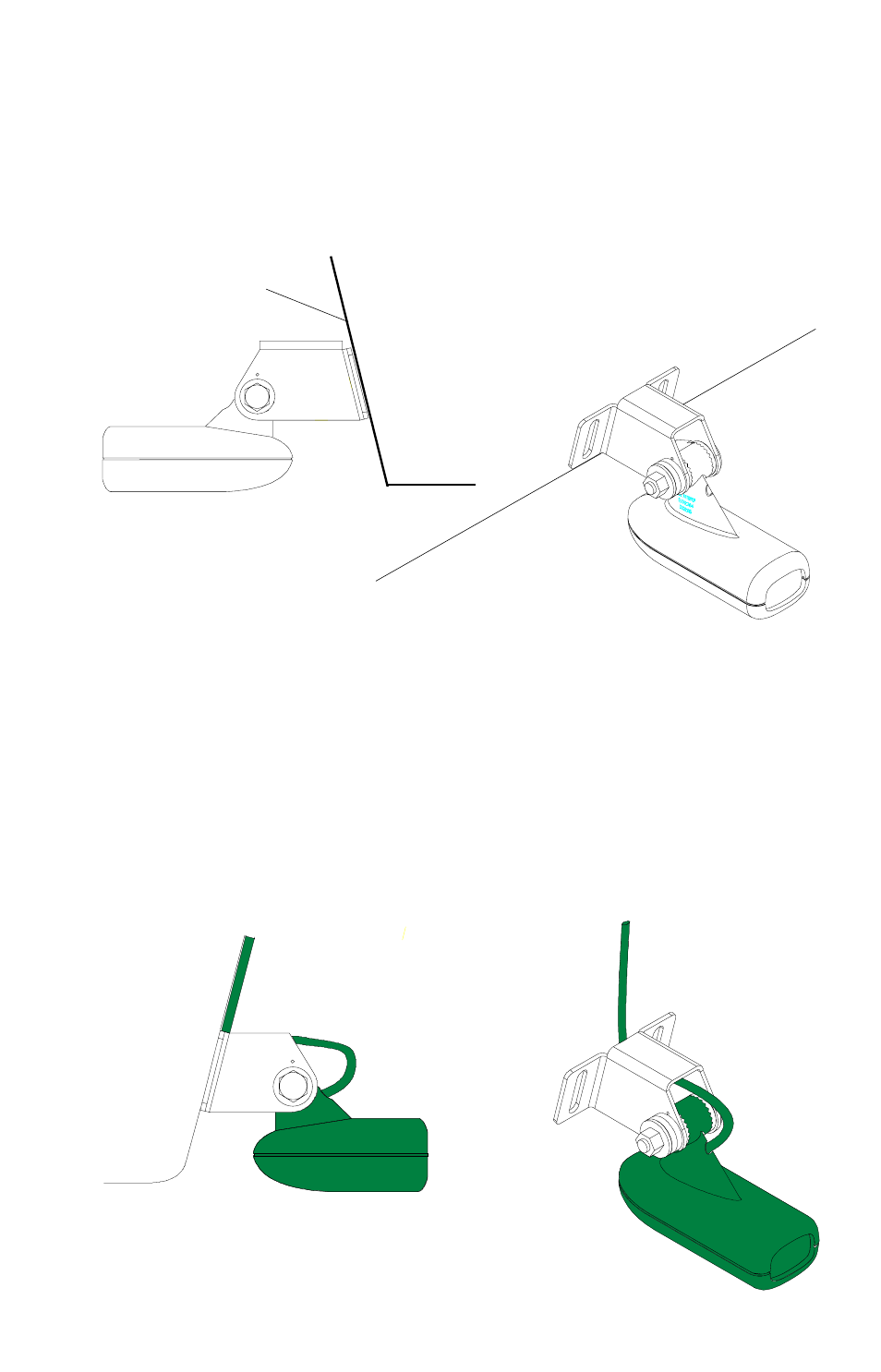

TRANSOM
SIDE VIEW
