SYSTEM COMPOSITION
LENS IN USE ON SCREEN
MAGNIFICATION
ON SCREEN FIELD
OF VISION (mm)
0.63X 20X 11.6
1X 32X 6.8
1.6X 51X 4.1
2.5X 80X 1.9
4X 128X 1.6
Note: by using the 0.50X additional lens between the microscope and the video-camera
(available as optional) the on screen magnification rate decreases by 50% and the field of
vision increases by 50%.
- The mentioned dimensions and final magnifications also depend on the hardware in use.
- The above mentioned magnifications and fields of vision have been calculated by using a 17” monitor with 1280X1024 resolution.

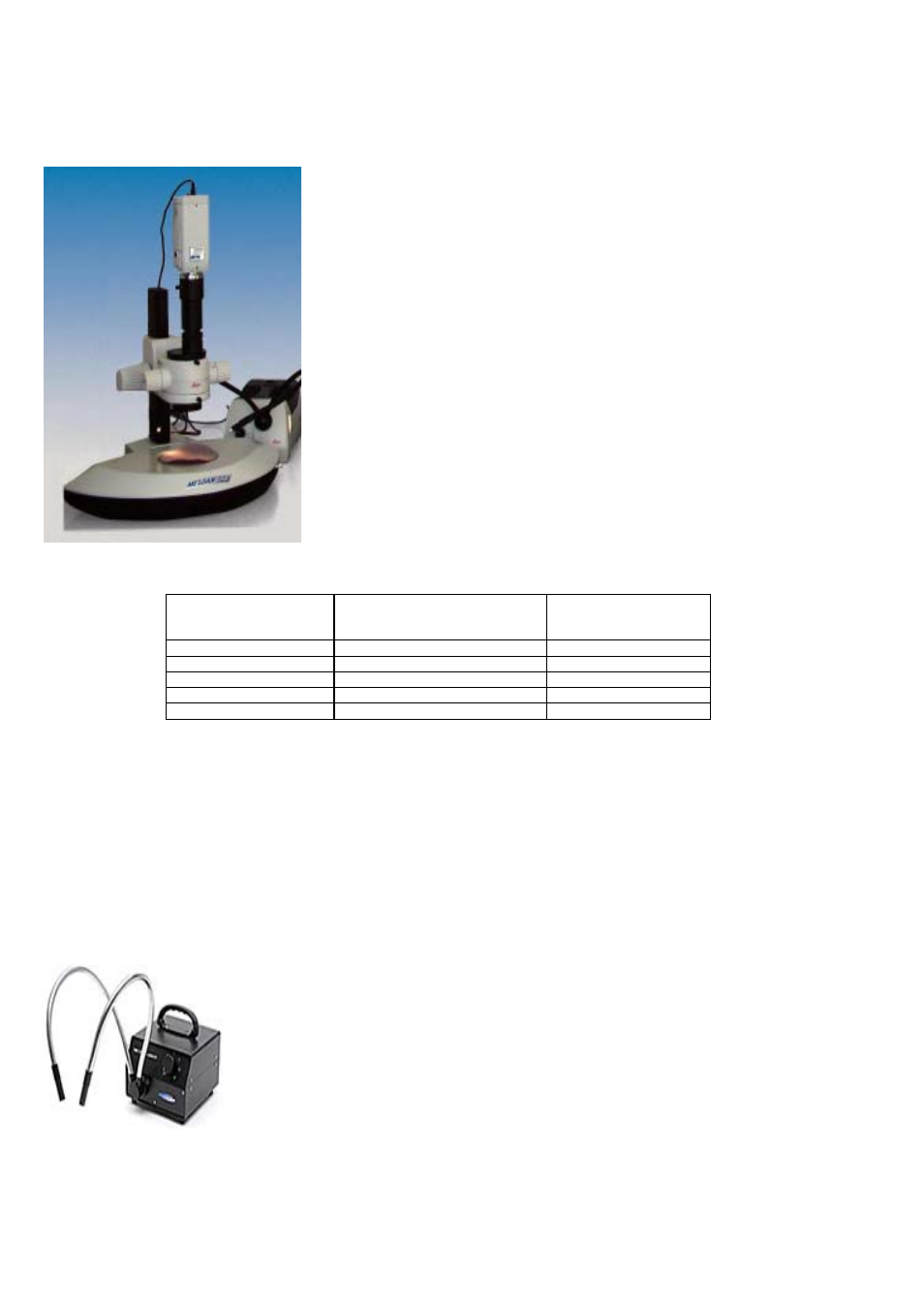

LEICA Stereo-Microscope for the analysis of fabrics, yarns
and mechanical parts like traveller, needles and spinnerets.
- High quality and precision Microscope
- Illuminated base. Adjustable light intensity and direction,
particularly suitable for the analysis of fabrics
- High precision focussing device
- Video-camera connector (oculars supplied as optional)
- 5 fixed focus lenses
150W OPTICAL FIBRE ILLUMINATION DEVICE (cold light)
with two 50 cm semi-rigid fibre optic goosenecks. Necessary for
a perfect illumination of a sample from different adjustable angles.
