• Read these instructions before use.
Also observe the instructions for the
circular saw, the safety instructions
in particular.
3
Note:

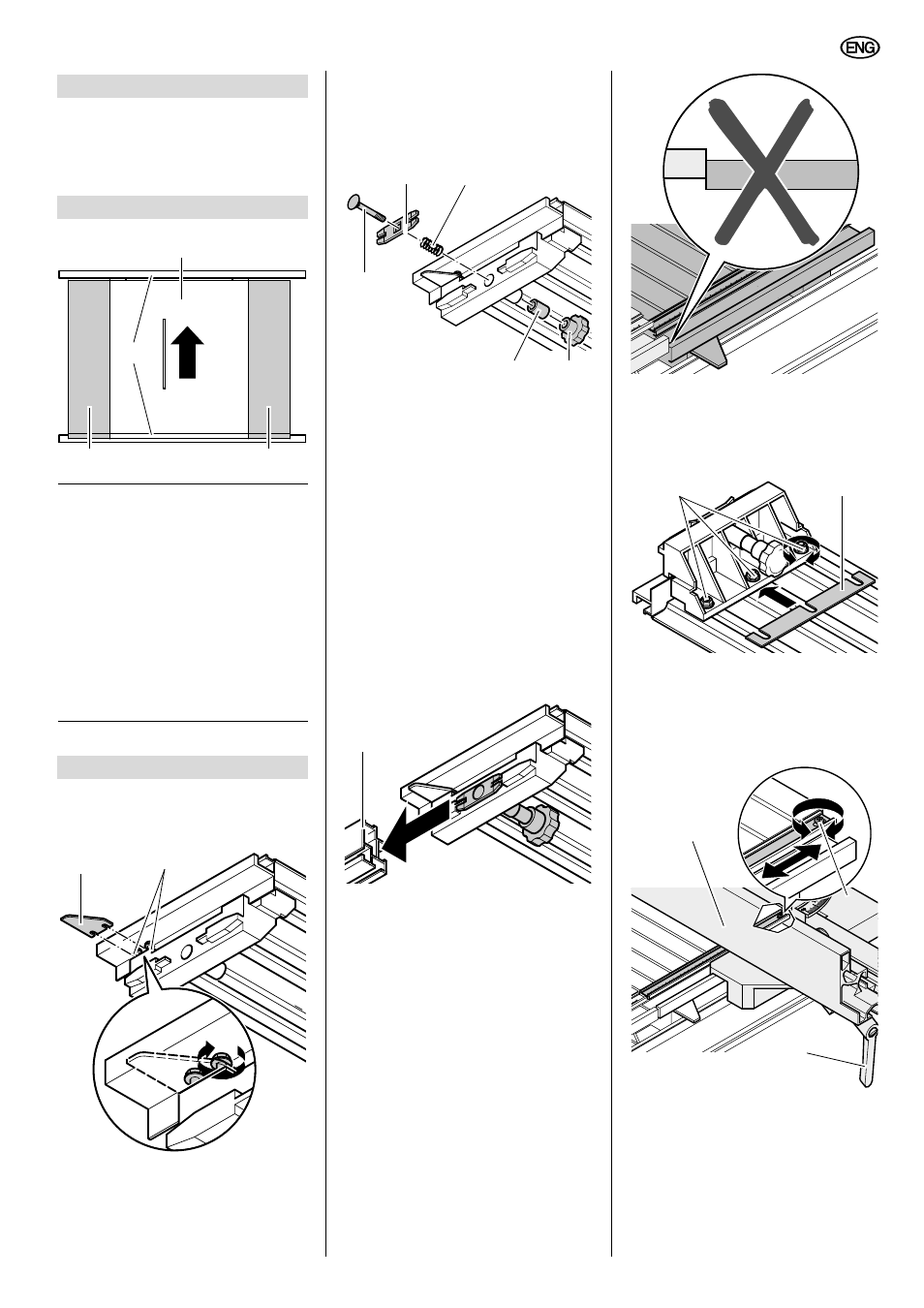

This table side extension is
intended for laterally extending the sup-
port area of the circular saw table (1). In
order to be able to install the table side
extension, the Base System Rails (2) fit-
ting the saw must be installed.
The table side extension can be fitted
either to the left (4) or right (3) hand side
of the saw table. The scale supplied are
intended for installation on the right hand
side, as the sliding carriage can be
intalled on the left hand side.
1.
Slide pointer (5) under the two
screws (6) as illustrated and tighten
both screws.
2.
Put both clamping plate (7) and coil
spring (8) on the carriage bolt (9) as
ilustrated: The offset ends of the
clamping plate must point towards
the carriage bolt's head.
3.
Insert carriage bolt (with fitted
clamping plate and coil spring) from
the outside into the hole of the side
extension's mounting rail.
4.
Put distance sleeve (10) from inside
on the carriage bolt and screw on
knurled thumb nut (11), but do not
yet tighten it.
5.
Repeat steps 2. though 4. on the
other end of the table side exten-
sion.
6.
Slide table side extension into the
two extrusions (12) of the base sys-
tem rails: The table side extension
must be pushed at both ends fully
against the saw table.
7.
Tighten knurled thumb nuts (11).
A
Caution!
The table side extension must
be exactly level with the saw table,
otherwise workpiece and rip fence
may get caught by the step or rock.
If the table side extension is too low:
Loosen screws (13) on the underside
and slide one or more shim plates (14)
below the table extension's mounting
rails. Tighten screws (13).
Scale alignment
1.
Position rip fence (15) at the approx-
imate centre of the table side exten-
sion and lock with ratchet lock lever
(16).
2.
Make trial cut: Place workpiece
against rip fence and make a cut.
3.
Measure the width of the workpiece
(from edge of cut to rip fence).
4.
Loosen fixing screw (17) of the table
side extension's scale.
1.
Please Read First!
2.
Mounting Locations
3.
Assembly
1
2
3
4
5
6
7
8
9
10
11
12
