36" GAS RANGE INSTALLATION INSTRUCTIONS
If the information in this manual is not followed exactly, a fire
or explosion may result causing property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
P/N 318201778 (0809) Rev. A
English - pages 1-8; Español - páginas 9-16
Notes - pages 17-19; Wiring Diagram - page 20
Note: Wiring diagram for this model is enclosed in this booklet (see page 20).
Printed in United States
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note: For
appliances
installed in the
state of
Massachusetts
see page 2.
Refer to your
serial plate for
applicable agency
certification

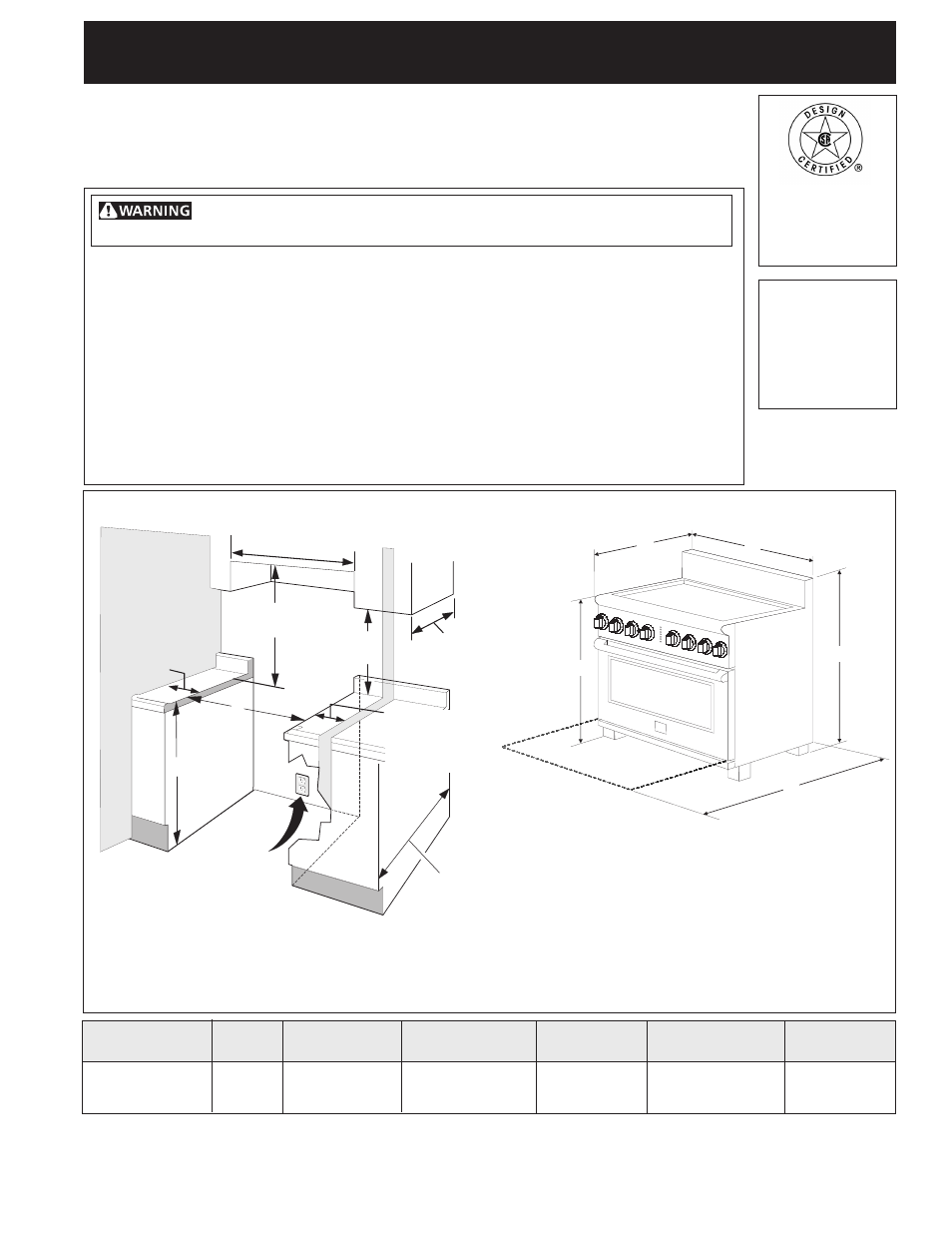

NOTE: 28" (71.1 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not less than
1/4" (0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet metal, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020"
(0.5 mm) copper.
34" (86.4 cm) minimum clearance when the cabinet
is unprotected.
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
A
B C
D
E
G
F
13" Max.
(33 cm Max.)
24" Min.
(61 cm Min.)
24 1/2" Max.
(62.2 cm Max.)
35 7/8" Min.
(91.1 cm Min.)
See
note
Grounded
Wall Outlet
location
WALL
WALL
If there is a wall:
7" Min.
(17.8 cm Min)
Left side
18" Min.
(45.7 cm Min.)
If there is a wall:
7" Min.
(17.8 cm Min.)
Right side
A. HEIGHT
41 5/8" (105.7 cm) Min.
42 5/8" (108.3 cm) Max.
B. WIDTH
35 7/8"
(91.1 cm)
C. DEPTH TO
FRONT OF RANGE
27 ½"
(69.9 cm)
D. HEIGHT OF
COOKTOP
35 3/4" (90.8 cm) Min.
36 3/4" (93.3 cm) Max.
E. DEPTH WITH
DOOR OPEN
47 3/8"
(120.3 cm)
F. HEIGHT OF
COUNTERTOP
36" (91.4 cm) Standard
35 3/4" (90.8 cm) Min.
G. MINIMUM
CUTOUT WIDTH
36 1/16"
(91.6 cm)
