Installation
a. Mount camera bracket BA-01, BA-03 (optional) on the wall. And screw it on the
wall firmly.
b. Mount Camera on the bracket
c. Connect a lens on the camera. Connect DC iris plug if using DC auto iris lens
d. Connect 12VDC power.
e. Connect BNC to testing monitor and adjust lens focus and zoom, view angle.
f. Connect CAT5 cable and do network connection. Refer to 3. Network Connection
g. Install IP searcher tool and assign IP address if you connect to multiple cameras.
See Manual for detail of IP99 searcher tool
Network Connection
This section tell you how to do different types of network connections to IP99

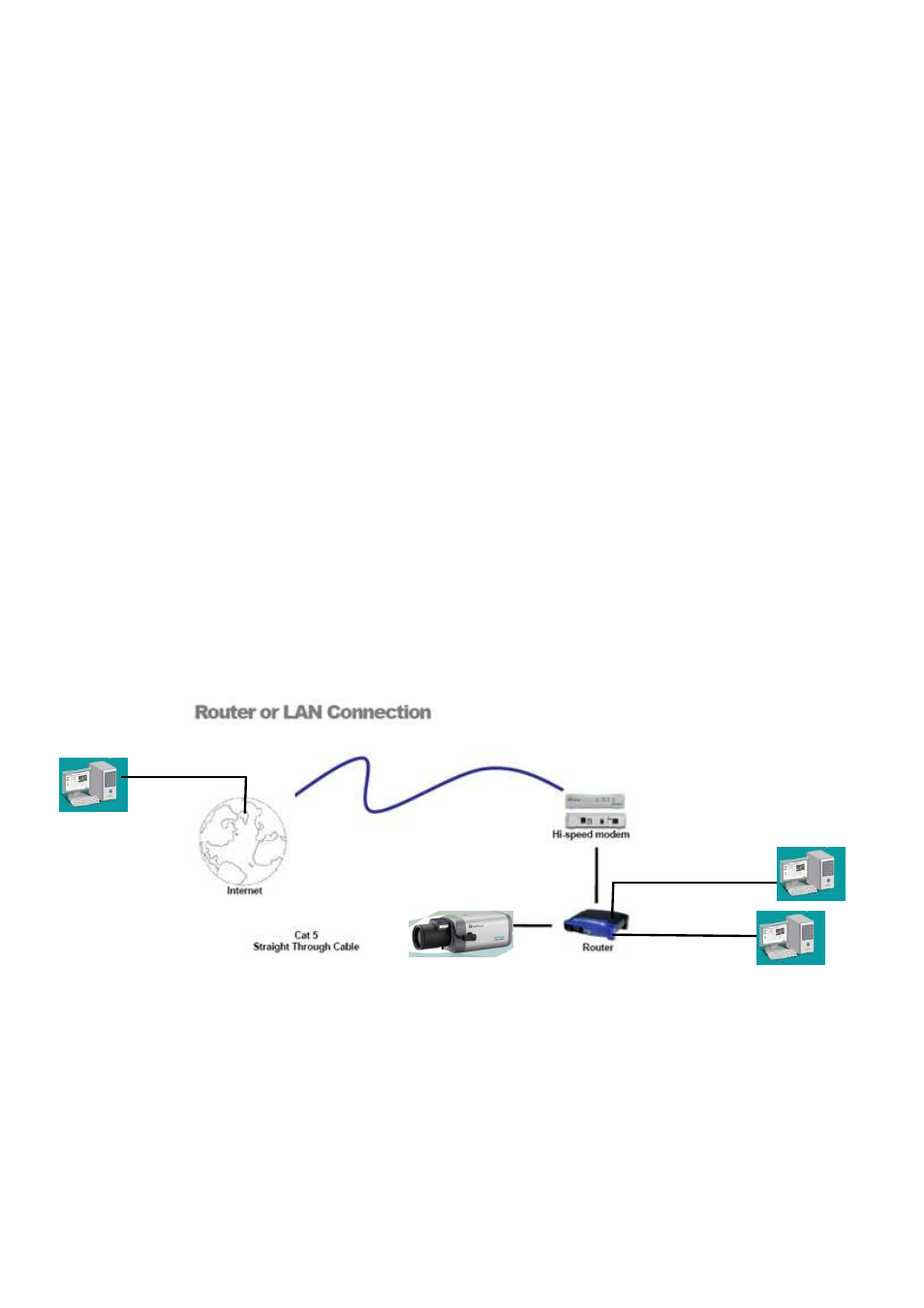

1. Router or LAN connection
This is the most common connection that allows multiples PC to see IP99 cameras/
encoders in pre-existing LAN through a router.
By doing port forwarding, you can view camera outside of internal LAN on internet.
