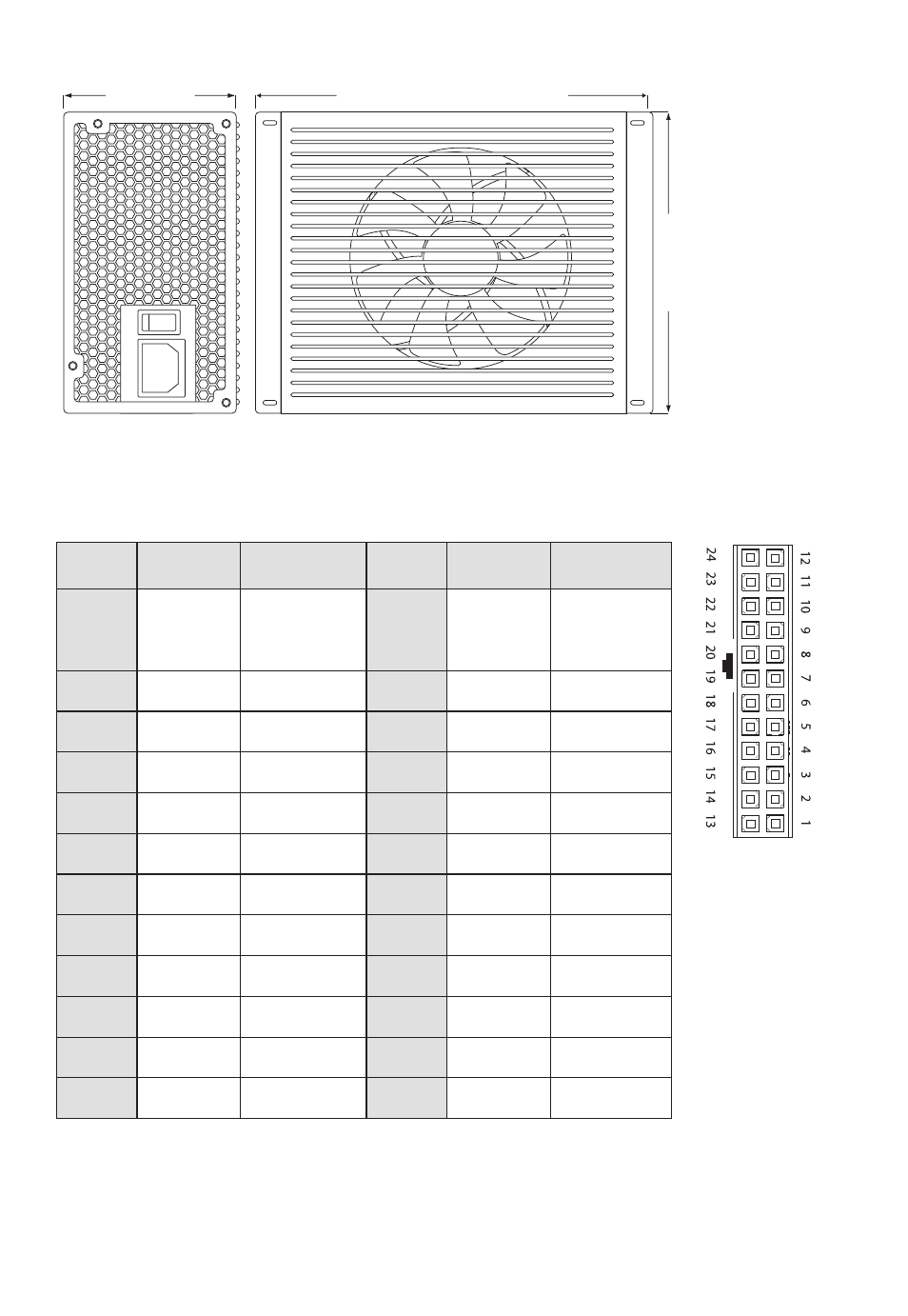

24 PIN ATX power connector
Pin Color Signal Pin Color Signal
1 Orange +3.3VDC 13
Orange
Brown
+3.3VDC
+3.3Vdef.
sense
2 Orange +3.3VDC 14 Blue -12VDC
3 Black COM 15 Black COM
4 Red +5VDC 16 Green PS_ON/OFF
5 Black COM 17 Black COM
6 Red +5VDC 18 Black COM
7 Black COM 19 Black COM
8 Grey PWR_OK 20
9 Violet +5VSB 21 Red +5VDC
10 Yellow +12VDC 22 Red +5VDC
11 Yellow +12VDC 23 Red +5VDC
12 Orange +3.3VDC 24 Black COM
8. DISTRIBUTION AND PIN ASSIGNMENT
7. DIMENSIONS
193mm / 180mm*
150mm
86mm
*1200W, 1000W, 850W: 193mm / 750W, 650W, 550W: 180mm
