- 10 -

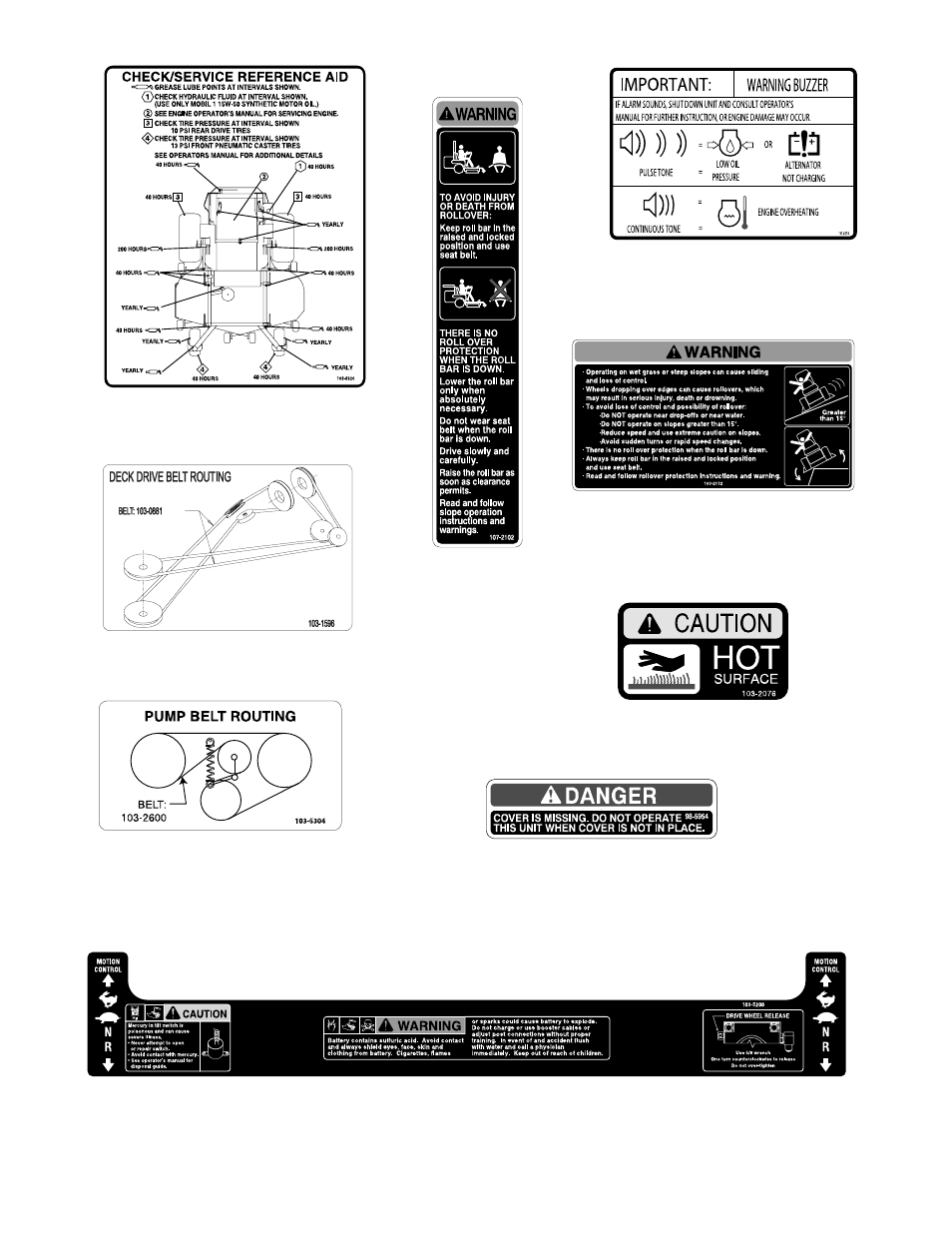

PART NO. 98-5954
LOCATION: - Under LH and RH Belt Shields

- Radiator Fan Pump Idler Arm

- On Engine Belt Guard behind Seat
- On Pump Mounting Plate behind Seat

PART NO. 103-2076
LOCATION: Top of Radiator Trim

Plate, LH & RH Sides

PART NO. 103-1596
LOCATION: Center Inside of the

Rear Bumper

PART NO. 103-3276
LOCATION: Engine Access Panel

behind seat, LH Side
next to Buzzer

PART NO. 103-5200
LOCATION: Top of console

PART NO. 107-2102
LOCATION: Inside Surface of

Upper Roll bar

PART NO. 107-2112
LOCATION: Top Center of

Floorpan

PART NO. 103-5304
LOCATION: Engine Access Panel Behind Seat

For Units with S/N 465,000 and Higher
PART NO. 103-6320
LOCATION: Bottom Side of Floorpan
